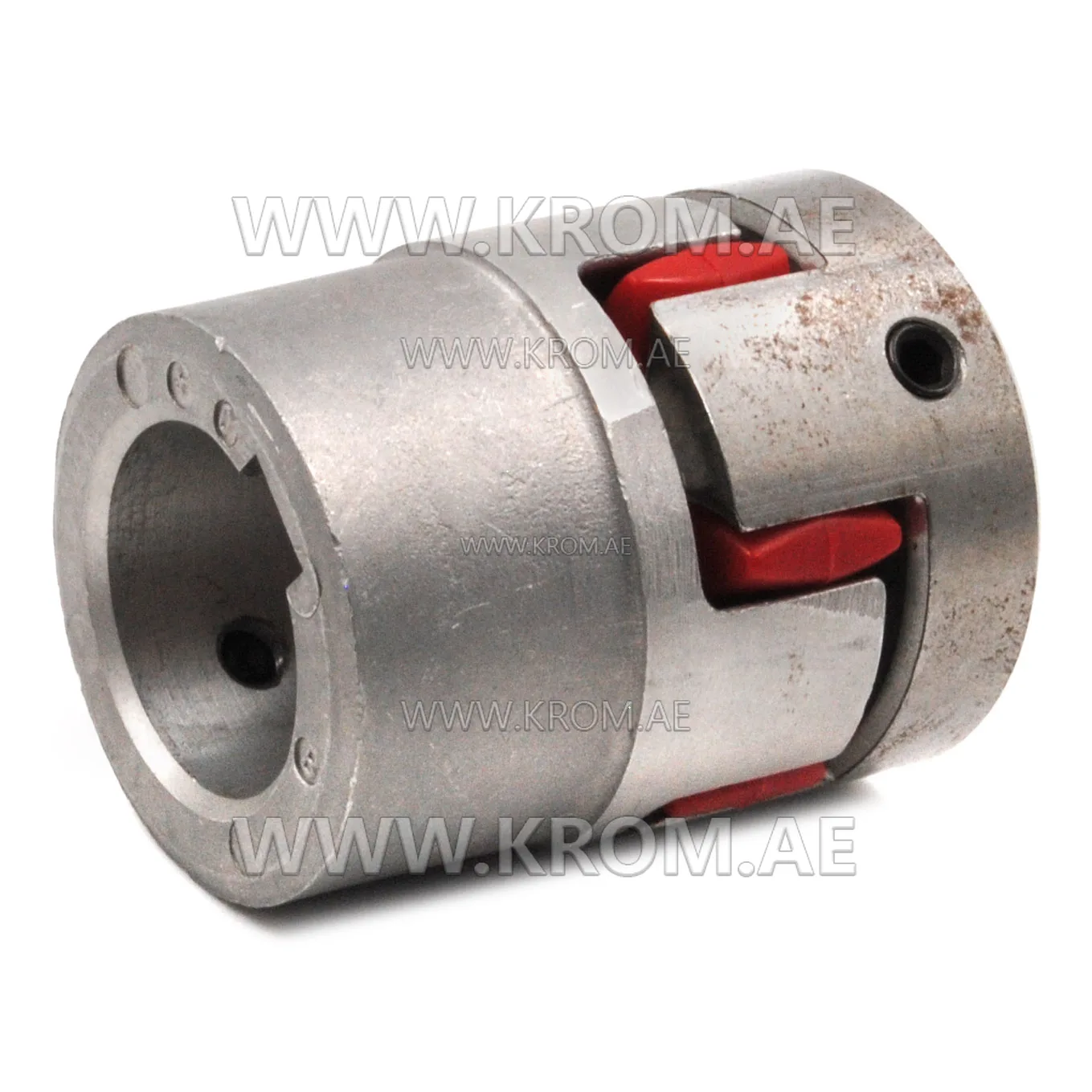

hp-Technik 12/24 coupling 0820668

This coupling, listed under the oil filters, coils, tubes & hoses section, is a mechanical component used in oil burner pump drives. Parts of this type connect the motor shaft to the oil pump shaft, transmitting torque from the motor to the pump. They also accommodate slight angular or parallel misalignment between the two shafts, reducing vibration and preventing undue stress on the pump bearings and shaft seal. The coupling is typically located between the motor and the pump, within the burner housing. When selecting a replacement coupling, the key parameters are the bore diameters for both the motor and pump shafts, the keyway dimensions (width and depth), and the overall length. The coupling must fit snugly on both shafts without play. Some designs use a rubber or elastomeric insert to dampen torque spikes; others are all-metal. The torque rating of the coupling must match or exceed the output of the motor at the pump’s operating speed. If the original coupling shows signs of wear – cracked rubber, elongated holes, or metal fatigue – it should be replaced promptly to avoid pump misalignment damage or loss of drive. During replacement, clean both shafts and check for burrs. Ensure the coupling halves are aligned axially and angularly; any misalignment will accelerate wear on the pump seal and motor bearings. The use of a flexible coupling of this type is standard on oil burners with a separate motor and pump assembly, and the correct bore and keyway combination is essential for reliable operation.
