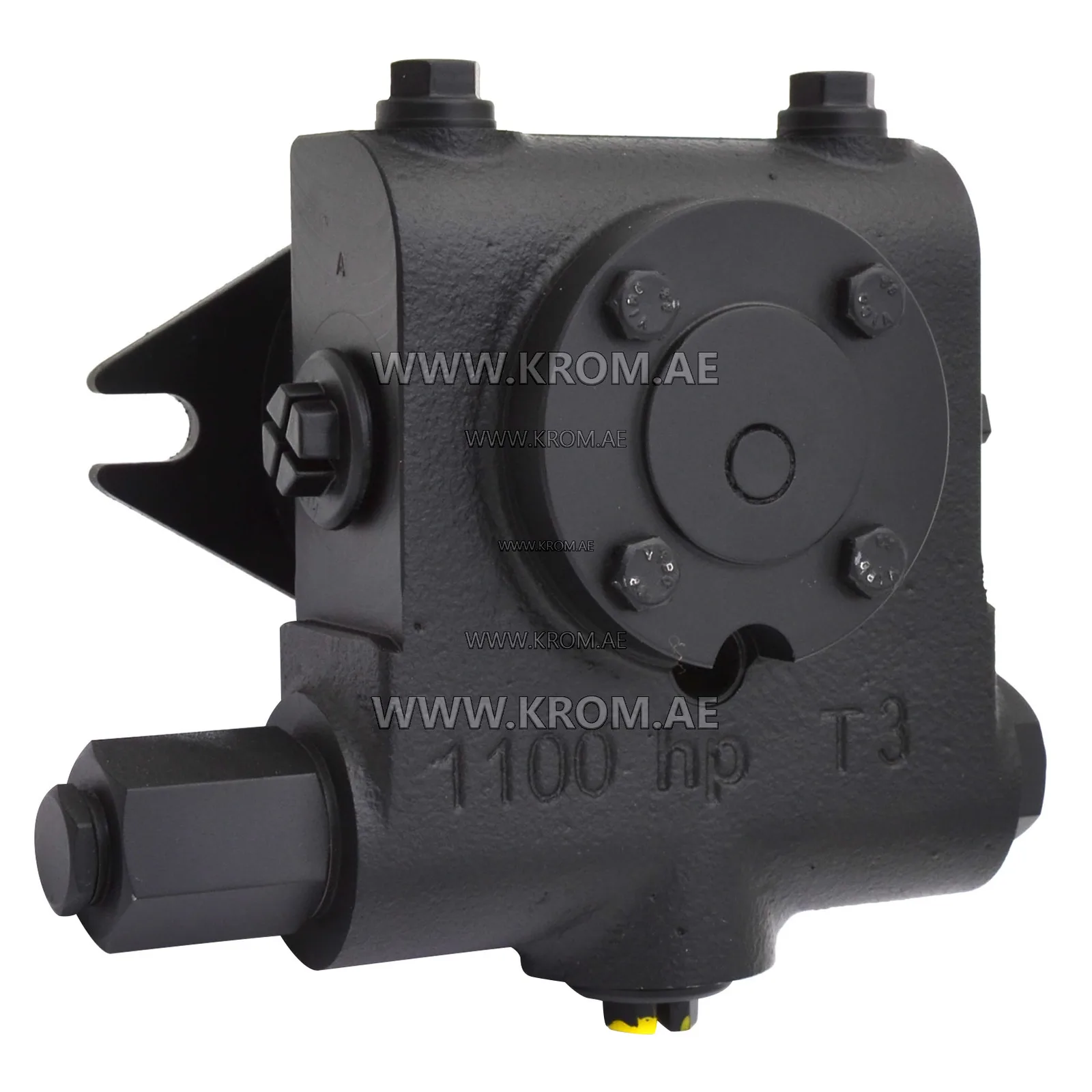

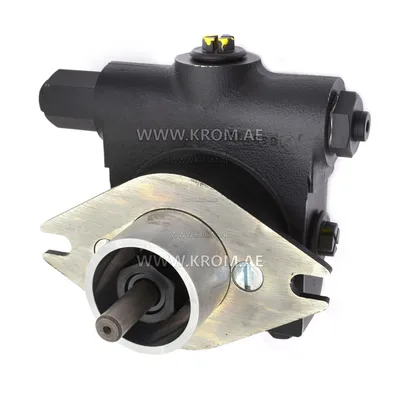

hp-Technik UHE-A3-P-I-4-20 oil pump

Technick UHE-A3-P-I-4-20 pumps are internal gear pumps. They have an integrated overflow valve. hpTechnick UHE-A3-P-I-4-20 pumps are intended for transporting heating oils. Where other media has to be transported, this must be verified by the manufacturer. Otherwise, the pump's service life may be decreased. hpTechnick UHE-A3-P-I-4-20 gear pump technical data: Flow: max. 1300 l/h Max. pressure (adjustable with integrated overflow valve): 40 bar Min. permitted pre-pressure: -0.4 bar Max. permitted pre-pressure: 5.0 bar Max. allowed pump RPM: 2800 min⁻¹ at 50 Hz Temperature: up to 150 °C Permitted test pressure for approvals: max. 60 bar with removed mech. seal (sealing area closed by jack)
