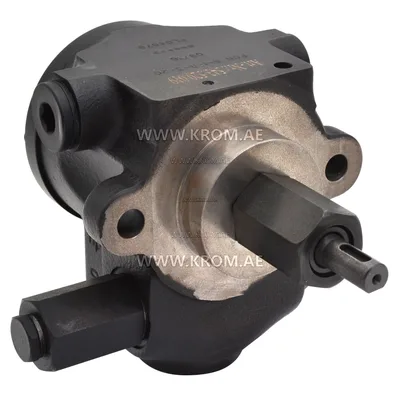

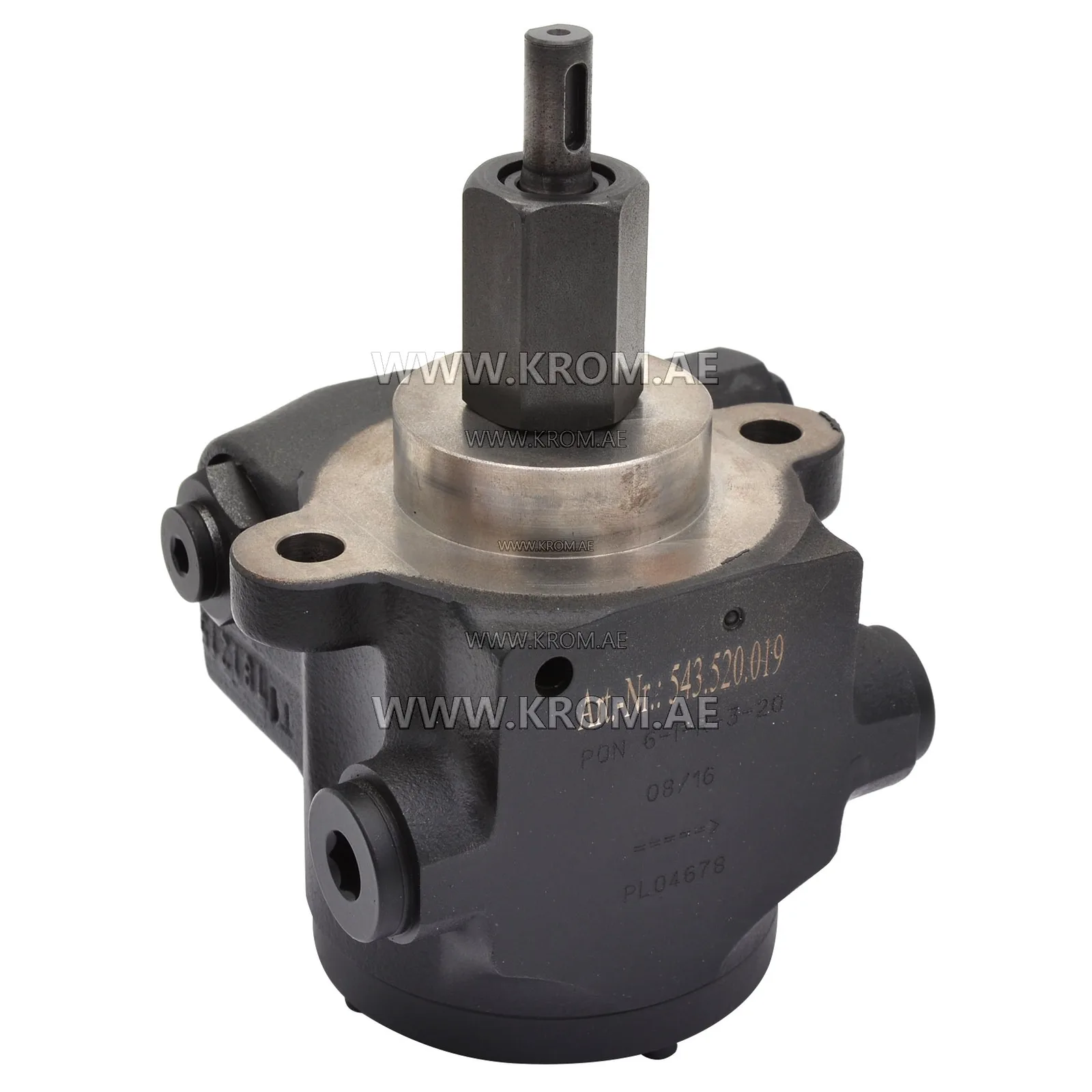

hp-Technik PON6-I-R-3-20 oil pump

The Technick PON6-I-R-3-20 gear pump with internal gearing of the PON series has a built-in safety (bypass) valve and an integrated filter for fuel liquids. Four types of pumps that supply between 90 l/h - 320 l/h, can generate 40 bar pressure at a rotation speed of 2800 rpm. The Technick PON6-I-R-3-20 pump can be used as a conveying pump or as burner pumps. The hpTechnick PON6-I-R-3-20 diesel pump can be used in either one linear or two linear systems according to the engraving from the direction of rotation of the pump. Technick PON6-I-R-3-20 technical data: Flow rate: 90–320 L/h Maximum pressure: up to 40 bar Minimum allowable pressure at suction port: -0.2 bar Maximum allowable pressure at suction port: 5.0 bar Maximum allowable rotational speed: 2800 RPM at 50 Hz Temperature: up to 150 °C Permissible test pressure: max. 60 bar with mechanical seal removed (when the shaft exit opening from the housing is sealed)
