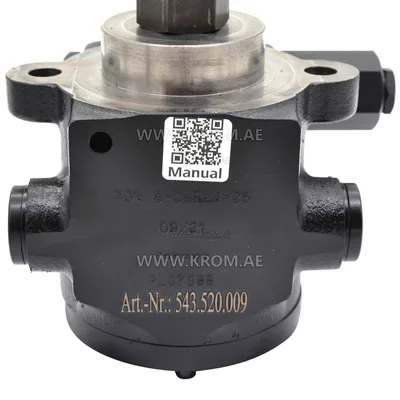

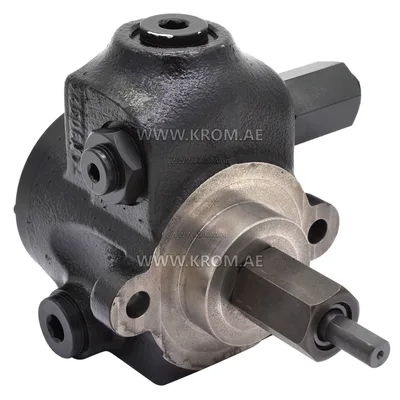

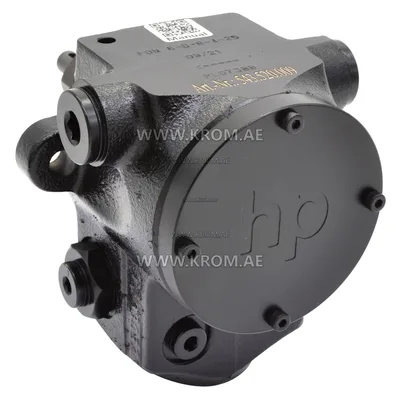

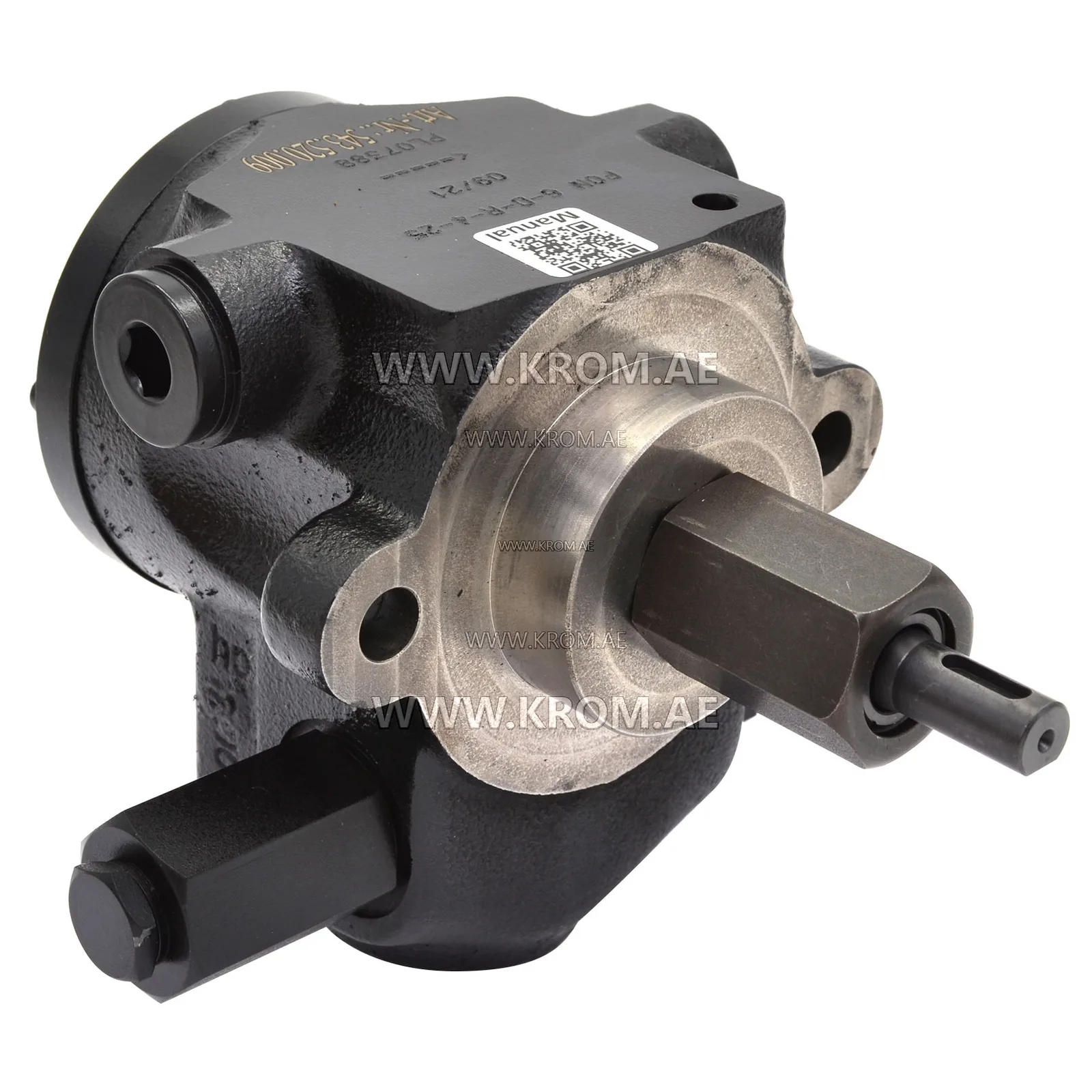

hp-Technik PON6-D-R-4-25 oil pump

The Technick PON6-D-R-4-25 oil pump designed for transferring liquid fuels such as diesel, fuel oil, and kerosene in heating systems and industrial applications. Technick PON6-D-R-4-25 gear pump technical data: Flow rate: up to 200 liters per hour at 30 bar Maximum pressure: 40 bar Nominal speed: 1400 to 2800 RPM, maximum 3500 RPM Rotation direction: clockwise (type D) Nozzle outlet position: right side (type R) Pressure stage: 4 (adjustable from 15 to 40 bar), factory set to 15 bar Shaft seal: mechanical face seal Connections: suction and return lines – ½ inch, nozzle outlet – ¼ inch, pressure gauge port – ⅛ inc Weight: approximately 5 kg The Technick PON6-D-R-4-25 pump equipped with an integrated pressure relief valve, bypass line, and fine fuel filter, ensuring reliable operation and flexible system integration. For optimal performance and durability, it is recommended to adhere to the specified technical parameters and use only fuel types approved by the manufacturer.
