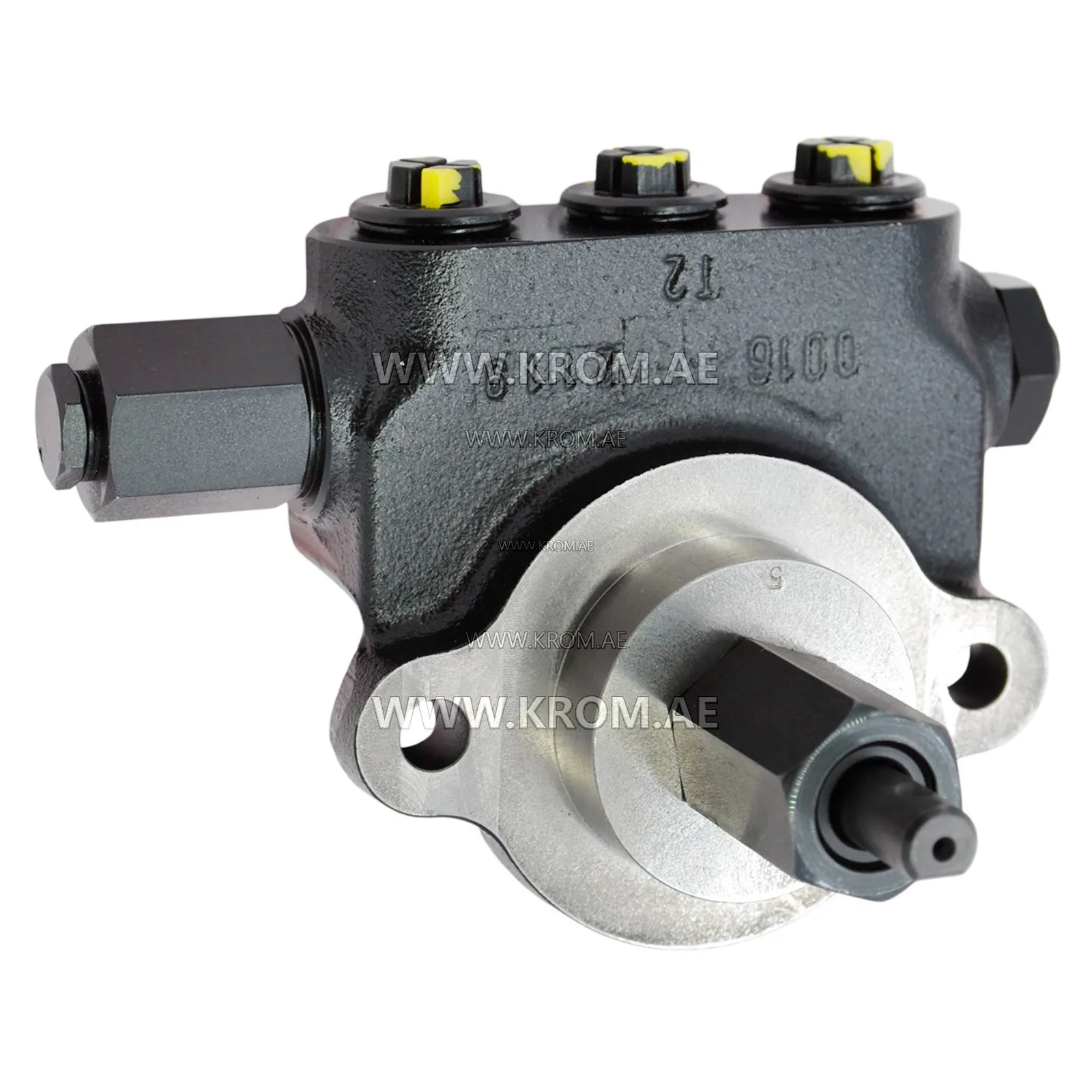

hp-Technik NVBGRP-I-4-20 oil pump

The hp-Technik NVBGRP-I-4-20 gear pump is a medium-capacity gear pump from the NV series, designed for transferring various types of liquid fuels, including diesel, fuel oil, and kerosene. It delivers a flow rate ranging from 200 to 600 liters per hour, depending on the rotational speed and settings of the integrated bypass valve. Technik NVBGRP-I-4-20 oil burner pump technical data: Shaft rotational speed: up to 3500 RPM. Operating pressure range: 1 to 40 bar. Mechanical shaft seal: mechanical face seal. Compatible fuels: diesel, fuel oil, kerosene, and other liquid fuels. Technik NVBGRP-I-4-20 oil pump features an integrated pressure regulating valve and bypass connection, providing flexibility in adjustment and operation. Due to its reliable design and high efficiency, the NVBGRP-I-4-20 is widely used in various burner systems and pumping stations.
