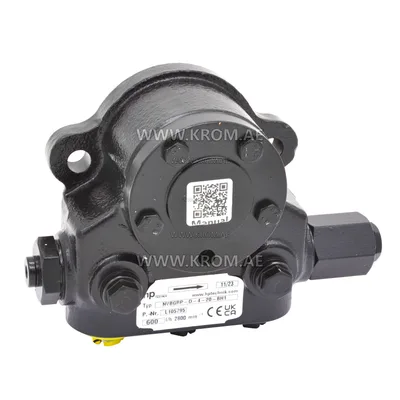

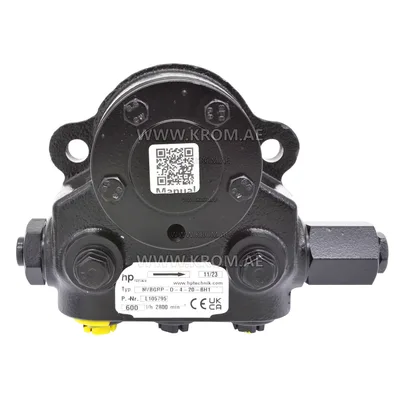

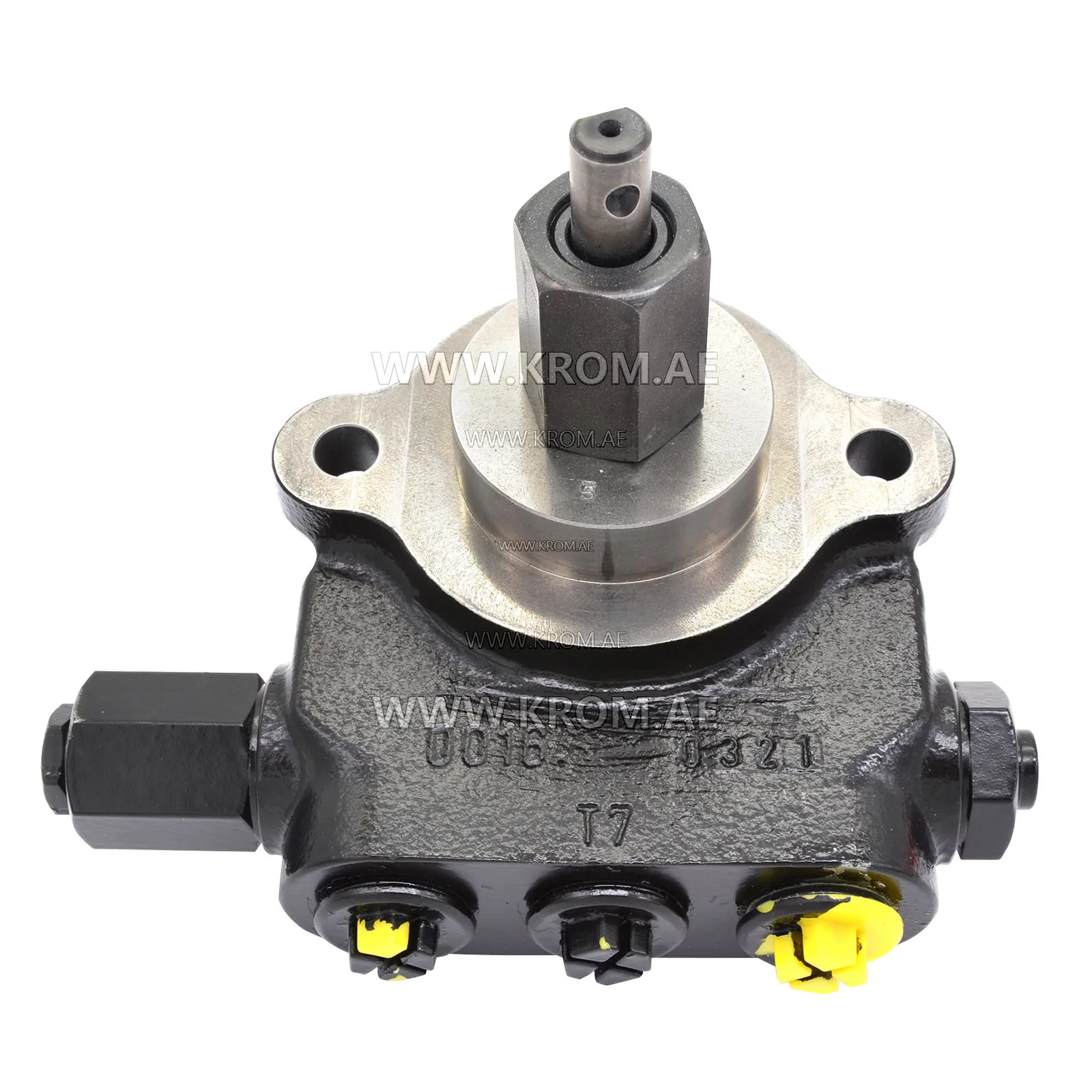

hp-Technik NVBGRP-D-4-20-BH1 oil pump

The hpTechnik NVBGRP-D-4-20-BH1 is a medium-capacity gear pump from the NV series, specifically designed for handling various types of liquid fuels, including diesel, heavy oil, and kerosene. It delivers a flow rate of up to 520 liters per hour at a pressure of 30 bar with a shaft speed of 2800 RPM. hpTechnik NVBGRP-D-4-20-BH oil burner pump features a built-in pressure regulating valve with an adjustable range from 15 to 40 bar, a bypass connection, and a mechanical shaft seal for enhanced reliability. The integrated electric heating system allows safe and efficient operation with heavier, more viscous fuels and ensures functionality in cold environments. hpTechnik NVBGRP-D-4-20-BH1 oil pump technical data: Shaft speed: 2800 RPM Rotation direction: Clockwise Pressure adjustment range: 15–40 bar Maximum flow rate: 600 L/h Shaft seal type: Mechanical seal Electric heating: Included Compatible fuels: Diesel, fuel oil, kerosene, and other liquid fuels
