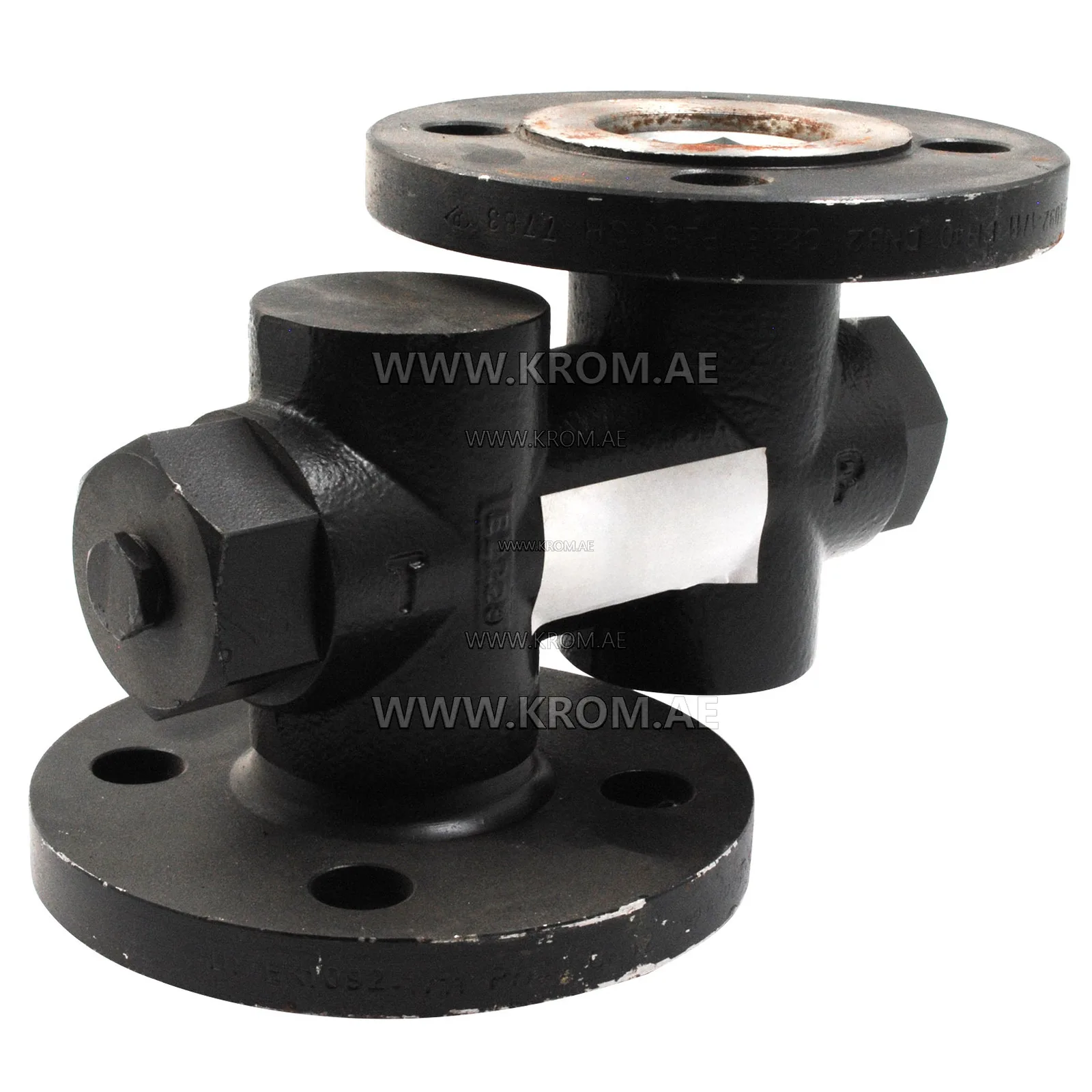

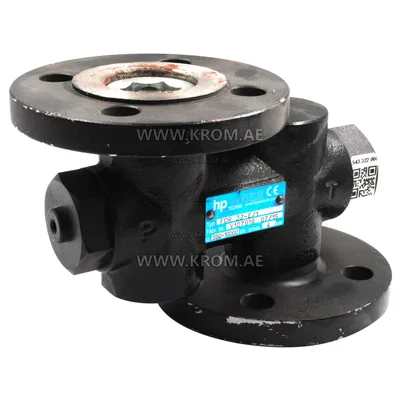

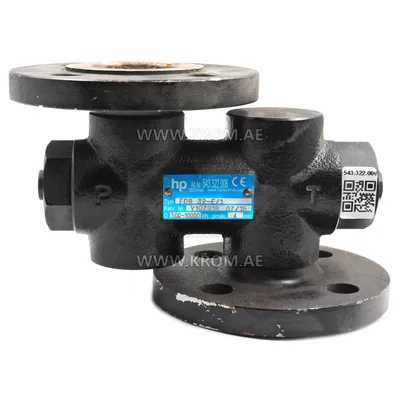

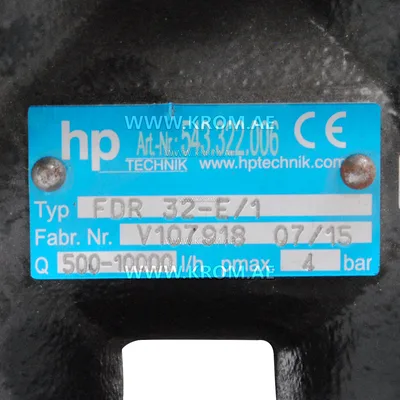

hp-Technik FDR 32-E/1 bypass oil valve

The hp-Technik FDR 32-E/1 is a bypass oil valve, catalogued under oil bypass valves. Parts of this type regulate oil flow and pressure within a burner's fuel supply system, typically in two-pipe installations where surplus oil returns to the tank. They work in conjunction with the oil pump and its integral solenoid valve, ensuring stable pressure at the nozzle and a clean cut-off when the burner control de-energises the solenoid. Selection of such bypass valves depends on system configuration — single or two-pipe operation — and on the required pressure range and connection threads. The valve must match the pump's rotation direction and shaft or mounting pattern if it is integrated into the pump body. While the valve itself has no moving gears or seals like a pump, its internal spring and seat are subject to wear or contamination that can cause pressure drift or leakage. A failing bypass valve may result in unstable flame, poor ignition, or oil drip after shutdown. When replacing a bypass oil valve, confirm the thread size and pressure setting with the original specification. The valve is not serviceable in the field; replace the complete unit if symptoms point to pressure regulation issues. Always inspect the associated oil filter and preheater (where used) before fitting a new valve, as debris or degraded oil can shorten its life.
