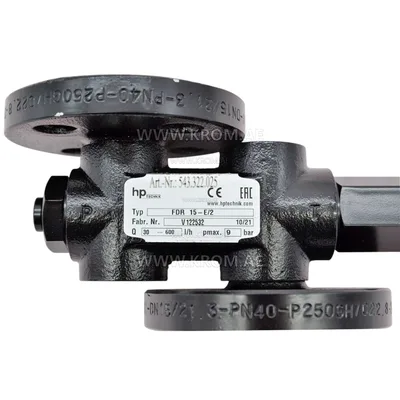

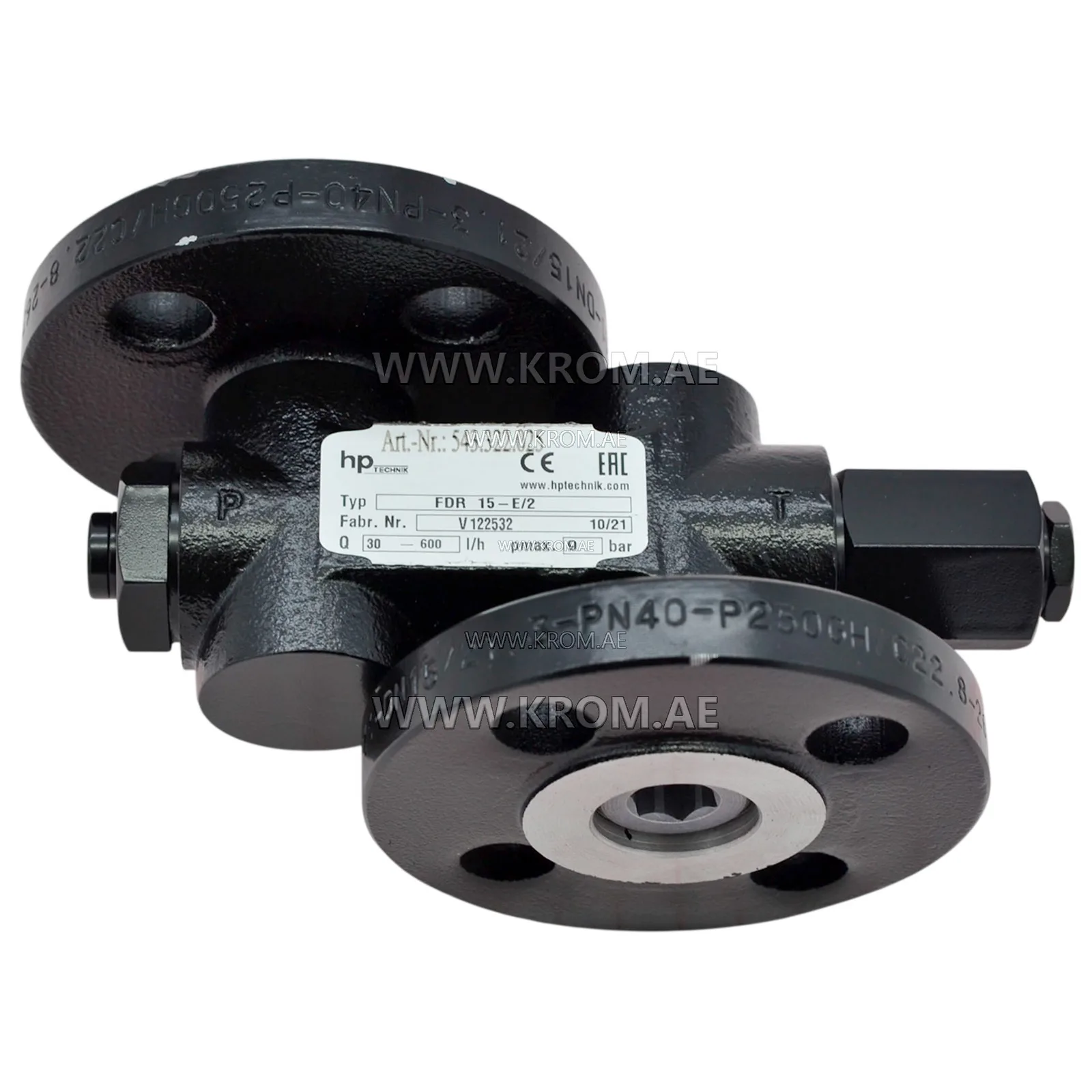

hp-Technik FDR 15-Е/2 bypass oil valve

The Technick FDR 15-Е/2 bypass valve controls excess pressure in fuel and hydraulic systems. When pressure in line "P" rises above the set point, the valve opens and redirects fluid to return line "T". It includes an adjustment screw and five spring options for flexible pressure settings. Compact and reliable, the bypass valve is ideal for systems with variable flow conditions. Technick FDR 15-Е/2 bypass valve technical data: Temperature: max. 150 °C Maximum viscosity: 450 mm2/sec Ambient temperature: -10 to + 90 °C Storage temperature: -10 to + 60 °C Supply: 30-600 l/h Maximum pressure: 9 bar
