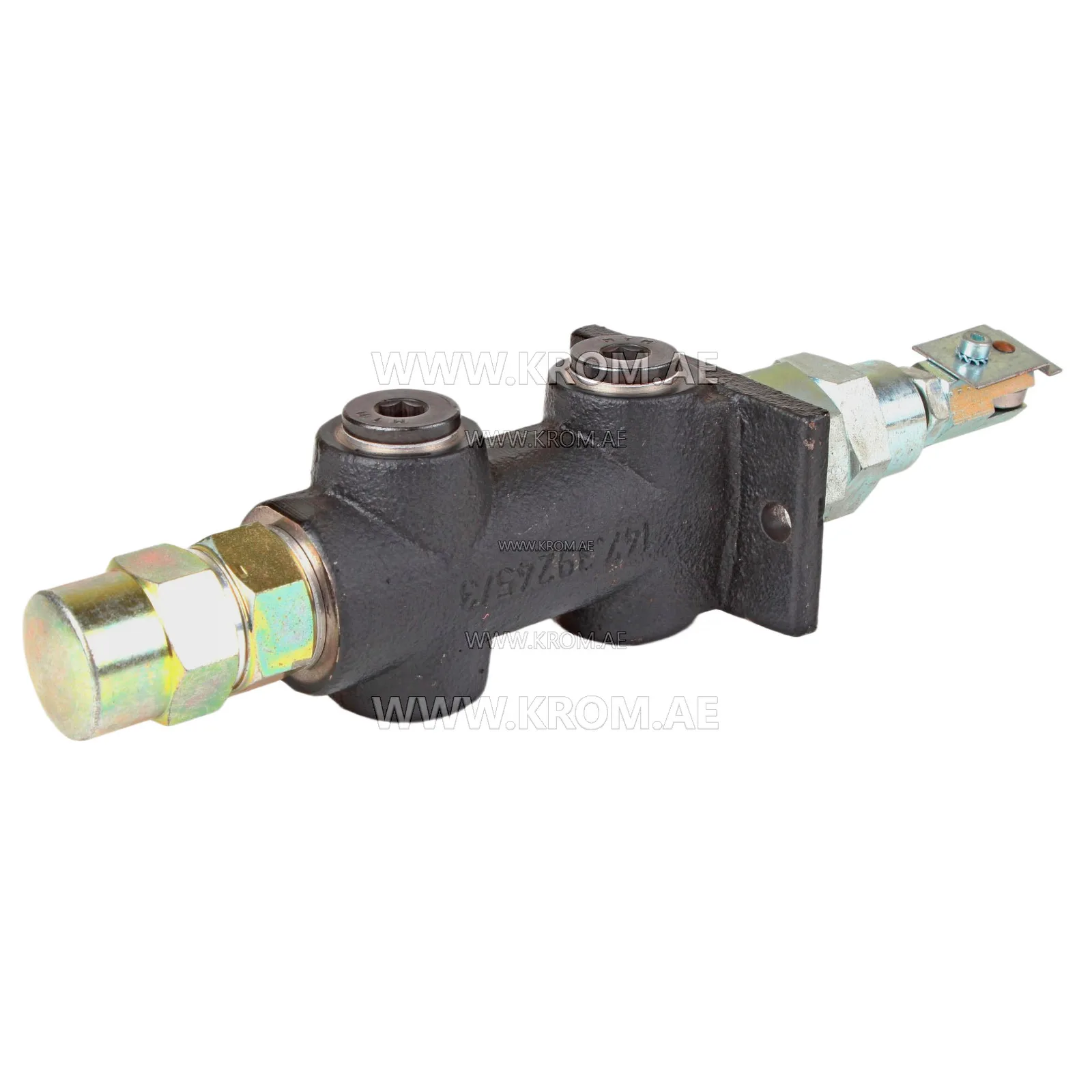

hp-Technik DRV18EL pressure regulator

Pressure regulator hp-Technik DRV18EL (art: 3250202) is a device for regulating pressure and flow in the system. It is equipped with a modulating kit and is designed for use with maximum fuel pressure up to 25 mbar. Features of this regulator include a cast iron (GGG 40) body, which has increased impact resistance, as well as a spring-loaded piston valve that limits pressure. Pressure adjustment is carried out by turning the adjusting screw, and there is the possibility of flow adjustment in counterflow from the burner. The operating temperature range of this regulator is from -10 to +90 °C. For spring setting, a value in the range from 2 to 25 mbar can be selected. Connection is made using G 3/8" thread. If you need more detailed information about the pressure regulator hp-Technik DRV18EL, it is recommended to contact VITAPROM specialists.
