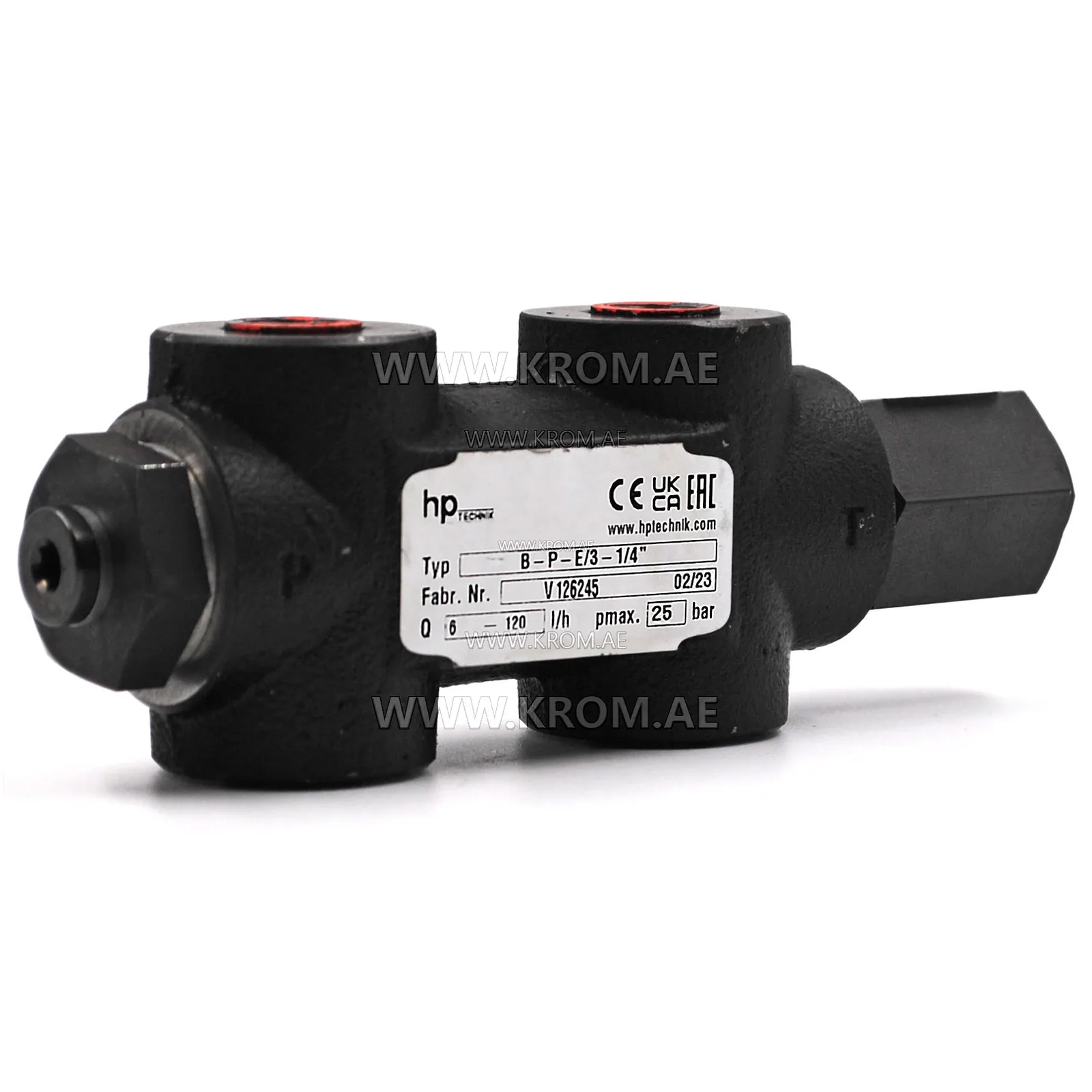

hp-Technik B-P-E/3 bypass oil valve

Technick B-P-E/3 bypass valve maintain system pressure by diverting excess fuel to the return line. Pressure is adjusted via a screw and one of five spring options. The spring-loaded piston design ensures stable and reliable operation. Technick B-P-E/3 bypass valve technical data: Temperature: max. 150 °C Maximum viscosity: 450 mm2/sec Ambient temperature: -10 to + 90 °C Storage temperature: -10 to + 60 °C Supply: 6-120 l/h Maximum pressure: 25 bar
