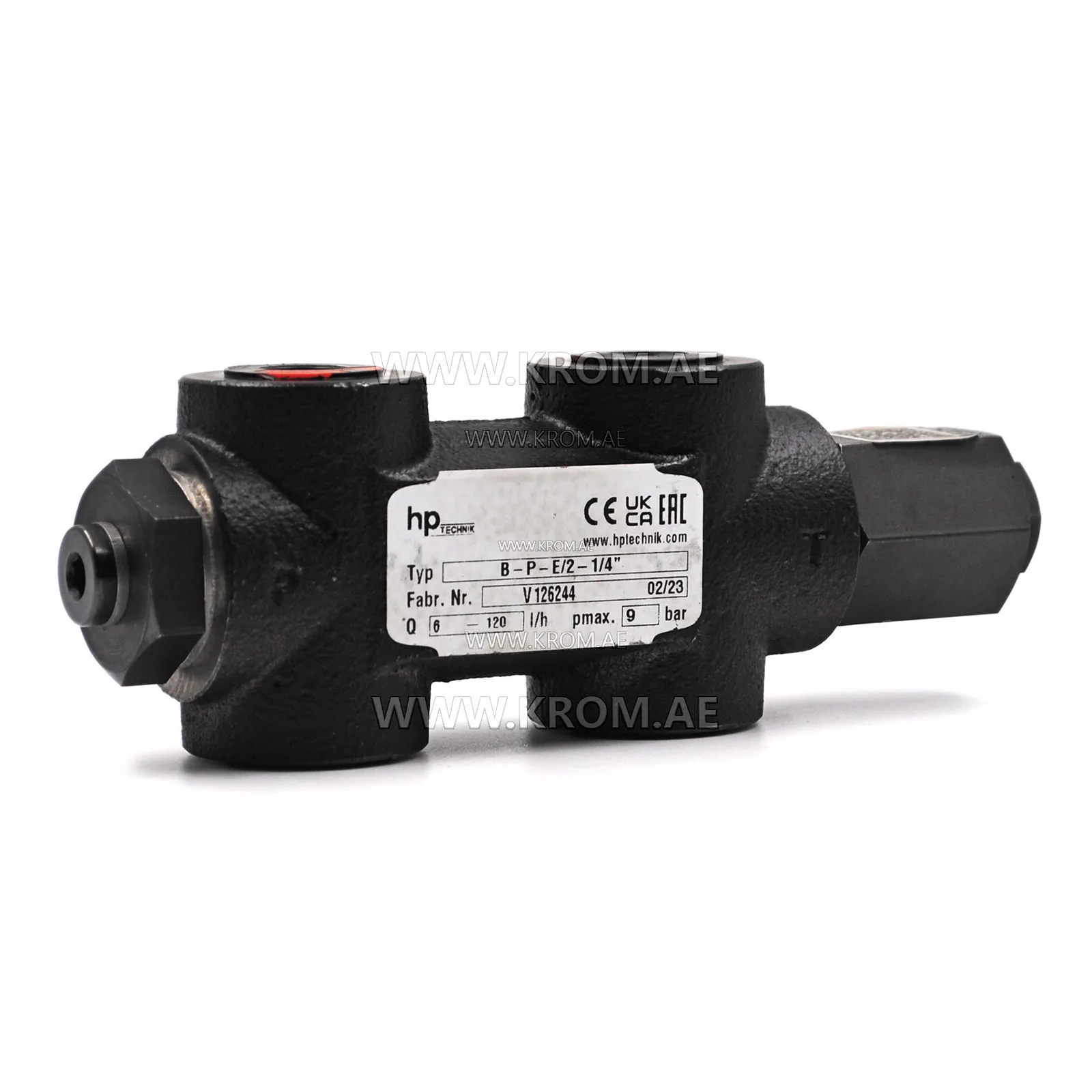

hp-Technik B-P-E/2 bypass oil valve

Technick B-P-E/2 bypass valves are designed to stabilize or limit system pressure. They feature an adjustment screw and interchangeable springs with five pressure settings, allowing flexible pressure range control. Technick B-P-E/2 bypass valves that regulate pressure in the discharge line "P" by continuously diverting excess fluid to the return line "T" leading back to the fuel tank. The desired pressure is set via the internal spring tension, ensuring consistent and reliable system performance. Technick B-P-E/2 bypass valve technical data: Temperature: max. 150 °C Maximum viscosity: 450 mm2/sec Ambient temperature: -10 to + 90 °C Storage temperature: -10 to + 60 °C Supply: 6-120 l/h Maximum pressure: 9 bar
