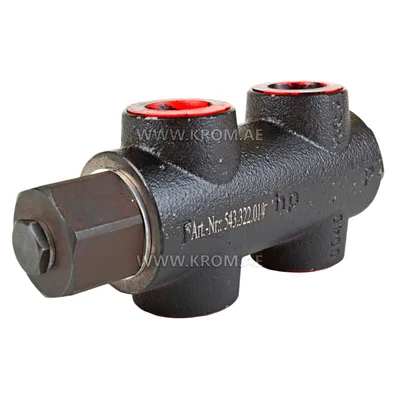

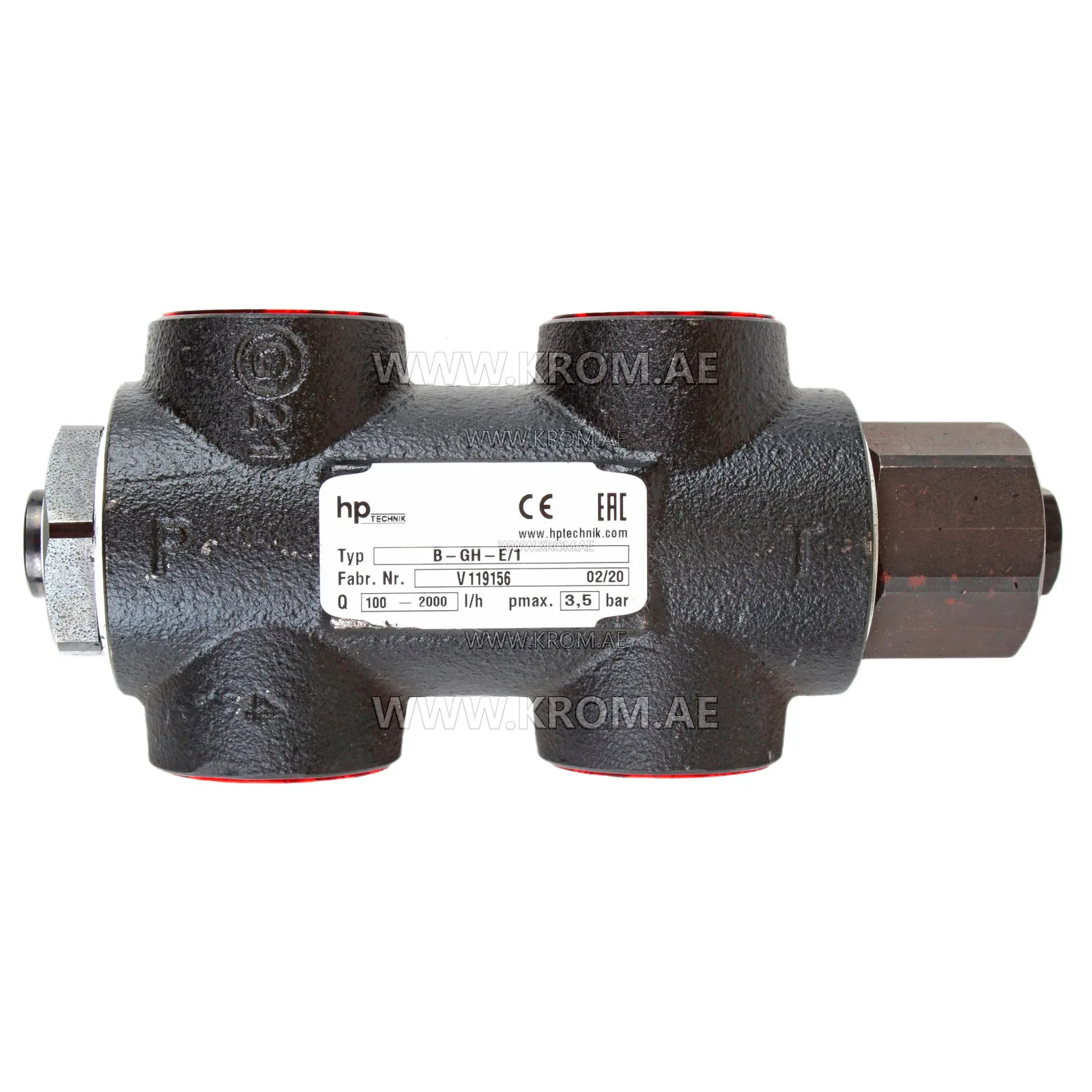

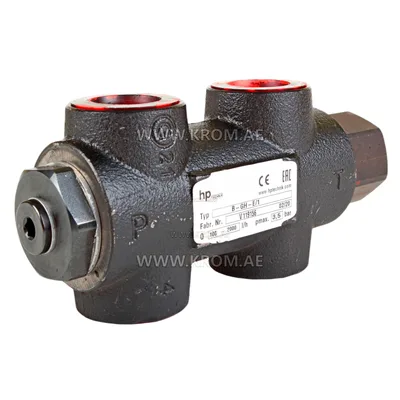

hp-Technik B-GH-E/1 bypass oil valve

The hp-Technik B-GH-E/1 bypass oil valve is listed under the manufacturer code B-GH-E/1 and catalogue article 543.322.019. This item is a bypass oil valve, a component found in the oil supply line of pressure-jet oil burners. Parts of this type are installed between the oil pump and the nozzle, or on the return line to the tank, to regulate flow and pressure when the burner is not firing. In a typical oil system, the pump draws fuel from the tank and delivers it under pressure to the nozzle. The bypass valve allows excess oil to return to the tank or to circulate internally, maintaining the correct pressure at the nozzle for a stable flame. Such valves work in conjunction with the oil pump, nozzle, and the burner’s solenoid valve (if integral). They may be adjustable or preset, and are selected by their connection threads, pressure range, and compatibility with single- or two-pipe systems. When replacing a bypass oil valve, verify the thread size and type (e.g., G1/8, G1/4), the pressure rating, and whether the valve is designed for single-pipe or two-pipe operation. Check the orientation of the inlet and bypass ports. Typical failure modes include a stuck plunger or seat that prevents proper bypass, leading to pressure spikes or a dribbling nozzle, and worn seals that cause external leaks. The part itself does not contain data on specific dimensions, pressure settings, or appliance compatibility; consult the system’s existing valve or the burner manual for correct matching.
