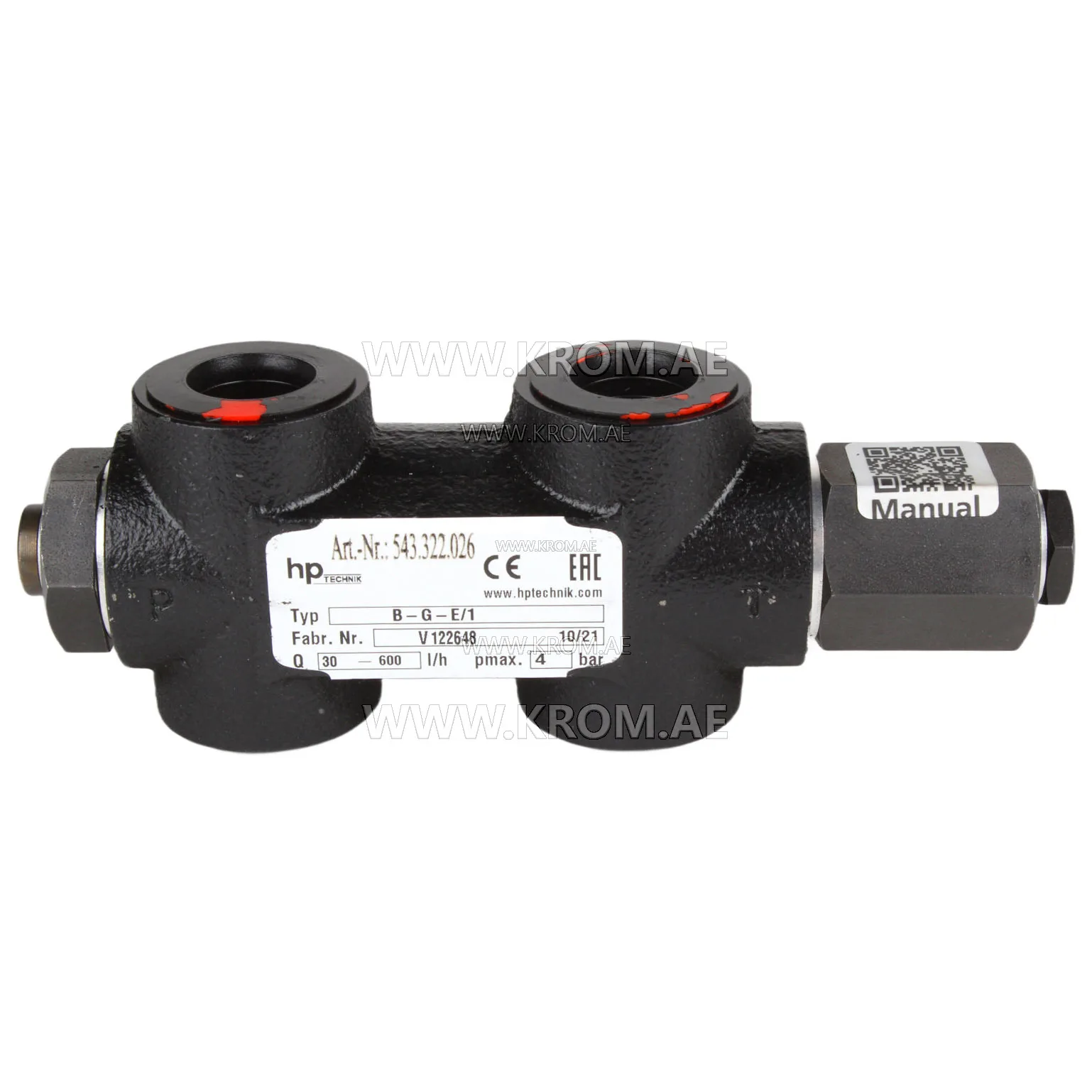

hp-Technik B-G-E/1 bypass oil valve

Technick B-G-E/1 bypass valves designed to maintain or limit system pressure. The bypass valves have an adjustment screw. By selecting the appropriate spring (there are five pressure levels), the pressure range can be changed. Bypass valves are spring-loaded piston valves whose valves limit or maintain pressure in the discharge line at «P» by continuously discharging liquid. This pressure is adjusted using the built-in spring. The excess amount of liquid flows into the return line, «T» to the fuel tank. Technick B-G-E/1 bypass valve technical data: Temperature: max. 150 °C Maximum viscosity: 450 mm2/sec Ambient temperature: -10 to + 90 °C Storage temperature: -10 to + 60 °C Supply: 30-600 l/h Maximum pressure: 4 bar
