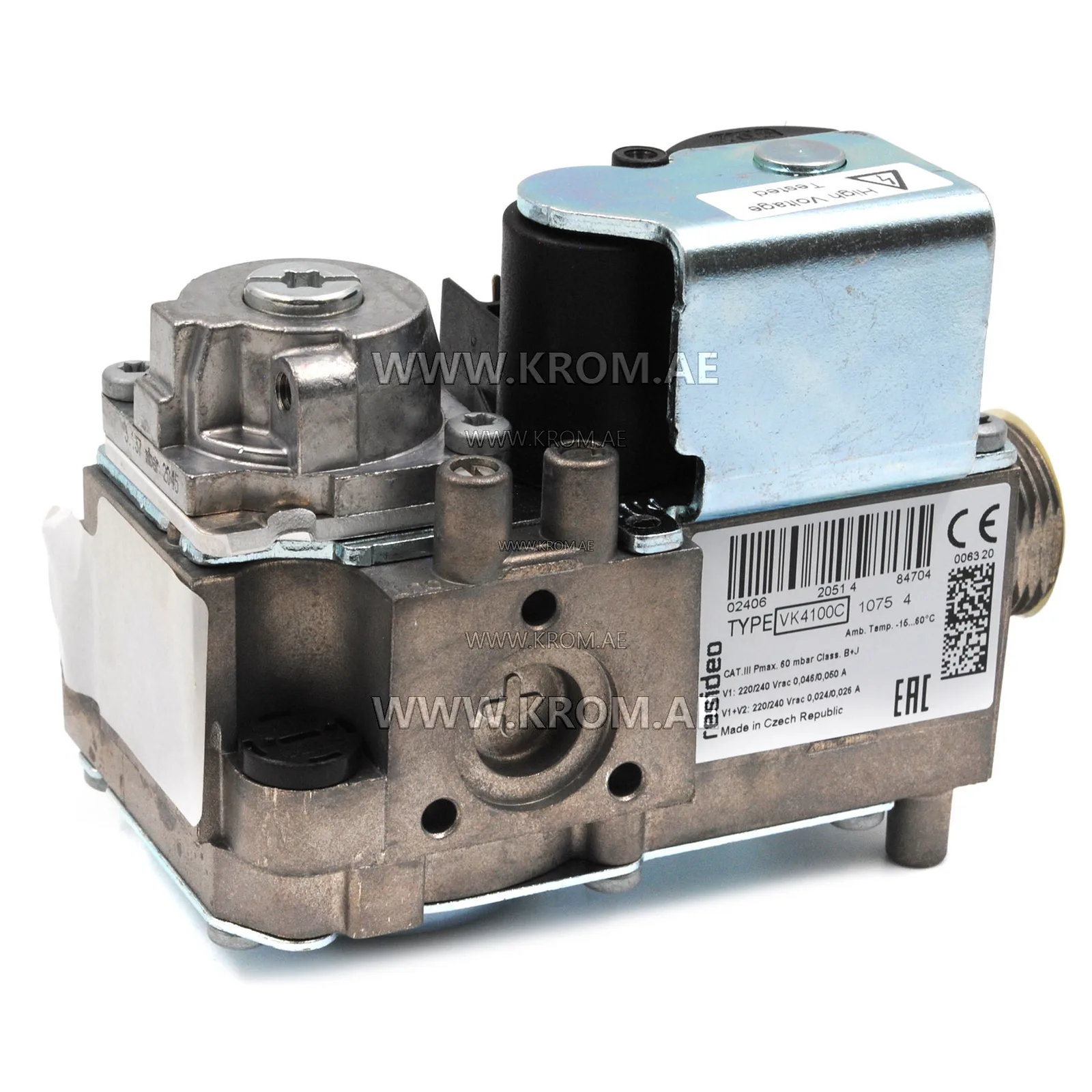

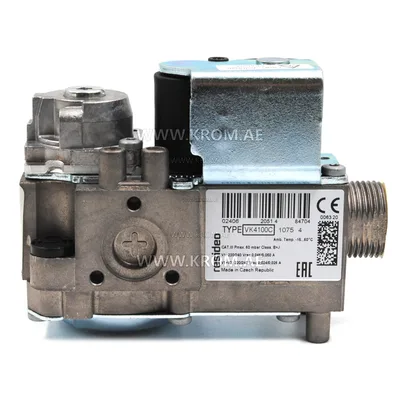

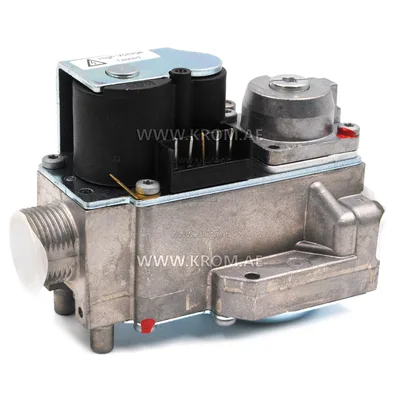

Honeywell VK4100C1075 gas valve
The Honeywell VK4100C1075U gas valve is an important part of the burner control and ignition system, providing safe ignition, flame control and gas flow control for both the pilot and main burner. This component includes the VK4100C 1075 gas valve itself and a specialized ignition regulator that is connected to it. This valve is also installed on boilers FERROLI PEGASUS 45-56, Pegasus (Old) 23-32: 39816420, 36802910. The Resideo VK4100 C1075U combined gas valve has a standard housing and provides various settings, such as: Pressure regulation using a servo. Regulation via the throttle valve. Smooth ignition using SOFTLITE technology. Regulation of the mixture of gas and air in a ratio of 1:1. Electric two-level regulator. Smooth regulation with amplification for various control methods. The VK4100C1075B compact gas unit includes two electrical devices: one for controlling the main valve and the other for controlling its position. This gas solenoid valve is capable of working with three types of gases: heating, natural and liquefied. General characteristics Maximum inlet pressure: 60 mbar Input and output are suitable for flanged connection Screen: On the input side Back pressure: 1st valve: 50 mbar; 2nd valve: 0 mbar Pressure valve: Top for measuring inlet and outlet pressure Gas connection: Inlet: 3/4" External outlet: diameter 18.6 Ambient temperature: -15 ... 60°C Compression fitting: 4 mm Management functions Softlite pressure: 5 mbar (-3.5/+0 after 1.5 sec.) adjustable Maximum working pressure: 45 mbar Control flow rate: 0.1 m3/h (min) of air at a pressure drop of 9 mbar Capacity (by air): 3.1 m3/h with a pressure drop of 3 mbar Leakage requirements: According to EN126 Standard working conditions The ambient temperature is maintained at 20°C. The aperture has a size of 2.8 millimeters. The ambient pressure is 1013 millibars. Information on gas consumption is provided in cubic meters per hour. The nominal pressure of the inlet gas is 25 millibars, with dry air and a temperature of 20 °C. The output pressure is recorded using a sensor connected to a pipe with a diameter of 1/2 inch, 10 times the diameter, through a short hose with a length equal to 5 pipe diameters. The Honeywell VK4100C1075 valve operates at rated voltage and is installed in an upright position. General provisions The VK4100C 1075B gas control unit combines all the safety and burner control functions in one reliable system. The inlet and outlet of the valve have a diameter of 18.6 millimeters and can be connected via flanges. There are different models of this valve with different closing force: B + J, B + C, B + B. A built-in fine-mesh filter is installed at the inlet of the VK4100 C 1075 CVI valve, which is not intended for cleaning. An additional output filter can be added if necessary. There are holes at the bottom of the valve for mounting to the installation. There are options for gas valves with side outlet for both the main and pilot burner. However, such a side outlet can only be used with a flanged burner manifold. In addition, there is a connection for pilot gas with a diameter of 4 mm at the outlet of the VK4100C1075 combined valve ignition system. It is also possible to install pressure measuring fittings using silicone tubes with a diameter of 4 or 6 mm. There is also a choice of different types of electrical connections, such as connecting to the ignition regulator via a connector or using a plug-in rectifier unit for standard DBI ignition systems. In addition, it is possible to choose options for operation at a voltage of 24V for joint use with other ignition regulators, with the exception of regulators of the S4565/S4585 series. The principle of operation As for the principle of operation, VK4100C 1075B gas regulators use a positive feedback system, which means that the main valve automatically closes when there is no power supply or gas pressure is exceeded. The system includes a pressure servo controller and a pressure relief valve that work together. When the power supply is supplied, the gas passes through the servo controller and opens the main valve. The system then maintains a constant pressure by regulating the operation of the main valve. This guarantees a stable output pressure, even with changes in the input pressure.
