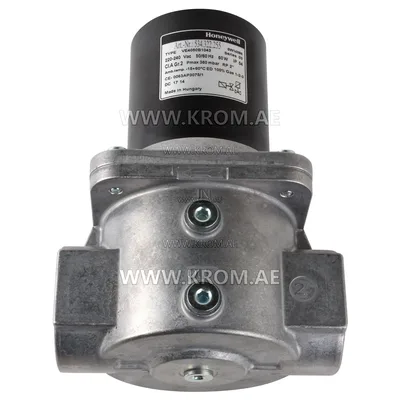

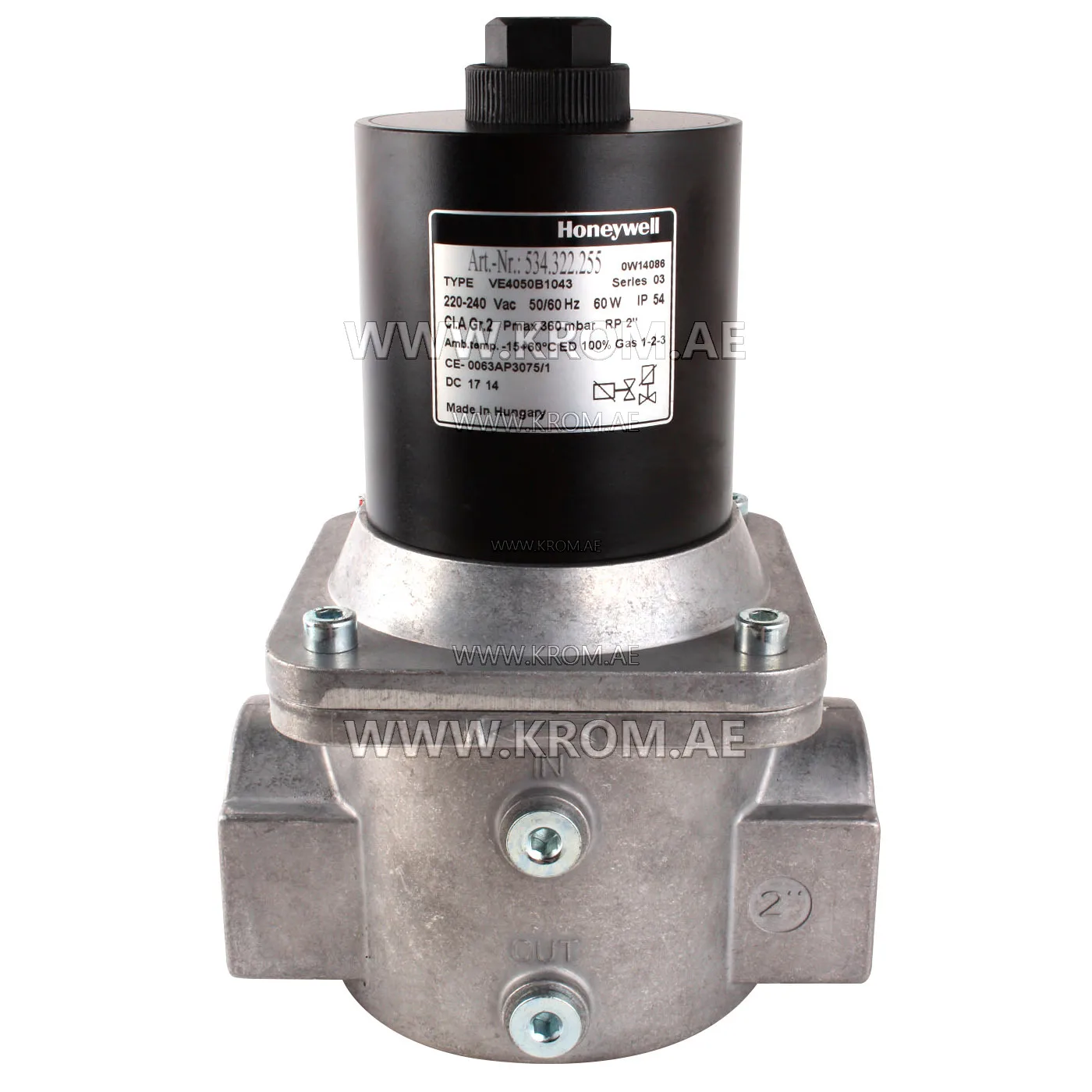

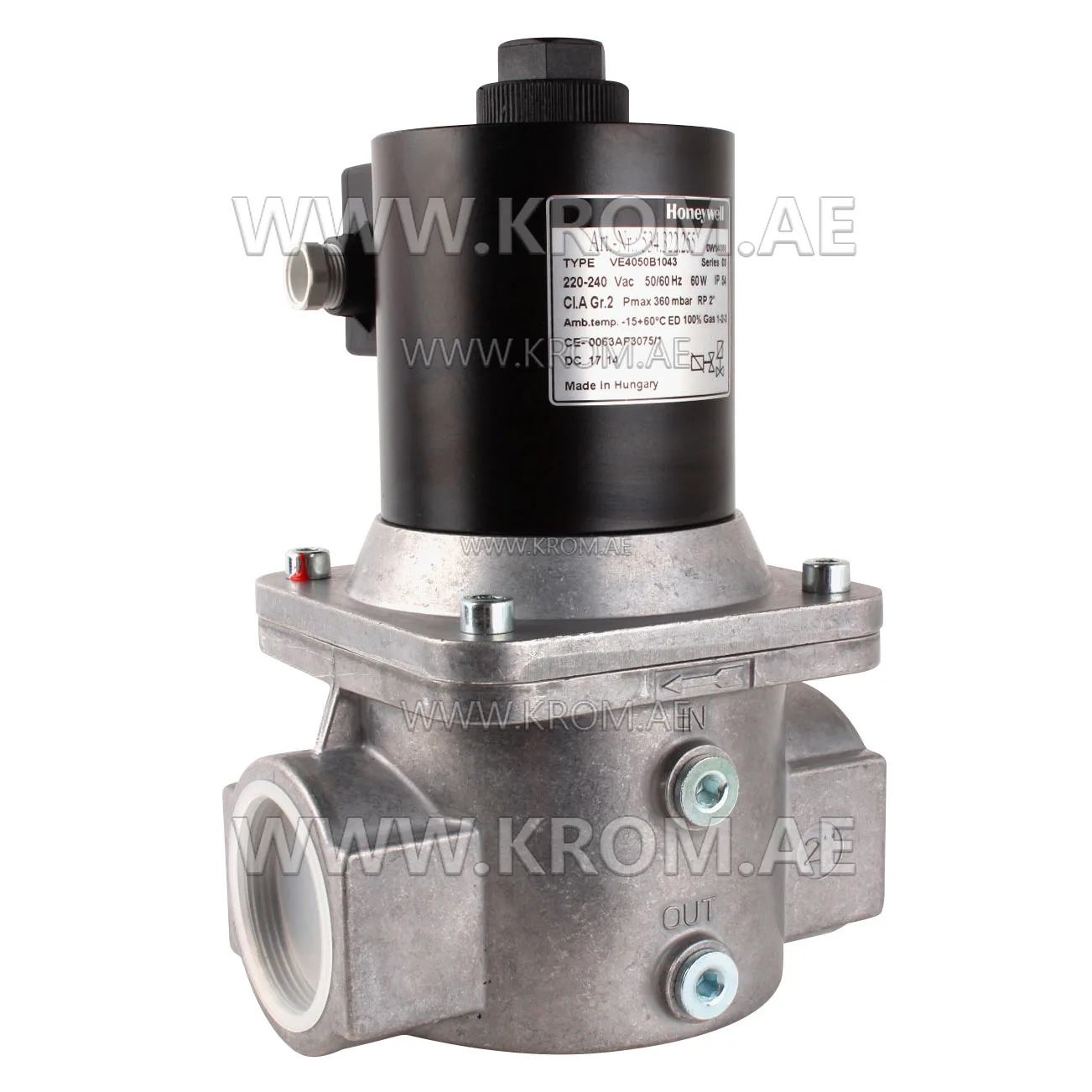

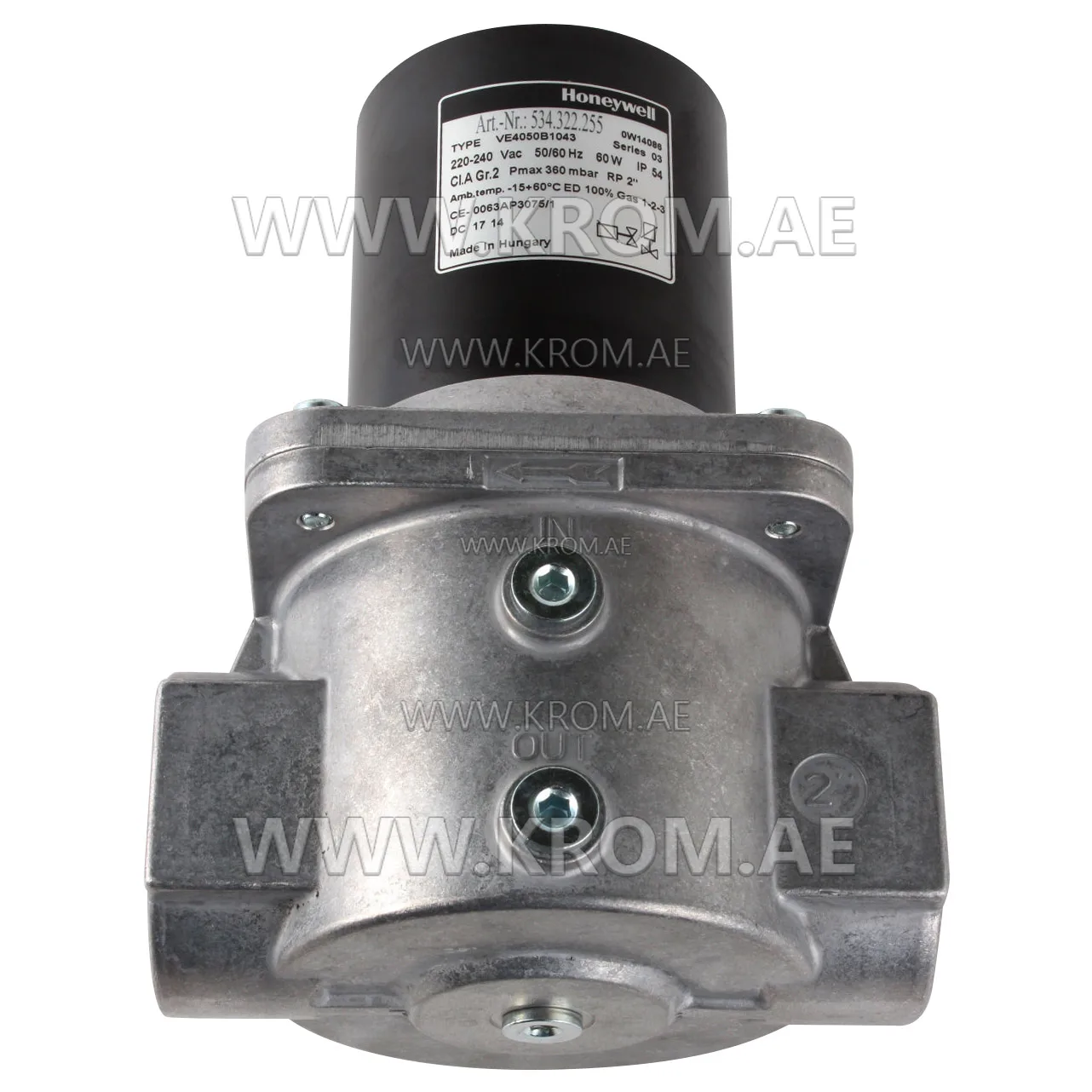

Honeywell VE4050B1043 solenoid valve 2"
Honeywell VE4050B1043 solenoid gas valve, normally closed, designed to control gas flow. It provides reliable shutoff and precise control in systems like burners, boilers, smelting, and incineration furnaces. Honeywell VE4050 B 1043 gas control block features a spring-loaded shutoff plate that remains closed without power. A flow regulator on the coil allows for gas flow adjustment. Opening and closing time is 1 second, with a maximum operating frequency of 20 cycles per minute. Honeywell VE4050B 1043 gas valve body is equipped with wrench flats for easy installation and two additional Rp 1/4" ports on the inlet side. The coil is field-replaceable, suitable for continuous operation, and rotates 360°. An internal filter protects against contaminants. Honeywell VE4050B 1043 combined gas valve technical data: Pipe sizes: Inlet and outlet 3/8” up to 2” internal parallel pipe thread according to ISO 7-1 Mounting and orientation: The valve may be assembled on the pipeline within plus or minus 90 degrees of the vertical axis and 30 cm. air space around the coil assy Torsion and bending stress: Pipe connections meet group 2, according to EN161 requirements Ambient temperature range: -15 ... 60 °C Electrical connection: Plug connection according to PG11 Optional: Male DIN plug connector according to ISO4400 Coil insulation solenoid valves: Insulation material according to class F Valve body: Aluminum alloy die-cast Bottom plug: Rp 1/4” for Closed Position Indication (CPI) switch Strainer: AISI 303 steel Closing spring: AISI 302 steel Valve plunger: Chrome plated Fe 360B steel sliding on anti-friction bearing Seals and gaskets: Hydrocarbon resistant NBR rubber type Optional: Viton rubber type Rated Voltage (Vac): 220…240 Connect (inch): 2 DN: 50 Maximum Operating Pressure (mbar): 360 Power Cons. (W): 60 Enclosure: IP54 Weight (kg): 6.4 Honeywell VE4050 B 1043 CVI valve standards and approvals: Honeywell VE4050B 1043 gas valve in accordance with EN161 standards. Honeywell VE4050B1043 compact gas unit conform to the following EC directives: Gas Appliance Directive (90/396/EEC) PIN: CE-0063AP3075/1 Low Voltage Directive (73/23/EEC) Electro Magnetic Compatibility Directive (89/336/EEC)
