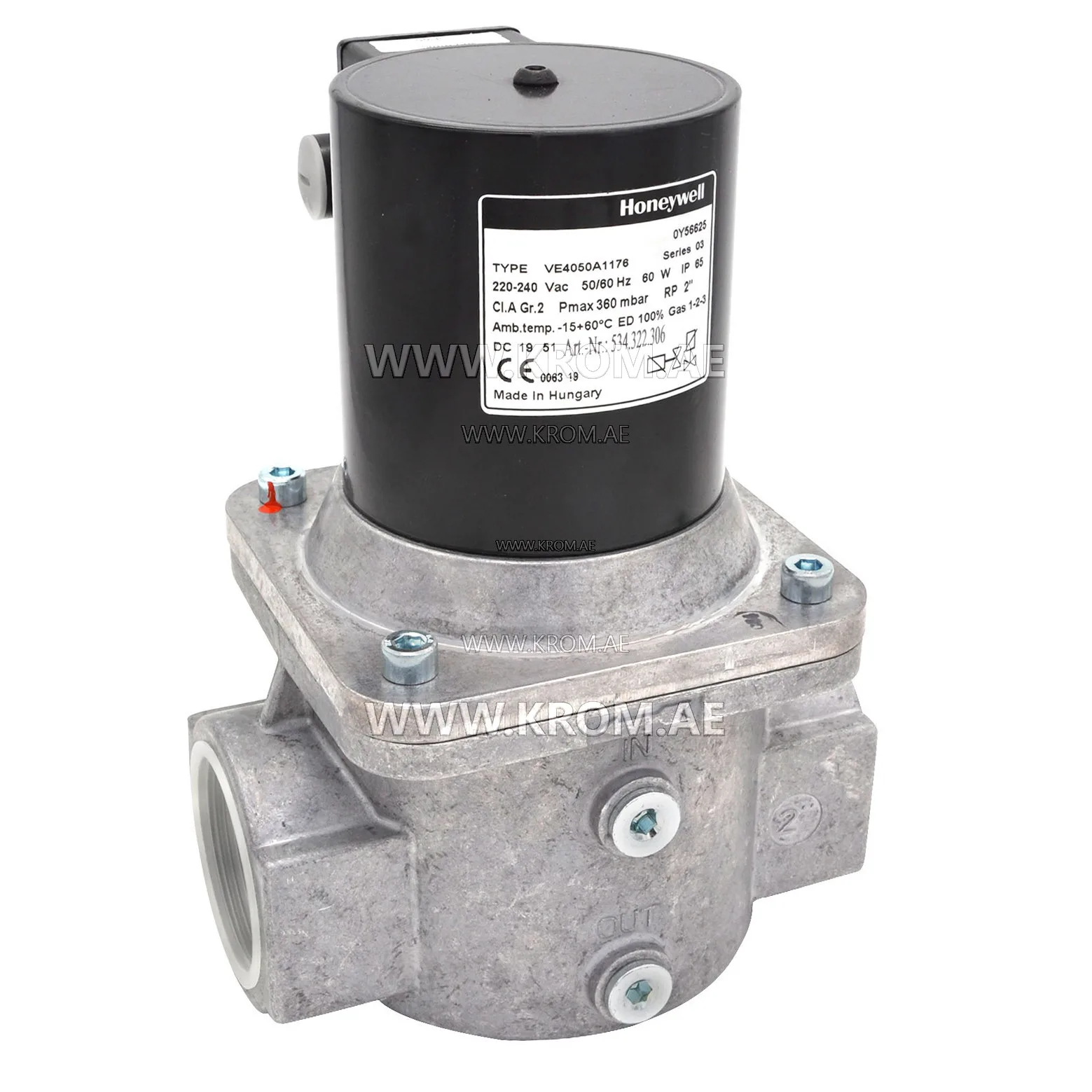

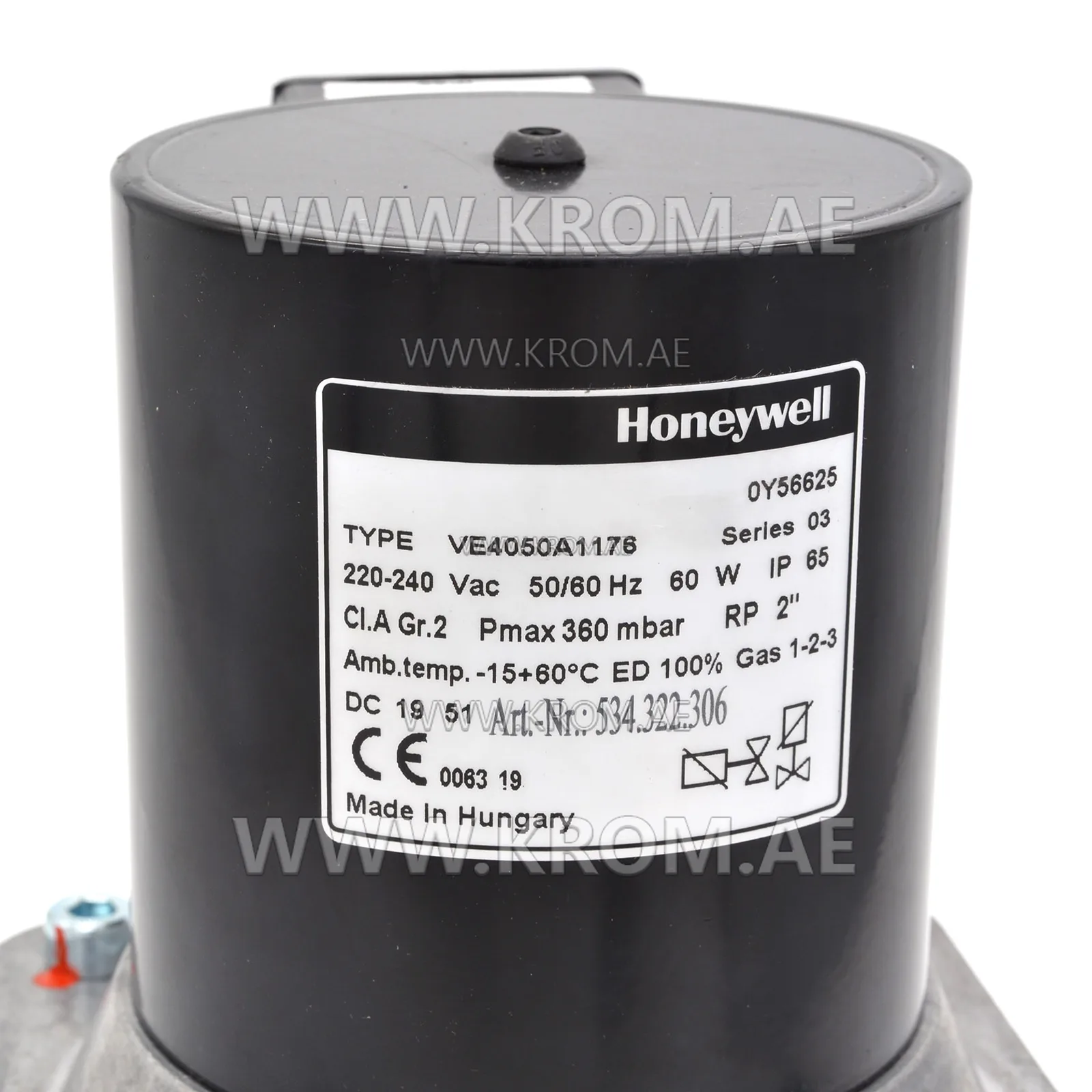

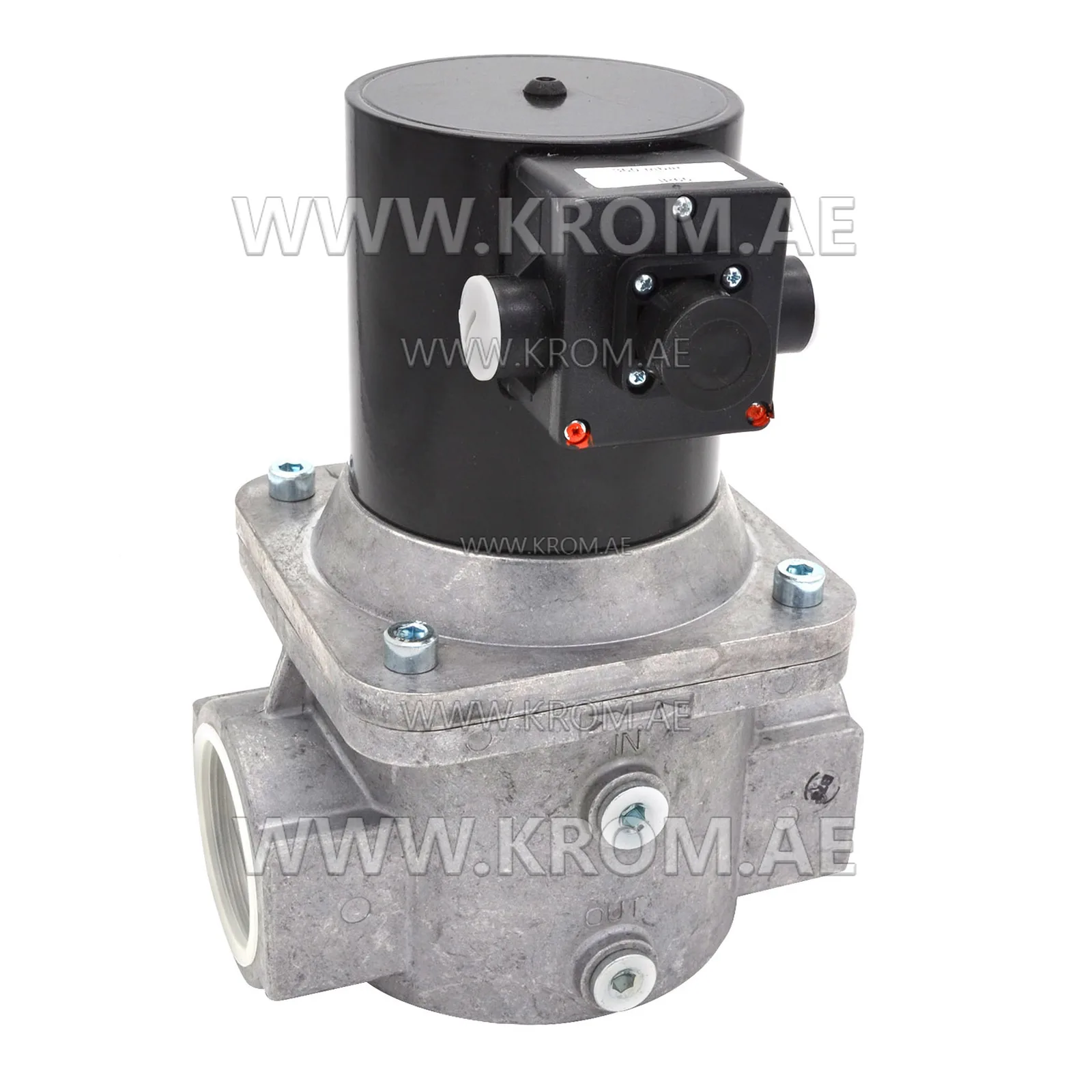

Honeywell VE4050A1176 solenoid valve DN50

Honeywell VE4050A1176 class "A" combined valve ignition system designed for quick and safe gas flow control in heating and other gas appliances. Honeywell VE4050A 1176 combined valve ignition system technical data: Pipe sizes: Inlet and outlet 3/8” up to 3” internal parallel pipe thread according to ISO 7-1 Mounting and orientation: The valve may be assembled on the pipeline within plus or minus 90 degrees of the vertical axis and 30 cm. air space around the coil assy Torsion and bending stress: Pipe connections meet group 2, according to EN161 requirements Ambient temperature range: -15 ... 60 °C Valve body: Aluminium alloy die-cast Bottom plug: Rp 1/4” for Closed Position Indication (CPI) switch Strainer: AISI 303 steel Closing spring: AISI 302 steel Valve plunger: Chrome plated Fe 360B steel sliding on anti-friction bearing
