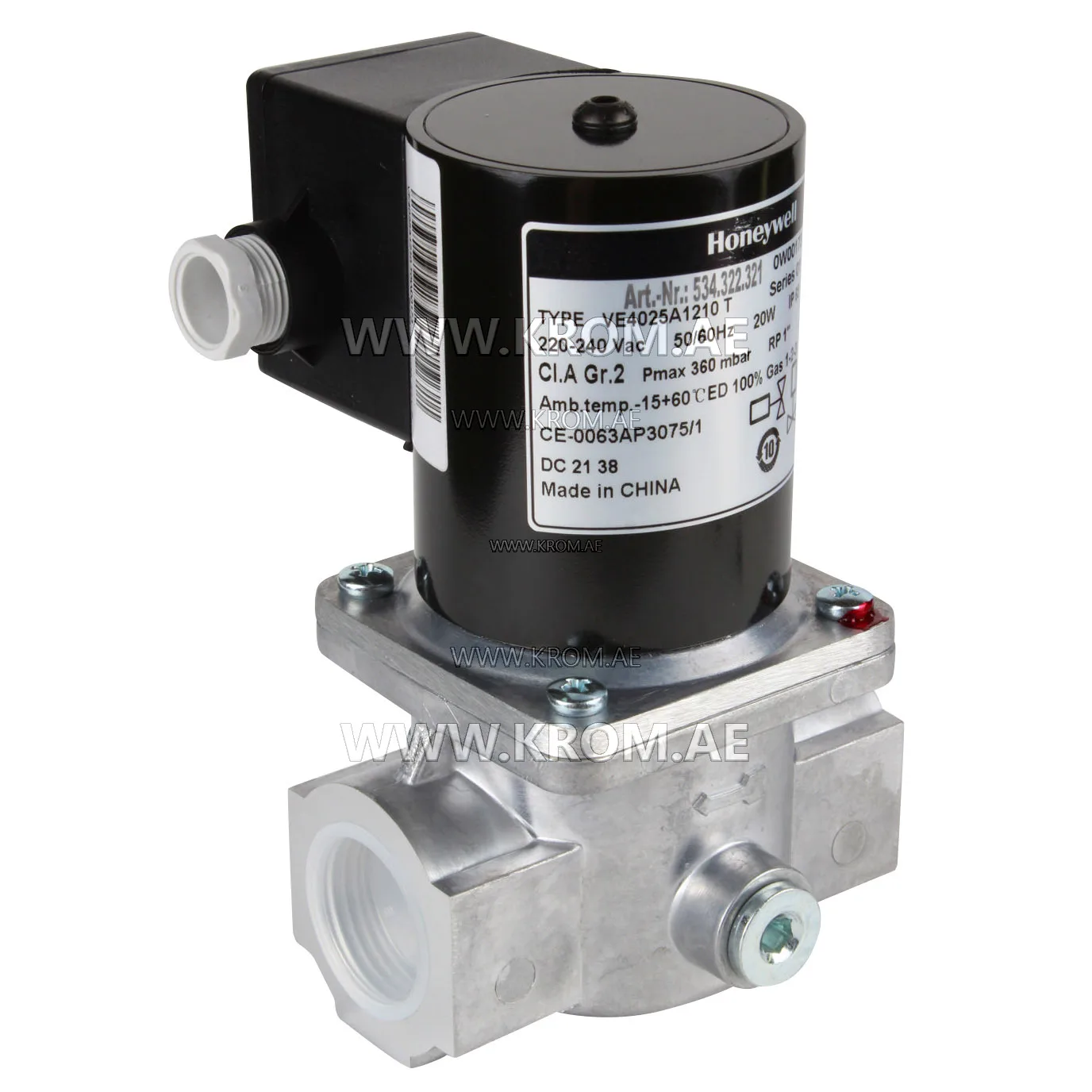

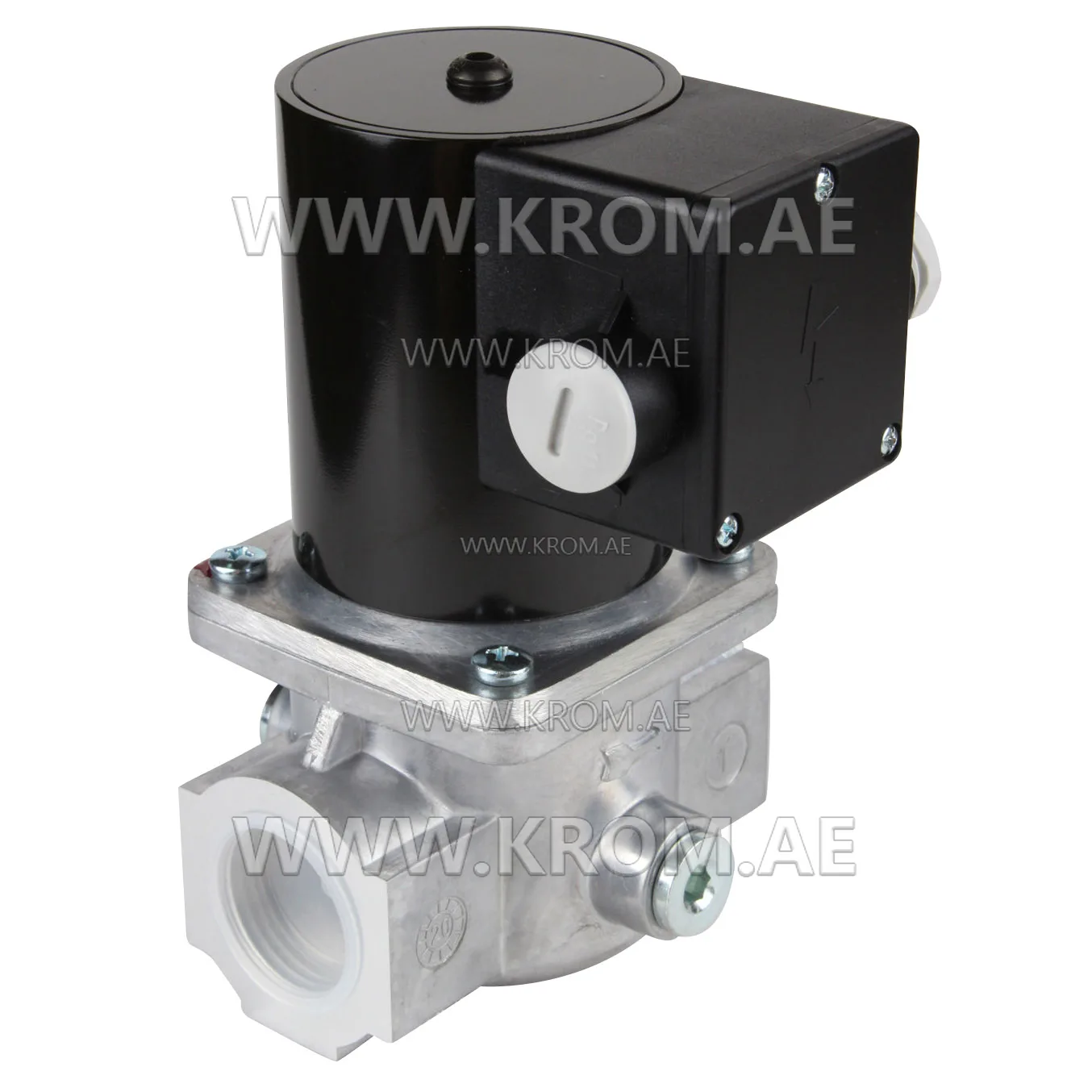

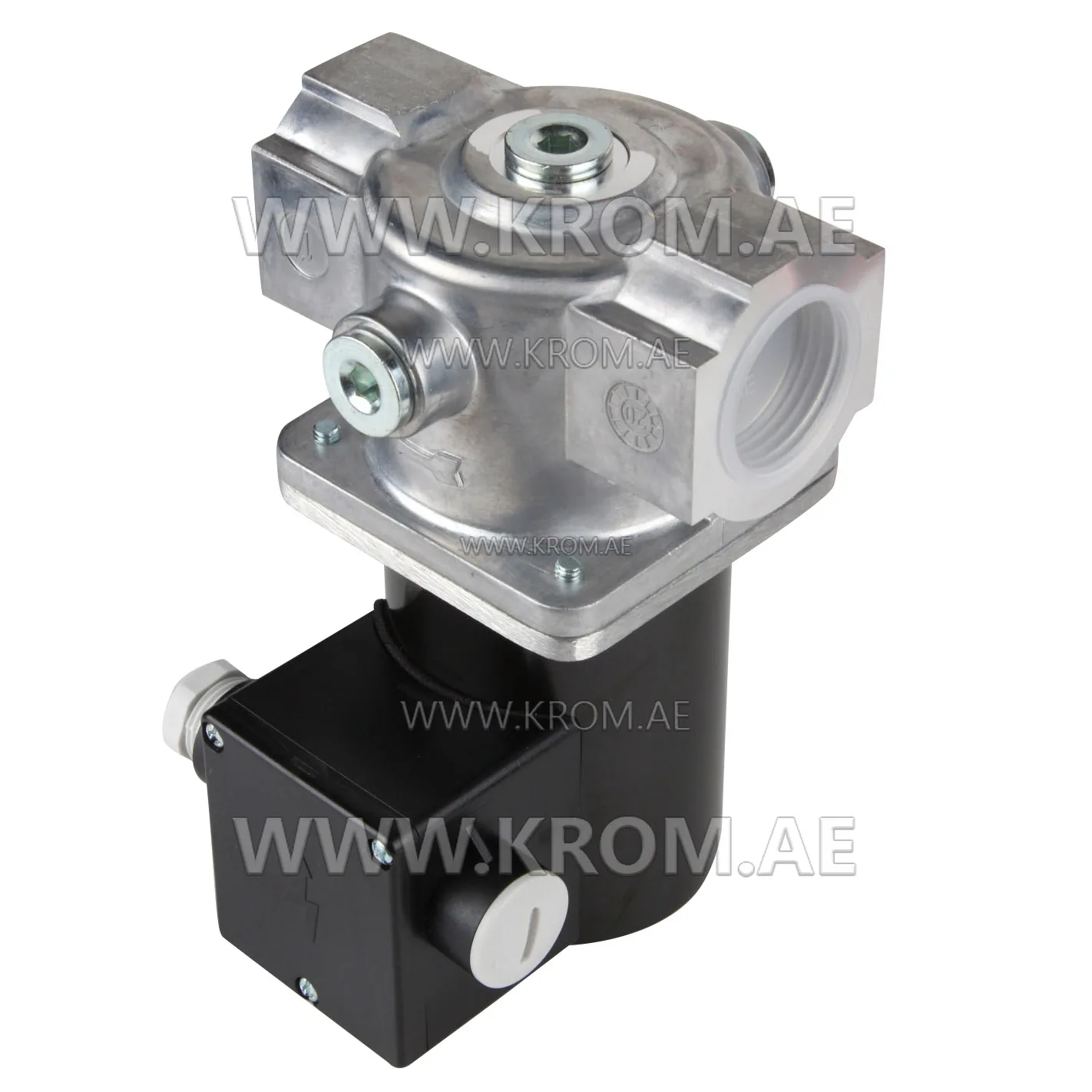

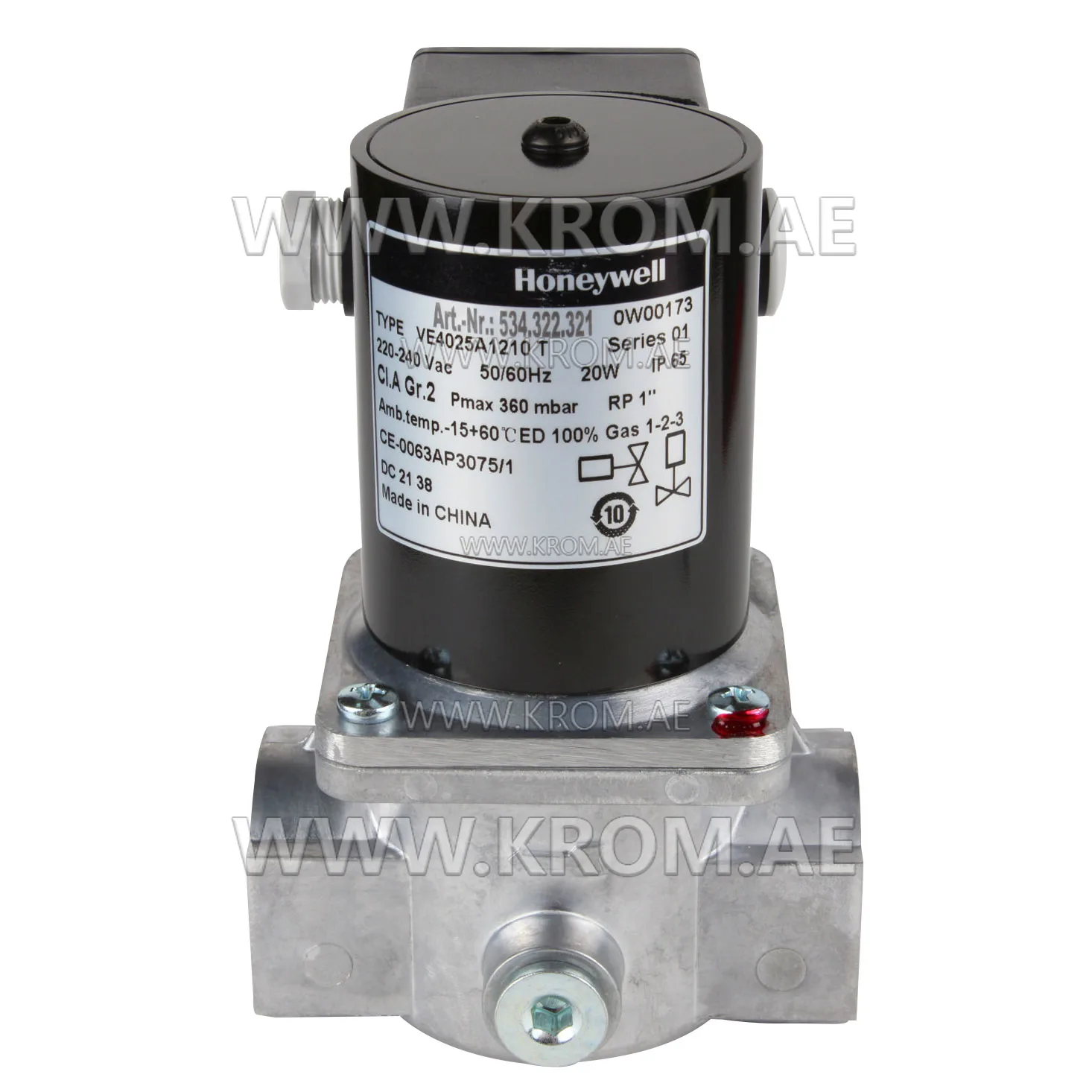

Honeywell VE4025A1210T solenoid valve DN25

Honeywell VE4025 A 1210T Class "A" CVI valve an electromagnetic safety device with fast-acting shut-off functionality. It is used to control and regulate the flow of gaseous fuel in systems such as gas burners, boilers, furnaces, and other gas-operated equipment. Honeywell VE4025A1210T compact gas unit technical data: Pipe sizes: Inlet and outlet 3/8” up to 3” internal parallel pipe thread according to ISO 7-1 Mounting and orientation: The valve may be assembled on the pipeline within plus or minus 90 degrees of the vertical axis and 30 cm. air space around the coil assy Torsion and bending stress: Pipe connections meet group 2, according to EN161 requirements Ambient temperature range: -15 ... 60 °C Valve body: Aluminium alloy die-cast Bottom plug: Rp 1/4” for Closed Position Indication (CPI) switch Strainer: AISI 303 steel Closing spring: AISI 302 steel Valve plunger: Chrome plated Fe 360B steel sliding on anti-friction bearing
