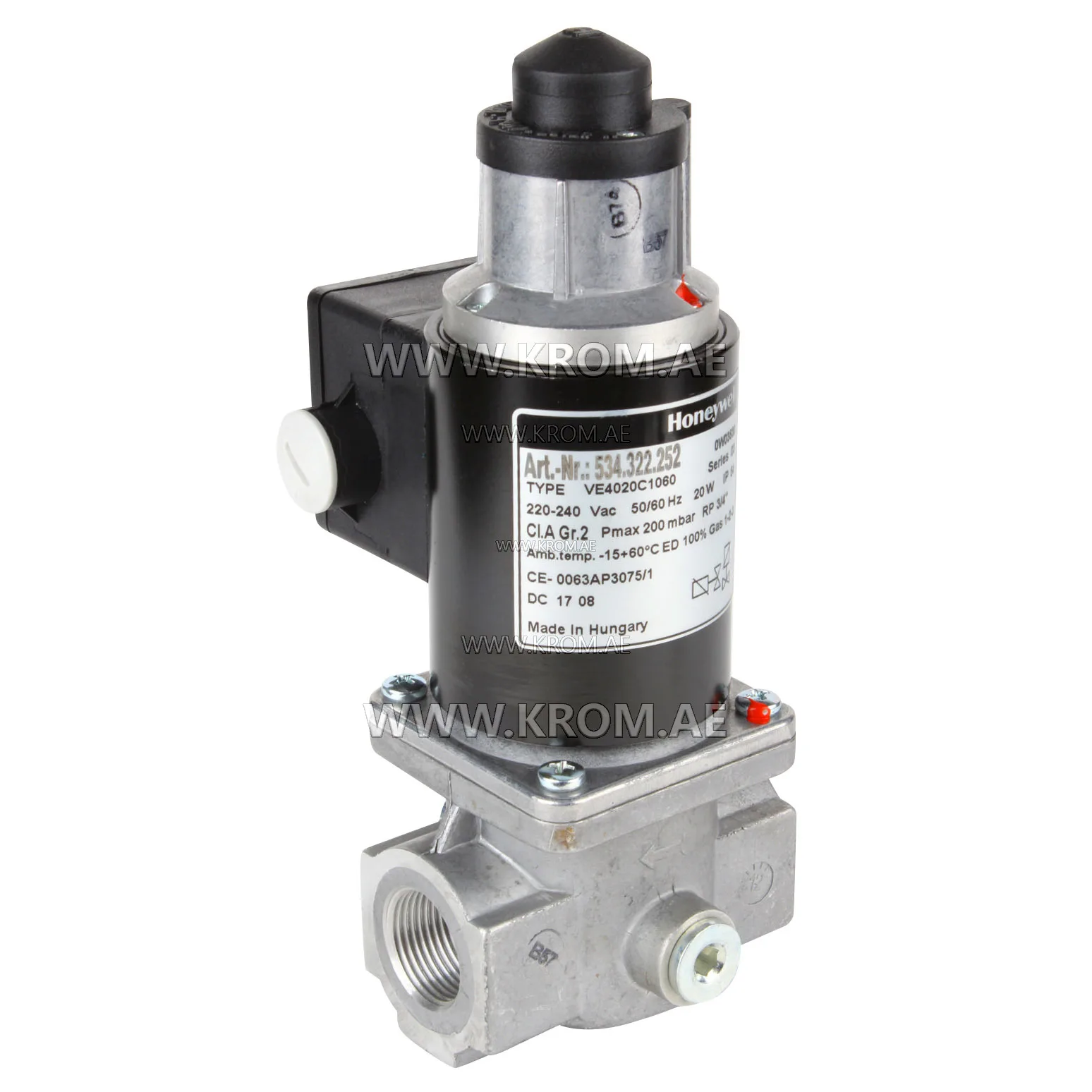

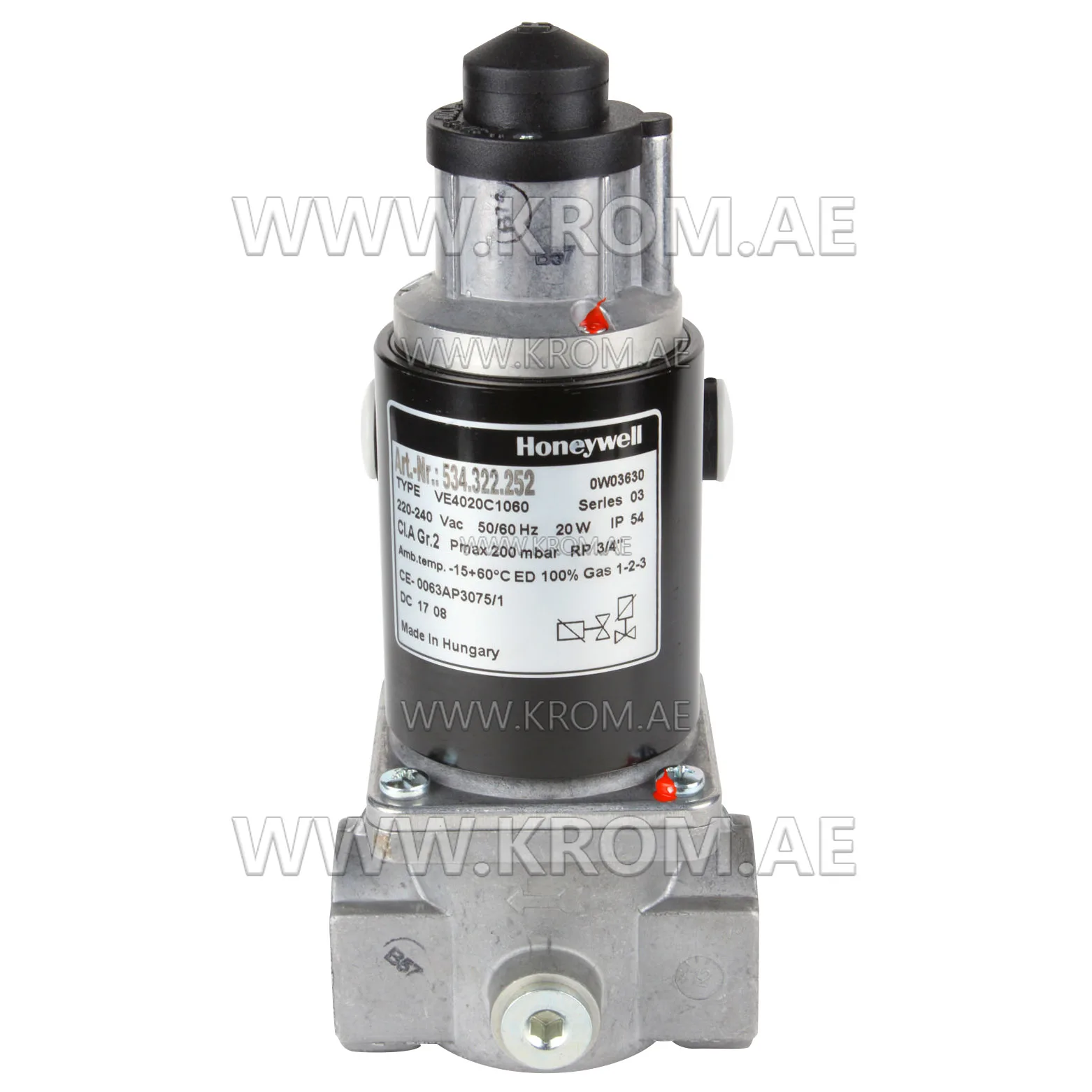

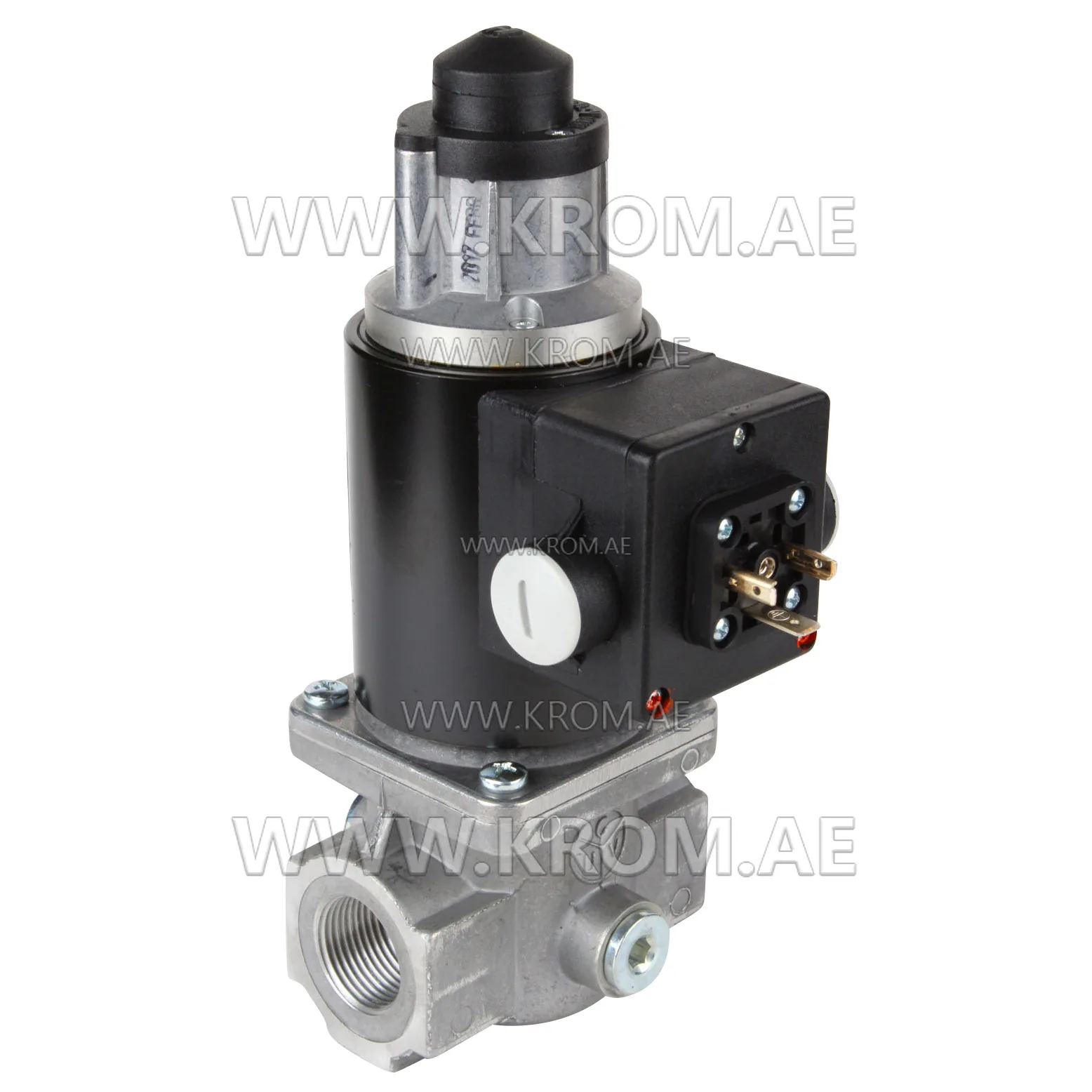

Honeywell VE4020C1060 solenoid valve

Honeywell VE4020C1060 compact gas unit with a normally closed solenoid and adjustable opening time. The Class "A" solenoid valve with shutoff function designed for controlling and regulating gas flow to forced draft burners, atmospheric gas boilers, melting and waste incineration furnaces, and other gas-burning equipment. Honeywell VE4020 C 1060 CVI valve technical data: Type of gas tap: not adjustable open/closed normally closed, with delayed opening from 1 to 30 seconds, with maximum flow control. Environment: natural gas, propane, air. Materials: aluminum die-cast housing Certificates: CE (EN161), GOST, AGA Pipe connection: Internal thread according to ISO 7/1 (Rp) Thread type: BSP Max. opening time: 30 sec Max. closing time: 1 sec Ambient temperature: -15 ... 60 °C Dimensions: Rp 3/4 Max. working pressure: 200 mbar Protection class: IP54 Electrical connector: plug according to DIN
