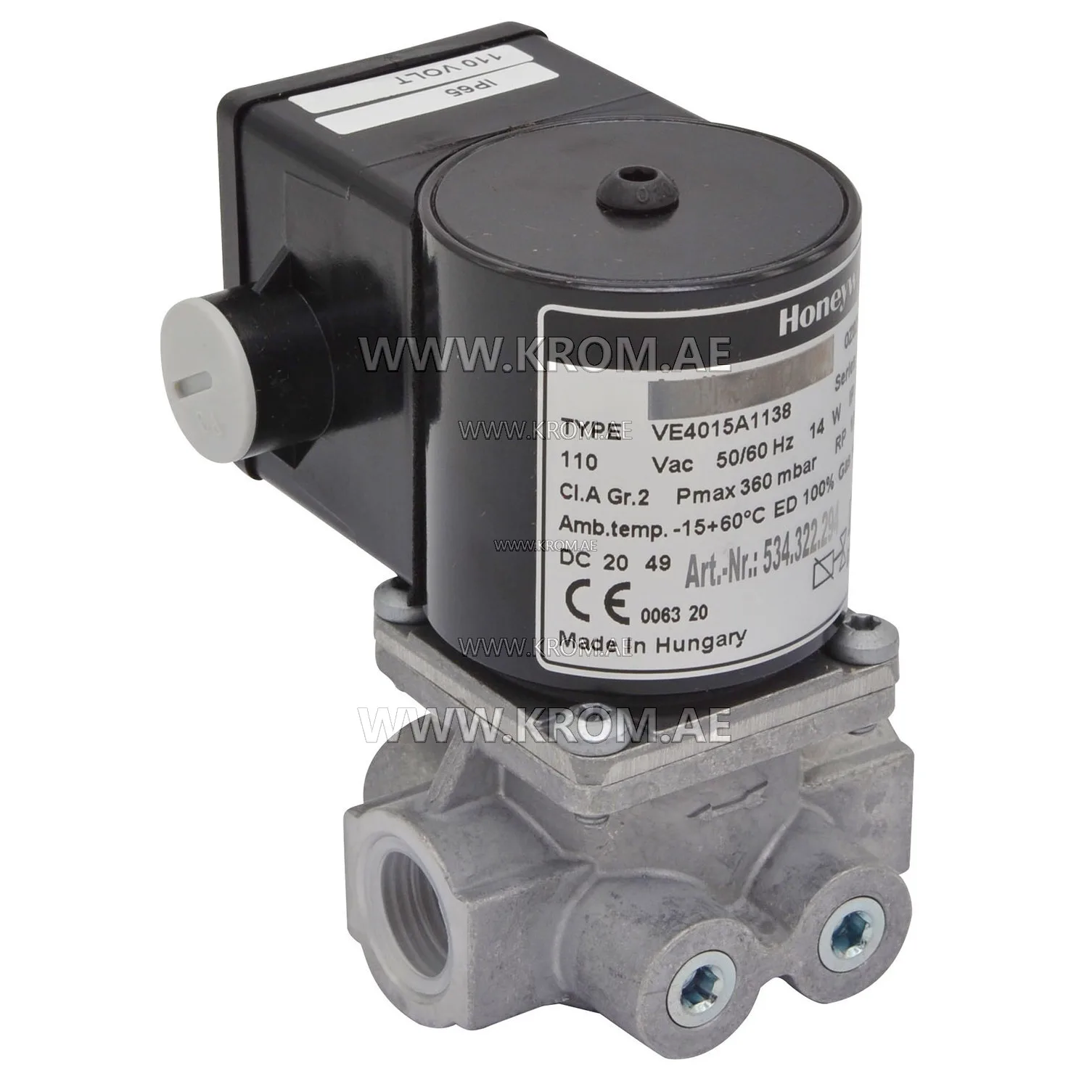

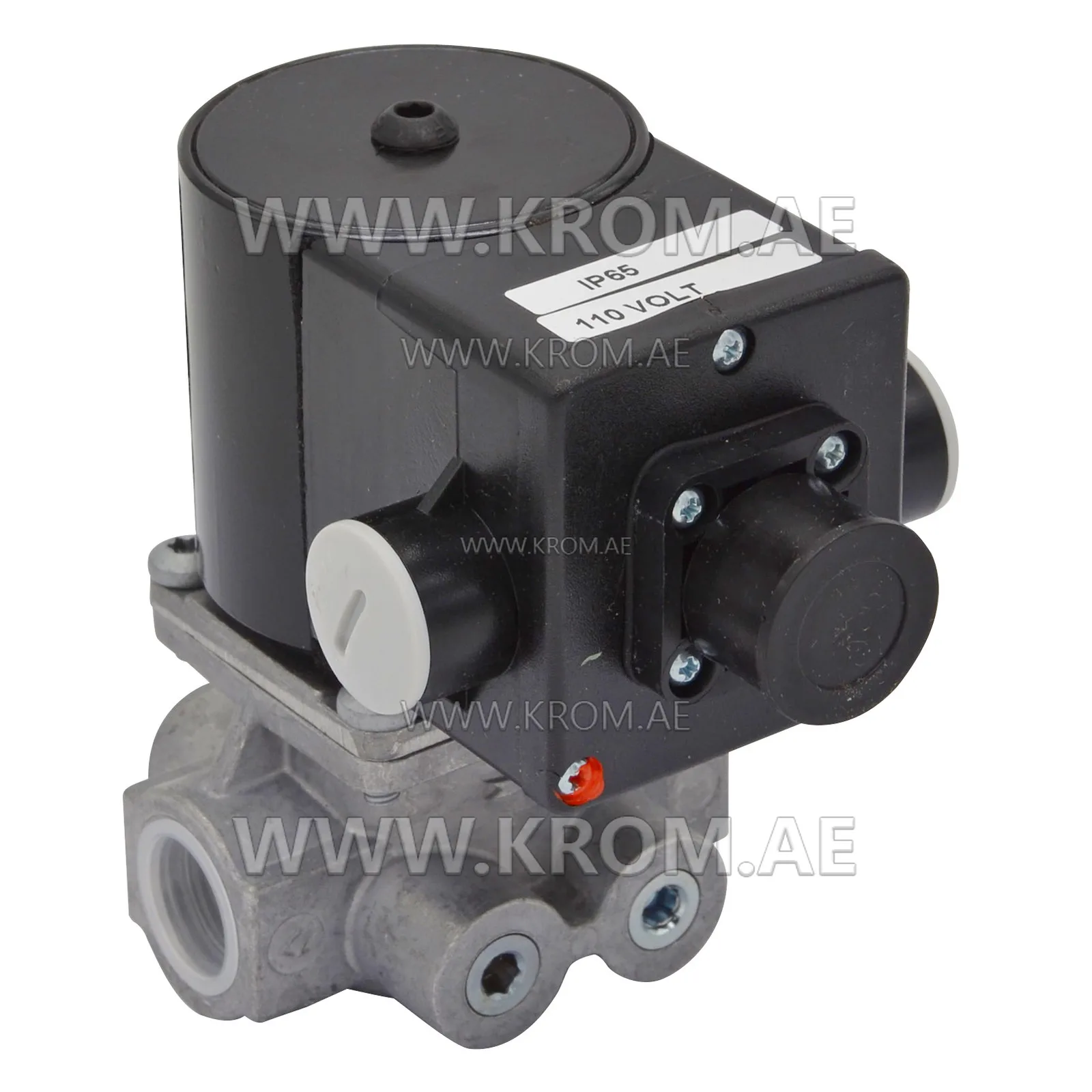

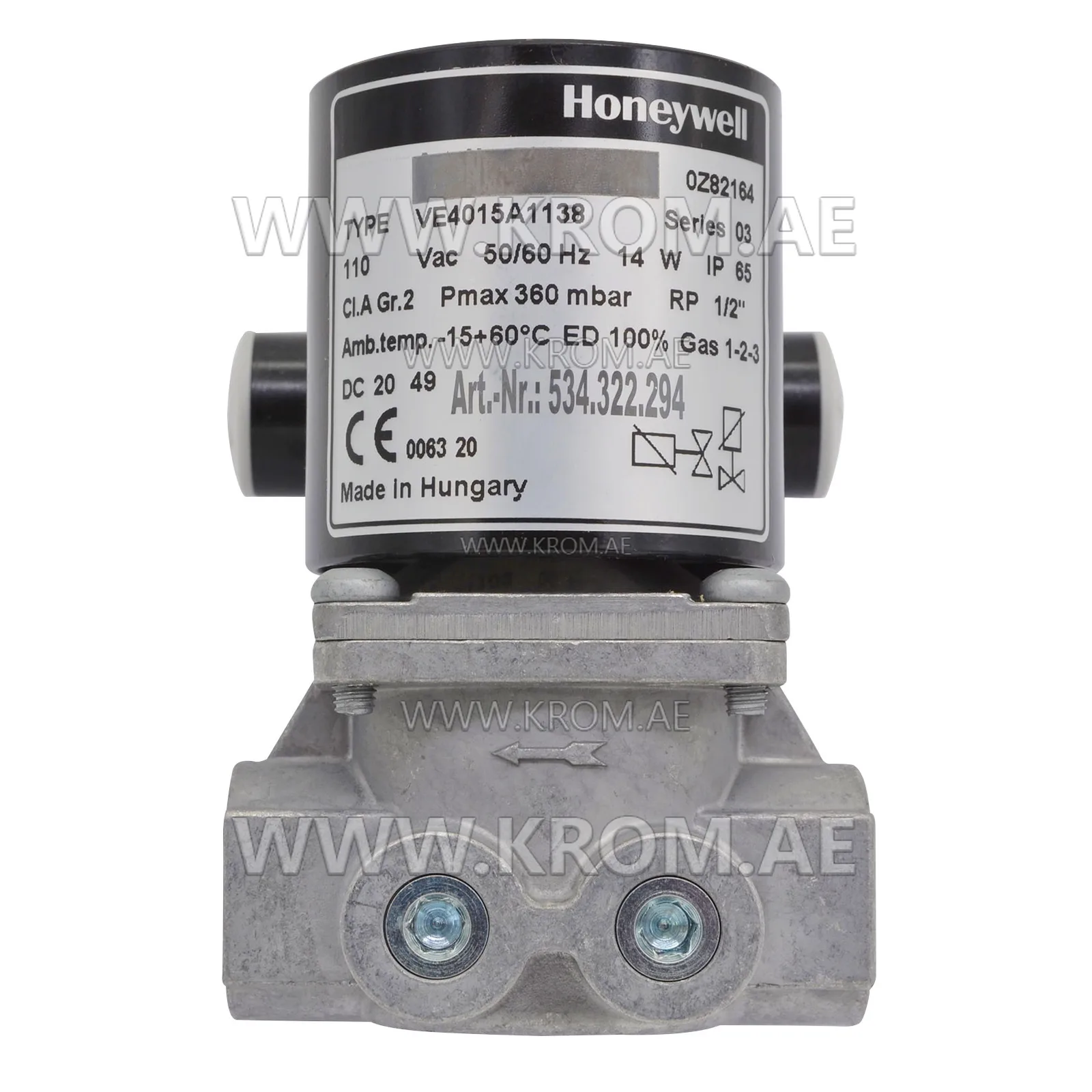

Honeywell VE4015A1138 solenoid valve DN15

Honeywell VE4015A 1138 class "A" solenoid safety quick shut-off valve designed to provide reliable control and regulation of gaseous fuel flow in gas burner blowers, heating boilers, furnaces, and other gas appliances. Honeywell VE4015A1138 combined gas valve automatically closes when power disconnected due to its spring-loaded disc, ensuring safety and efficiency. It features a rapid opening and closing time of less than one second, allowing for quick response to system changes. Capable of operating at up to 20 cycles per minute, this valve ensures stable and safe system performance. The coil can be easily replaced in the field and operates continuously, with the ability to rotate 360 degrees. Additionally, Honeywell VE4015A1138 CVI valve includes an integrated filter to prevent contaminants from entering the system. Honeywell VE4015A 1138 compact gas unit technical data: Pipe sizes: Inlet and outlet 3/8” up to 3” internal parallel pipe thread according to ISO 7-1 Mounting and orientation: The valve may be assembled on the pipeline within plus or minus 90 degrees of the vertical axis and 30 cm. air space around the coil assy Torsion and bending stress: Pipe connections meet group 2, according to EN161 requirements Ambient temperature range: -15 ... 60 °C Valve body: Aluminium alloy die-cast Bottom plug: Rp 1/4” for Closed Position Indication (CPI) switch Strainer: AISI 303 steel Closing spring: AISI 302 steel Valve plunger: Chrome plated Fe 360B steel sliding on anti-friction bearing
