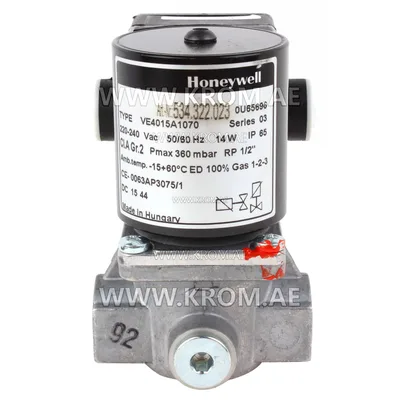

Honeywell VE4015A1070 solenoid valve

Honeywell VE4015A 1070 gas solenoid valve designed to control and regulate the flow of gaseous fuel in devices such as gas burner blowers, heating boilers, furnaces, and other gas-using equipment. Honeywell VE4015 A 1070 combined valve ignition system ensures reliable and safe operation of gas systems. Honeywell VE4015A1070 gas control unit features Normally Closed valve. (spring loaded valve disc, closed when de-energized). Non regulated ON/OFF. Opening/closing time: < 1 sec. Maximum working frequency: 20 cycles/min. Wrench boss as well on inlet side as on outlet side for pipe fitting incorporated in the valve housing. 2 auxiliary pressure taps with Rp 1/4” threaded connections, both on the inlet pressure side. Coil field replaceable. Coil suitable for permanent energization. Coil turnable over 360°. Internal fine mesh screen. Honeywell VE4015A 1070 gas control block technical data: Pipe sizes: Inlet and outlet 3/8” up to 3” internal parallel pipe thread according to ISO 7-1 Mounting and orientation: The valve may be assembled on the pipeline within plus or minus 90 degrees of the vertical axis and 30 cm. air space around the coil assy Torsion and bending stress: Pipe connections meet group 2, according to EN161 requirements Ambient temperature range: -15 ... 60 °C Electrical protection: IP65 Valve body: Aluminium alloy die-cast Bottom plug: Rp 1/4” for Closed Position Indication (CPI) switch Strainer: AISI 303 steel Closing spring: AISI 302 steel Valve plunger: Chrome plated Fe 360B steel sliding on anti-friction bearing Connect (inch): 1/2 Maximum Operating Pressure (mbar): 360
