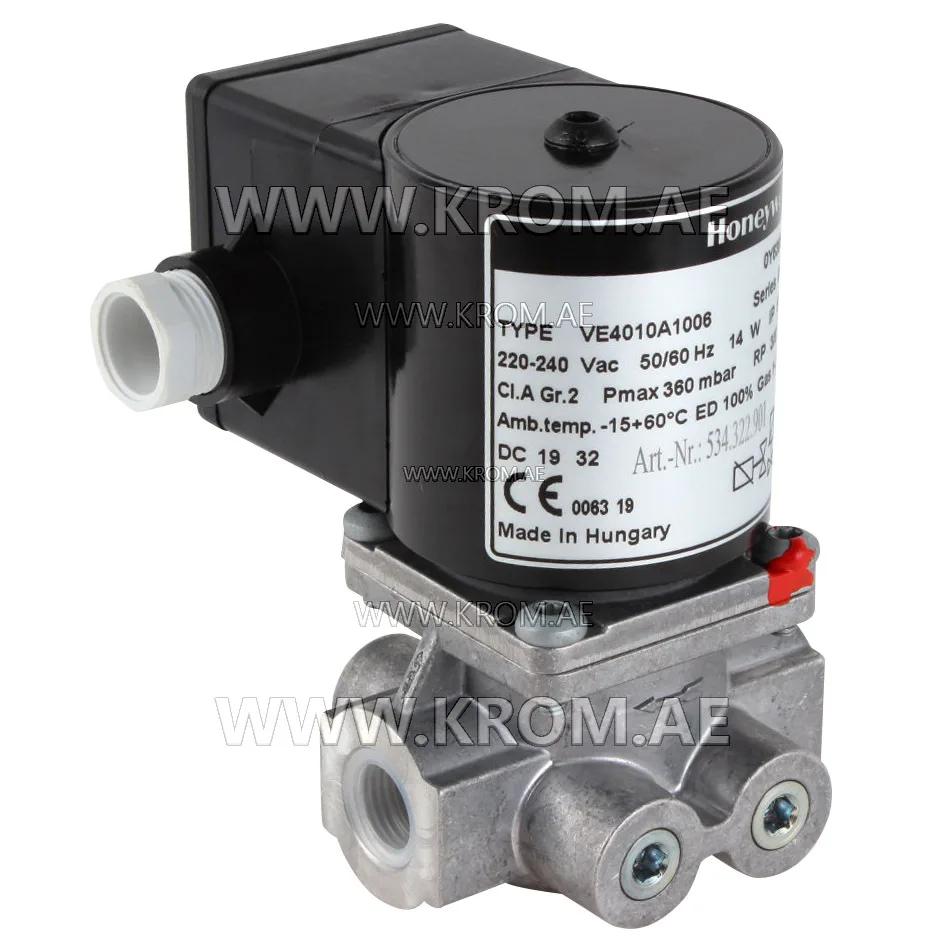

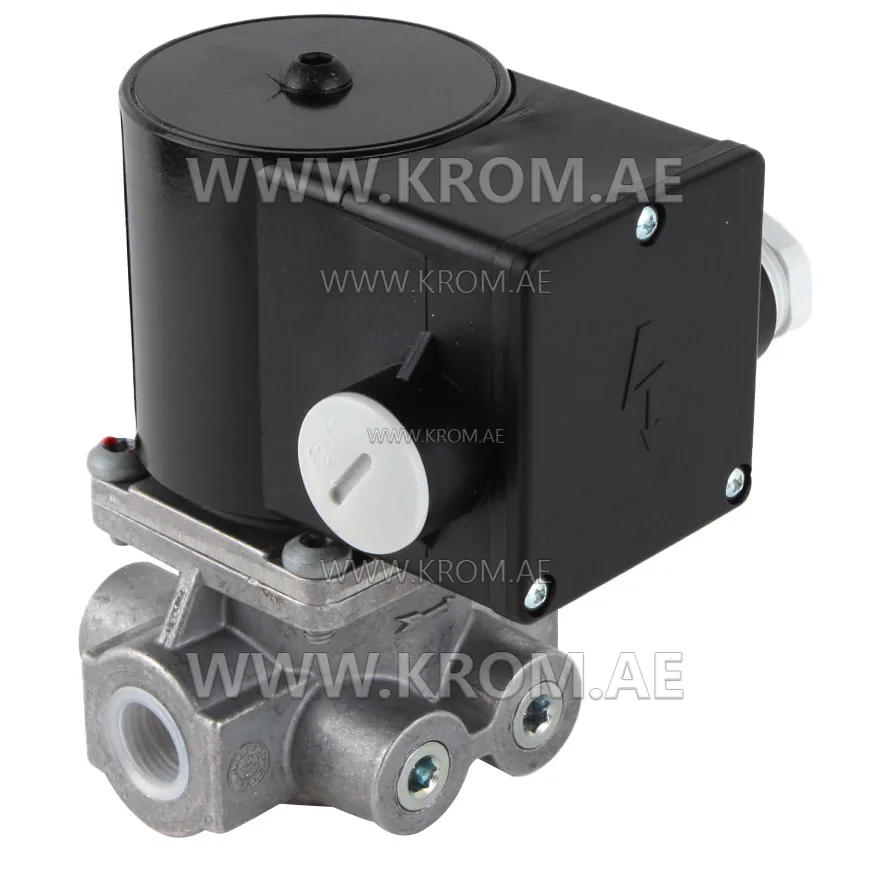

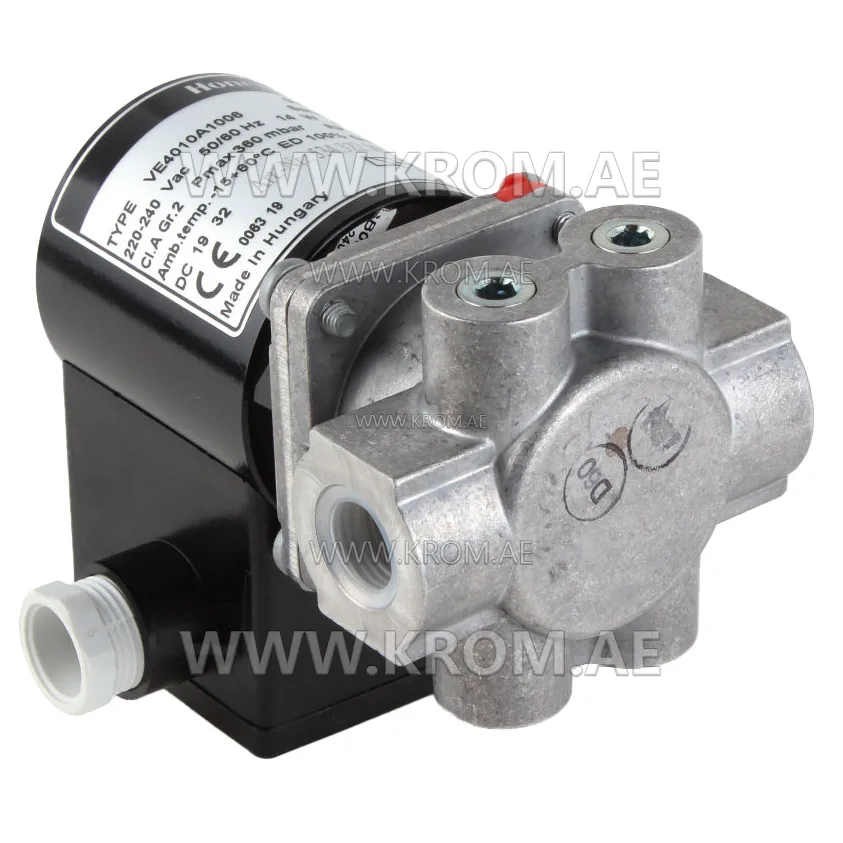

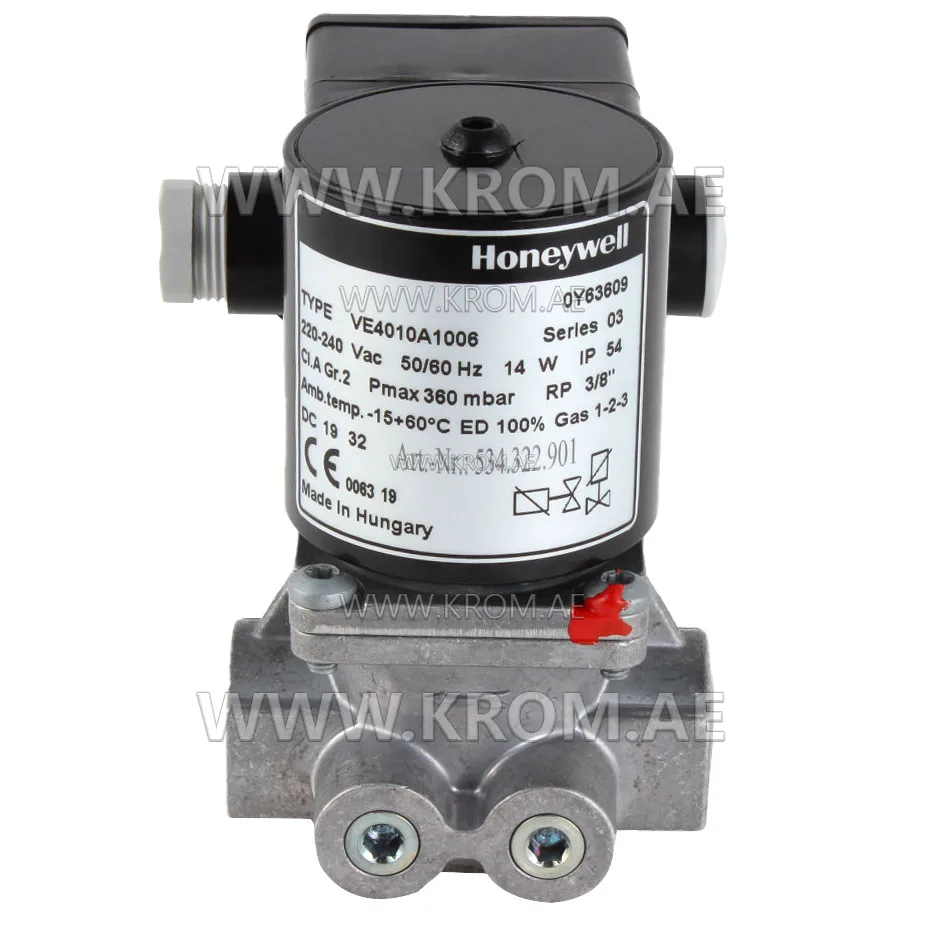

Honeywell VE4010A1006 solenoid valve 3/8"

Honeywell VE4010A 1006 gas valves used for control and regulation of gaseous fluids in gas power burners, atmospheric gas boilers, melting furnaces, incinerators and other gas consuming appliances. Honeywell VE4010A1006 combined gas valves technical data: Pipe sizes: Inlet and outlet 3/8” up to 3” internal parallel pipe thread according to ISO 7-1 Mounting and orientation: The valve may be assembled on the pipeline within plus or minus 90 degrees of the vertical axis and 30 cm. air space around the coil assy Torsion and bending stress: Pipe connections meet group 2, according to EN161 requirements Ambient temperature range: -15 ... 60 °C Electrical connection: Plug connection according to PG11 Electrical protection: IP54 Valve body: Aluminium alloy die-cast Bottom plug: Rp 1/4” for Closed Position Indication (CPI) switch Strainer: AISI 303 steel Closing spring: AISI 302 steel Valve plunger: Chrome plated Fe 360B steel sliding on anti-friction bearing Rated Voltage (Vac): 220…240 Connect (inch): 3/8 DN: 10 Maximum Operating Pressure (mbar): 360 Power Cons. (W): 14 Weight (kg): 1.1
