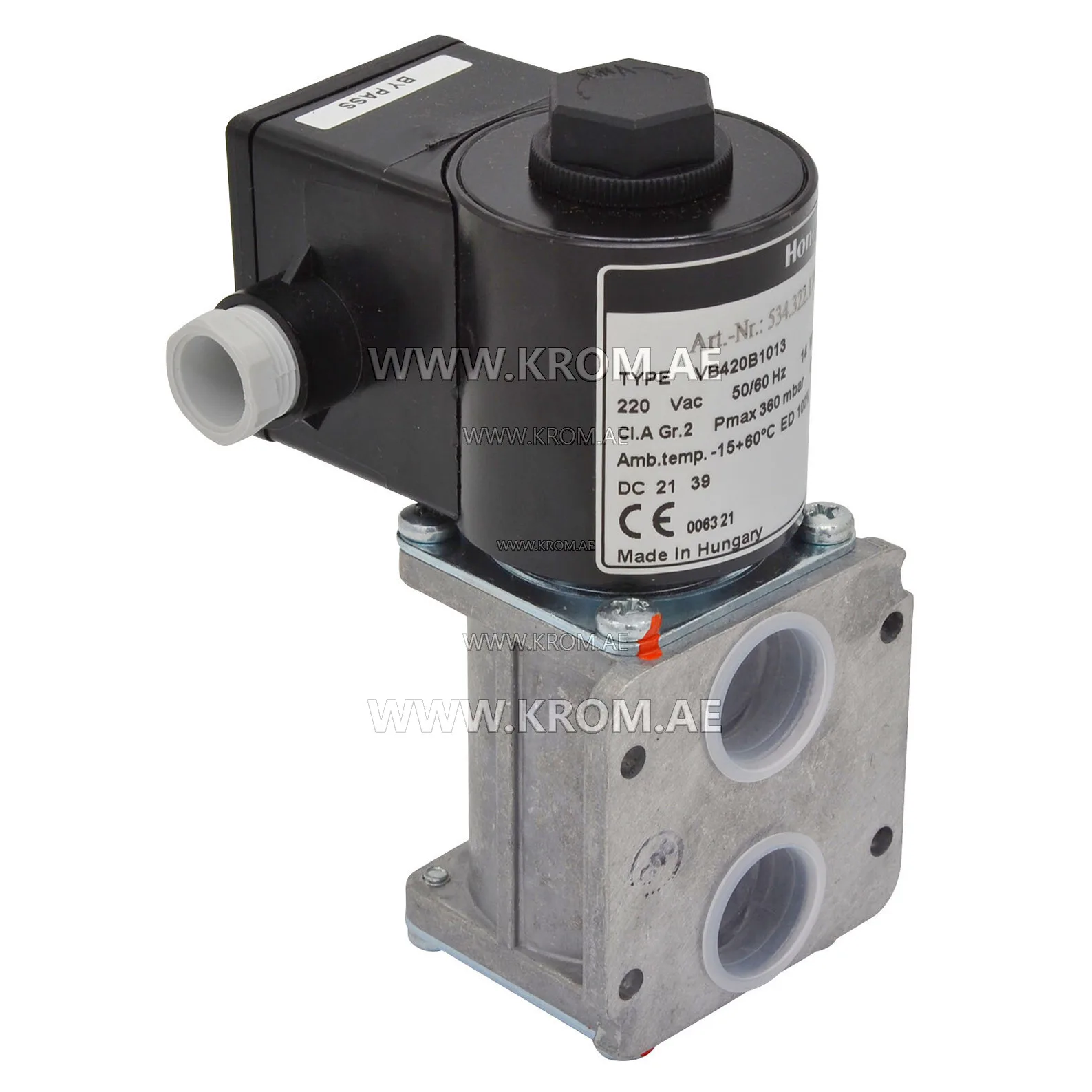

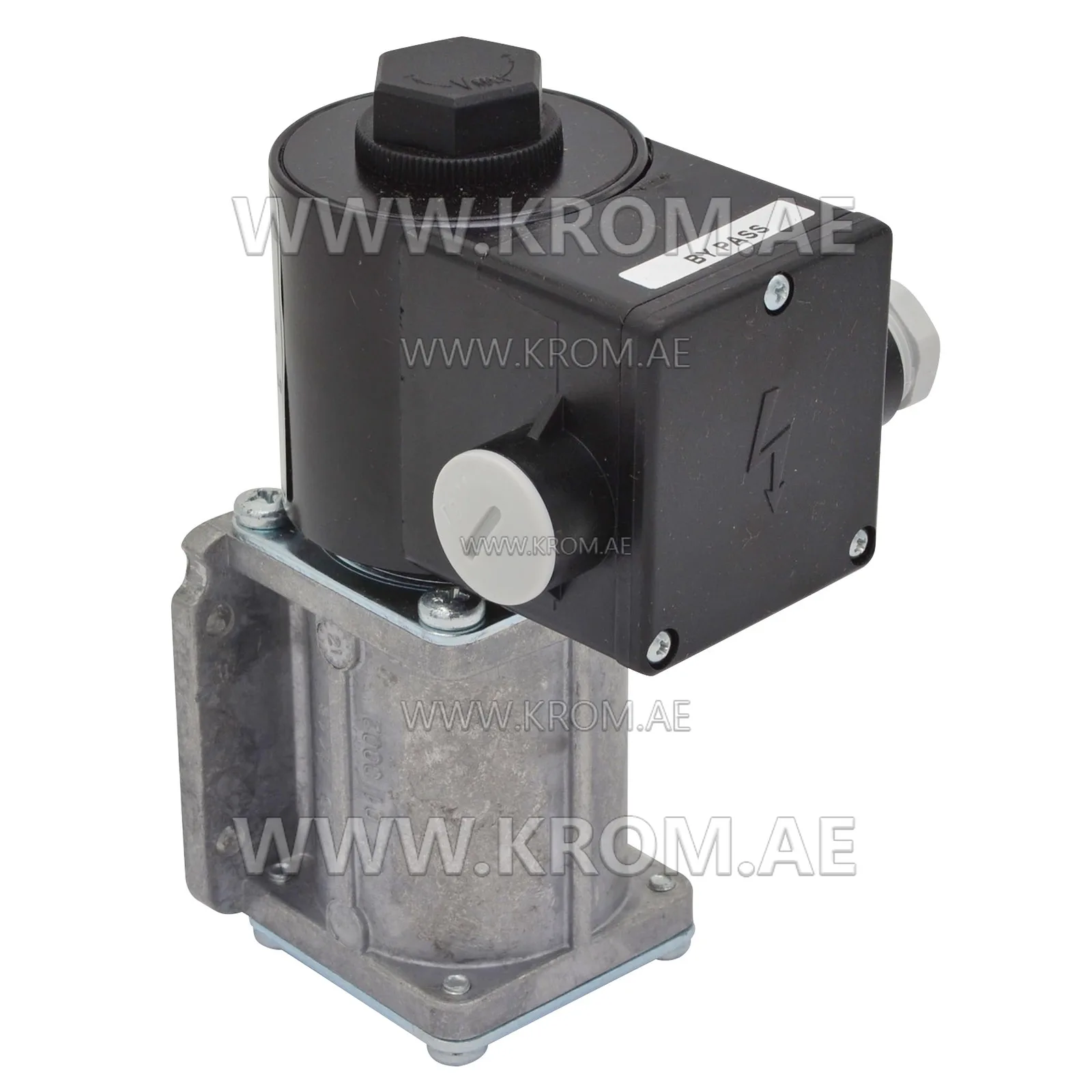

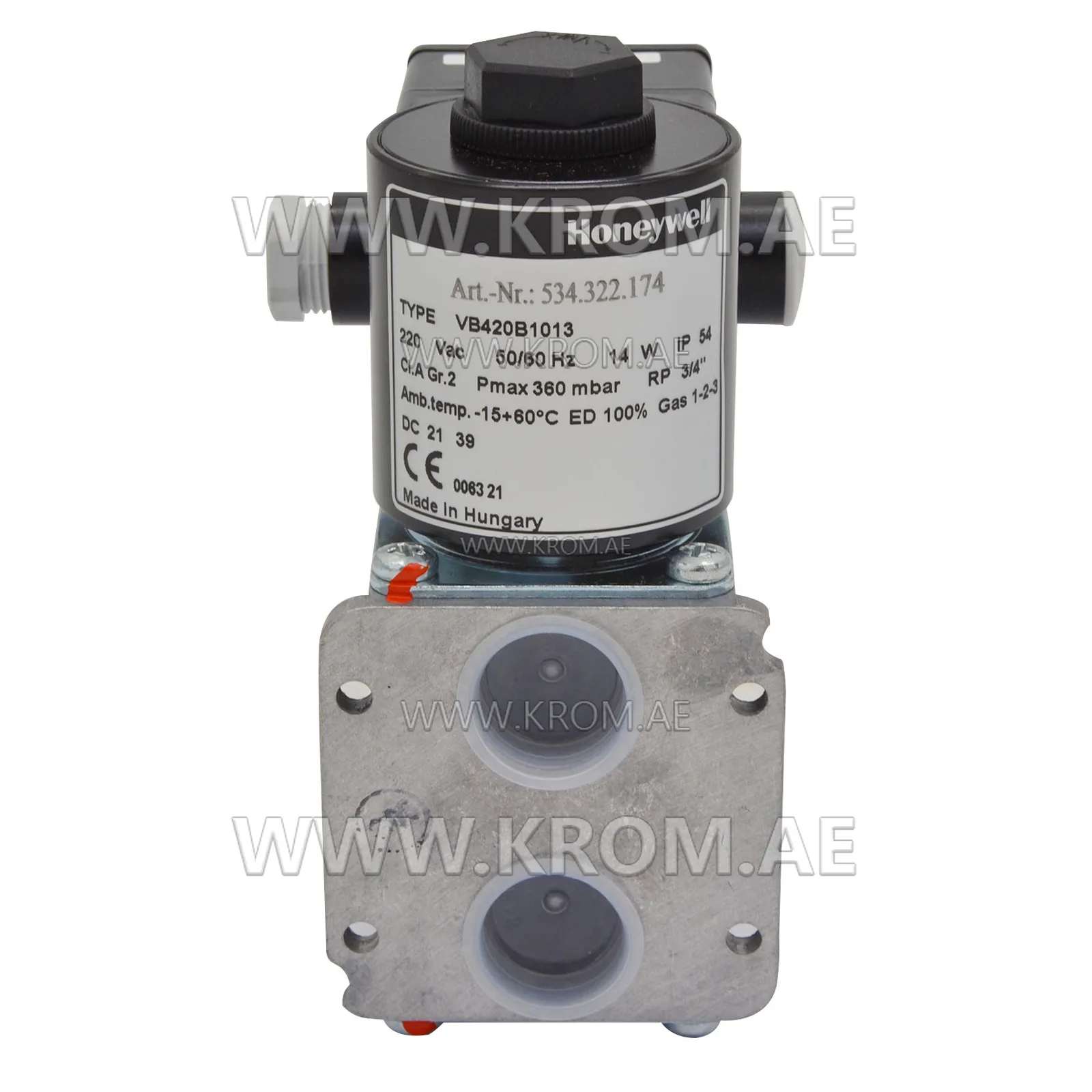

Honeywell VB420B1013 bypass valve DN20

Honeywell VB420B 1013 class “A” by pass gas solenoid valves intended used in combination with the VQ400M series combination valve. Honeywell VB420B1013 gas valves are supplied as a kit which enables the field mounting of the by pass valve onto the VQ400M possible. Honeywell VB420 B 1013 combined valve ignition system technical data: Ambient temperature range: -15 to 60°C Maximum operating pressure: 360 mbar Closing time: < 1 sec Line voltage: 230 V, 50/60 Hz Max. opening time: 1 sec Electrical connections: screw terminals Enclosure: IP54 Power consumption: 20W Designed life time: 500,000 cycles
