Honeywell V4600Q2018U gas valve

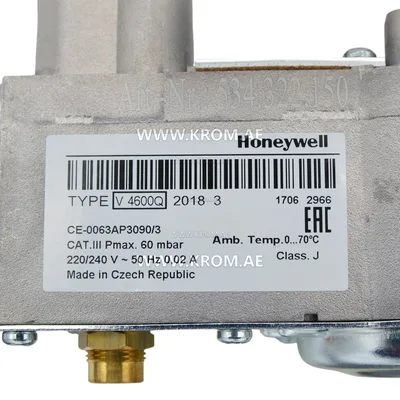

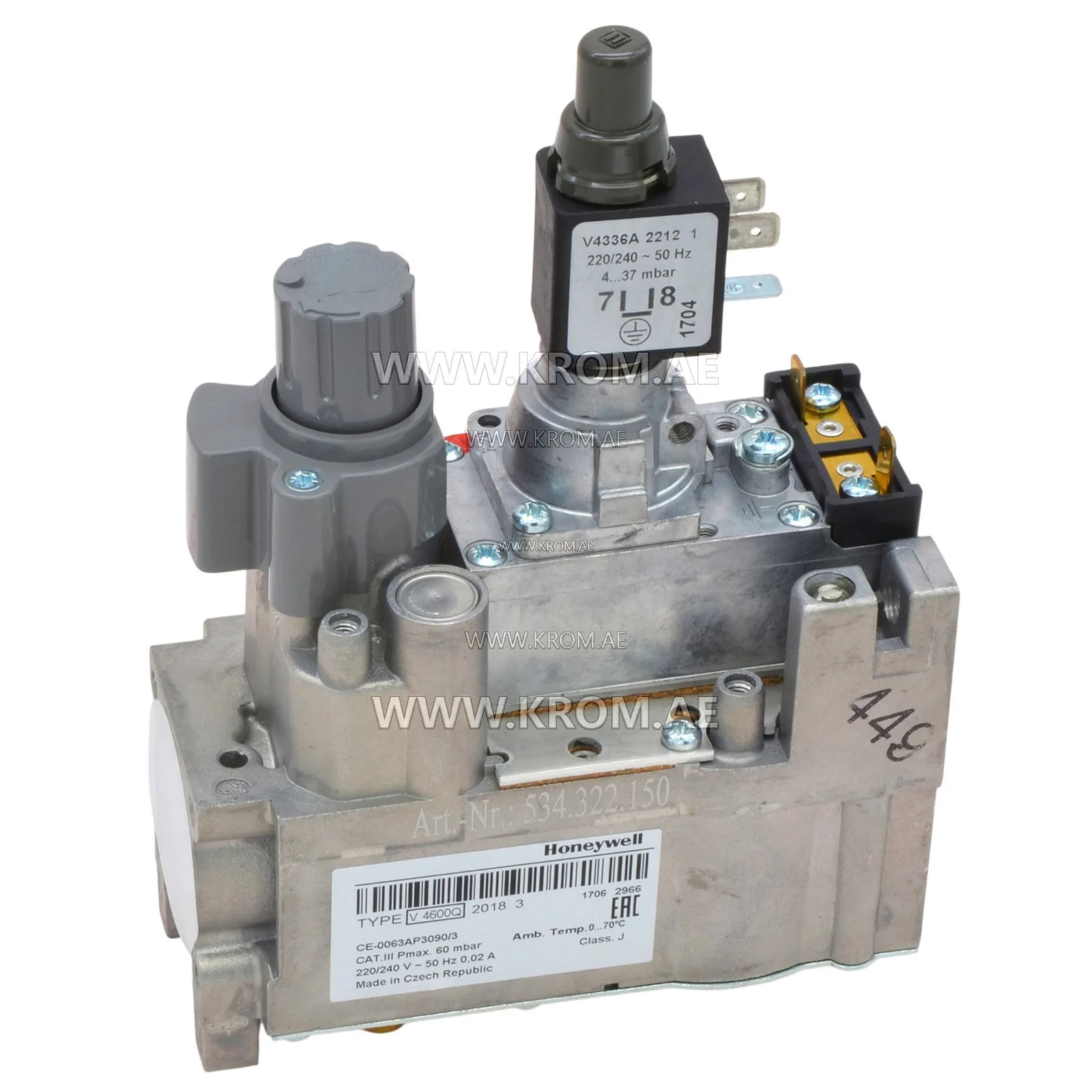

Honeywell V4600Q2018 gas valve – two-stage control for maximum comfort. The Honeywell V4600Q2018 valve is a servo-controlled combined gas device with a two-stage modulator. It integrates pilot flame control (Pilotstat), a servo actuator valve, and a pressure regulator. Two-stage operation: The main feature of the model is operation in two modes: full power and reduced power. This allows a smooth transition to operating mode and maintains a comfortable temperature without sharp fluctuations. The valve has a smooth opening with a two-stage regulator. Technical specifications: Power supply: 220/240 V, 50 Hz, 0.02 A; Maximum inlet pressure: 60 mbar (category III); Outlet pressure: 4…37 mbar; Regulator: V4336A2212; Connection: 1/2" x 1/2" BSP; Operating temperature: 0°C to +70°C; Protection class: J; Certification: CE-0063AP3090/3. Application: The valve is intended for domestic central heating systems, natural draft heating furnaces, hot water boilers, and water heaters. It works with a Honeywell pilot burner, thermocouple, and room or boiler thermostat. Reliability and safety: In case of pilot flame failure or power loss, the valve instantly shuts off the gas supply. The built-in pressure regulator stabilizes outlet pressure regardless of inlet pressure fluctuations. Honeywell V4600Q2018 – the optimal solution for equipment requiring smooth power regulation. Order the original valve for reliable and comfortable operation of your heating system.
