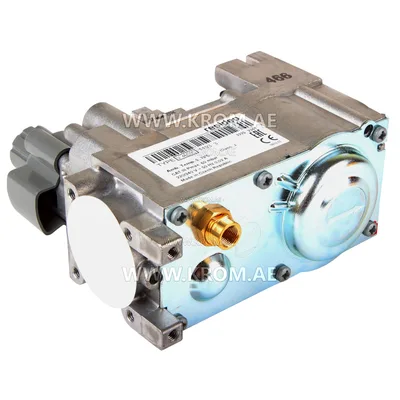

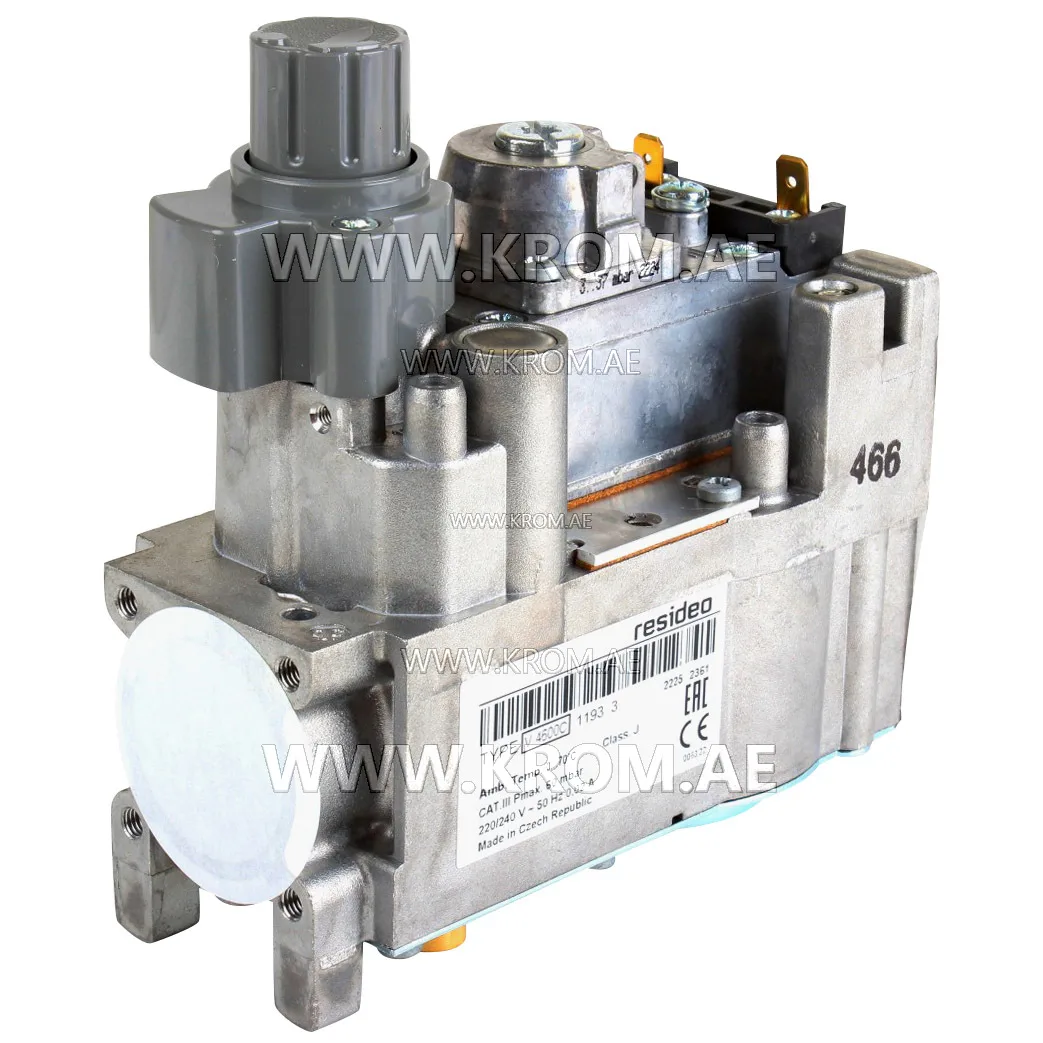

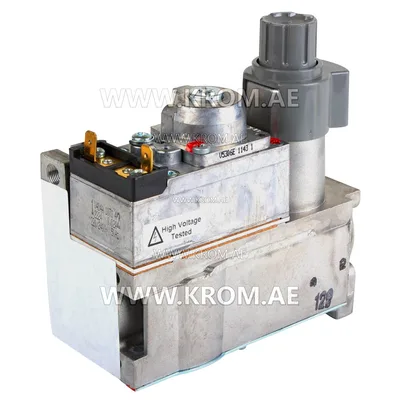

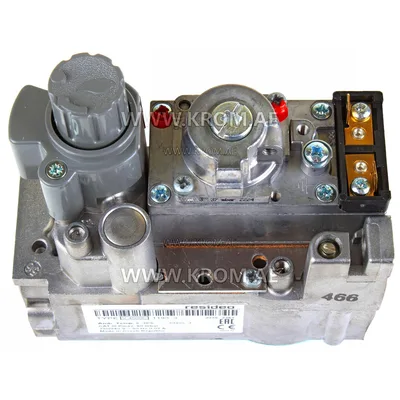

Honeywell V4600C1193 gas valve

Honeywell V4600C1193U gas valve – servo-controlled automatic control for boilers and water heaters. The Honeywell V4600C1193U valve is a combined servo-controlled gas device that integrates pilot flame control (Pilotstat), a servo actuator valve, and a pressure regulator in one housing. This integration simplifies installation and increases system reliability. Fully automatic operation: The valve provides fully automatic control of gas equipment when used with a Honeywell pilot burner, thermocouple, and thermal relay. The system independently monitors the flame and supplies gas to the main burner only when the pilot is operating correctly. Technical specifications: Power supply: 220/240 V, 50 Hz, 0.02 A; Maximum inlet pressure: 60 mbar (category III); Operating temperature: 0°C to +70°C; Protection class: J; Certification: CE-0063AP3090/3. Application: The valve is intended for domestic central heating systems, natural draft heating furnaces, hot water boilers, and water heaters. It works with a Honeywell pilot burner and thermocouple, ensuring safe operation of equipment with a continuously burning pilot. Reliability and safety: The V4600C1193U design guarantees instant gas shut-off in case of flame failure or power loss. The built-in pressure regulator stabilizes outlet pressure regardless of inlet pressure fluctuations. Honeywell V4600C1193U – a proven solution for your heating equipment. Order the original valve for reliable and safe system operation.
