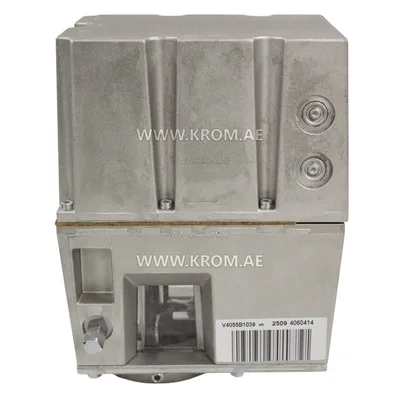

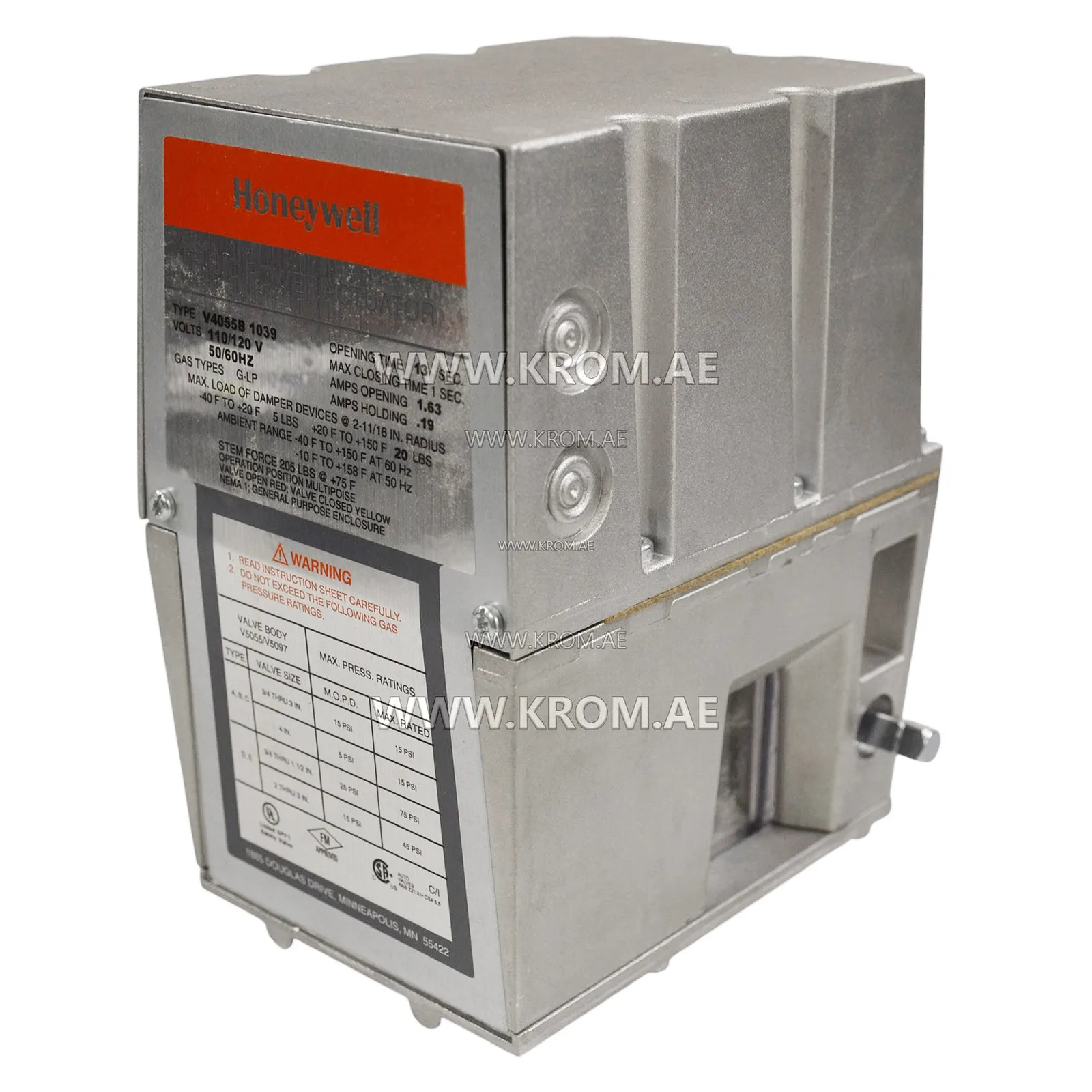

Honeywell V4055B1039 Modutrol actuator

Honeywell V4055B1039 actuator — a professional fluid (hydraulic) actuator designed for controlling gas valves in industrial and commercial burner equipment. This model provides slow opening (13 seconds) and instantaneous closing (less than 1 second), which is critical for safe ignition of high-power burners. In warehouse accounting systems, this device is also known under part number 534.712.133. Model V4055B1039/U is a complete analogue of V4055B1039 and has identical technical characteristics. Purpose and compatibility: The Honeywell V4055B1039 (Fluid Power Actuator) is designed to work with Honeywell gas valves of the V5055 series (sizes from 3/4" to 4") and V5097. It is used for remote gas supply control on industrial burners, in boiler rooms, and on process lines. Key applications: Control of natural gas or propane supply on industrial burners. Final gas shut-off in safety systems. Installation on burner panels and gas distribution points (GDP). Technical specifications: Parameter Value Manufacturer Honeywell (Honeywell ICT) Model / Part number V4055B1039 / V4055B1039/U Drive type On/Off (Open/Close), Fluid Power Supply voltage 120 V (110/120 V AC, 60 Hz) Opening time ~13 seconds Closing time Less than 1 second (fast spring return) Max. working pressure 15 or 25 PSI (~103 or 172 kPa) Temperature range From -40°F to +150°F (from -40°C to +66°C) Protection class NEMA 1 (IP30) — for indoor installation Compatible valves V5055A/B, V5055D, V5097A/B Position indication Red indicator — open, Yellow indicator — closed Design features Fluid (oil)
