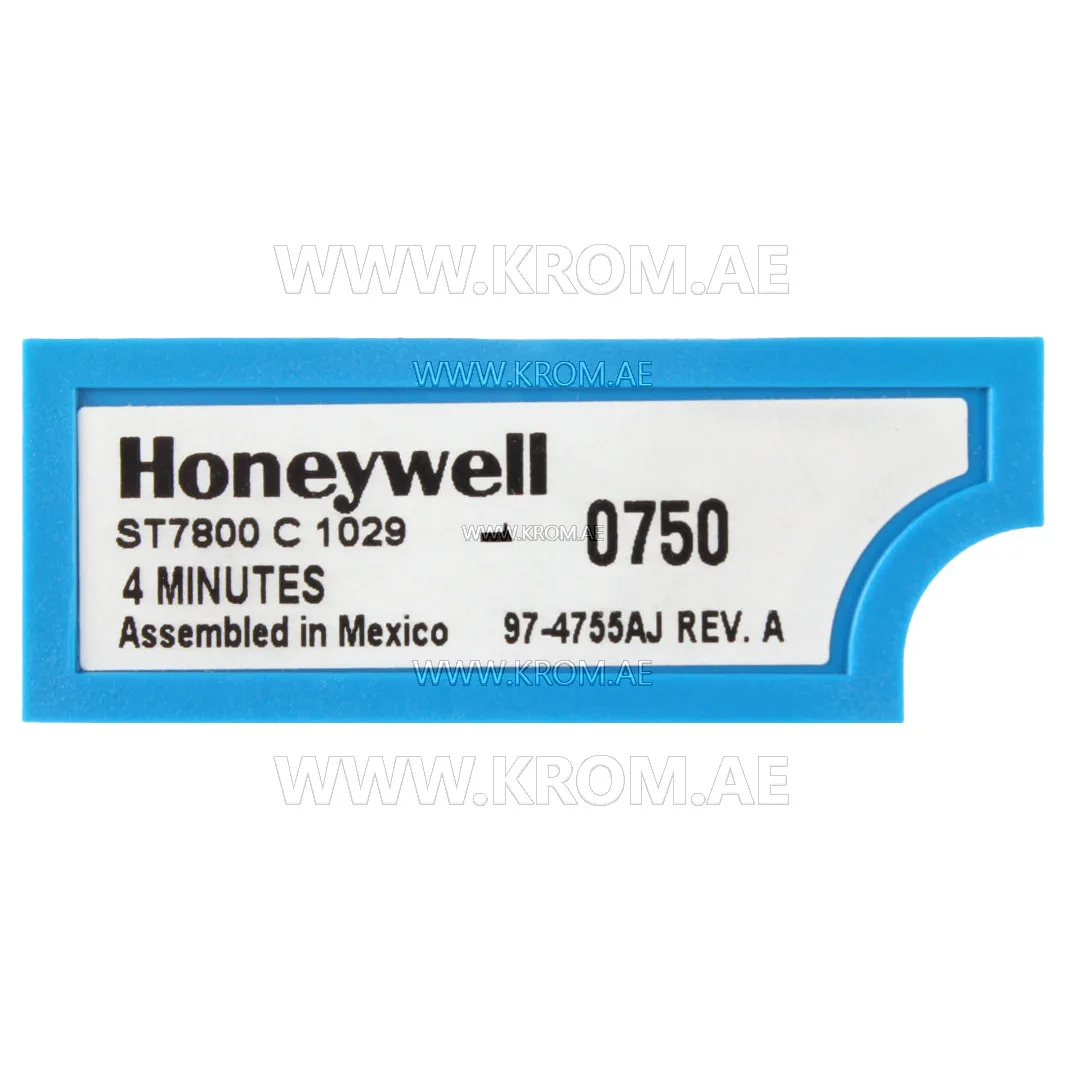

Honeywell ST7800C1029 prepurge timer module 4 min

The Honeywell ST7800C1029 is a prepurge timer module with a fixed setting of 4 minutes. Parts of this type are not standalone burner controls; they are plug‑in modules that define the prepurge phase within a compatible Honeywell flame safeguard system. The module determines how long the fan runs before ignition is attempted, ensuring that any residual combustible gases are cleared from the combustion chamber. The prepurge time is a critical safety parameter and must match the burner design and the relevant standard. For this reason, such modules are selected by their exact series designation and time value—a module with a shorter or longer prepurge period is not interchangeable unless the burner control is designed to accept that specific time. When replacing a prepurge timer module, confirm that the series marking on the existing module matches the replacement and that the time setting (here 4 minutes) is identical. The module itself does not generate the spark or open the fuel valves; it works as part of the control sequence where the flame safeguard reads pressure switches and flame signals and controls the ignition transformer, gas valve and fan. In a Honeywell system, the control base and the timer module must be from the same series; mixing components across different series can produce an unsafe sequence or a lockout condition. Selection is limited to the correct voltage and time rating as given on the original part; no adaptation or substitution is possible without engineering approval.
