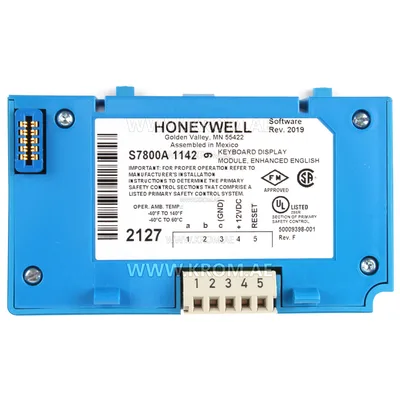

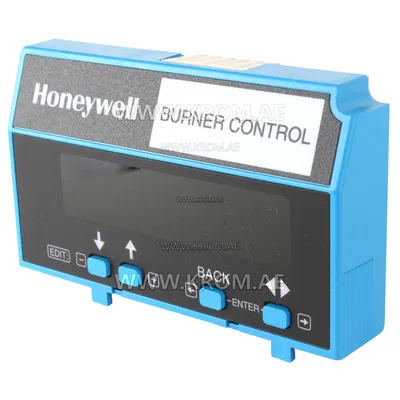

Honeywell S7800A1142 2-line VFD display, ENH EN

Honeywell S7800A1142 keyboard display module provides comprehensive information on the current status and operational sequence of the burner. Honeywell S7800 A 1142 display module data on time intervals, synchronization, lockouts, as well as user-defined and service priority messages. Honeywell S7800A 1142 keyboard display module is compatible with various relay modules, including RM7800, RM7840, RM7838, RM7895, RM7890, RM7885, and RM7823, offering versatile and convenient control for a range of systems. Honeywell S7800A1142 display module technical data: Dimensions: width - 123 mm; height - 73 mm; thickness - 23 mm Weight: 113g Ambient temperature: -40 C to +60 C (-40 F to +140 F) Power supply: 13 V peak two-half-period rectification (+20/-15%)
