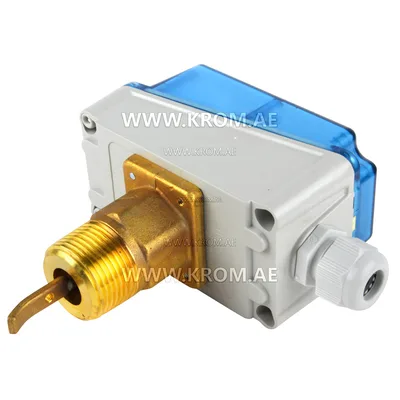

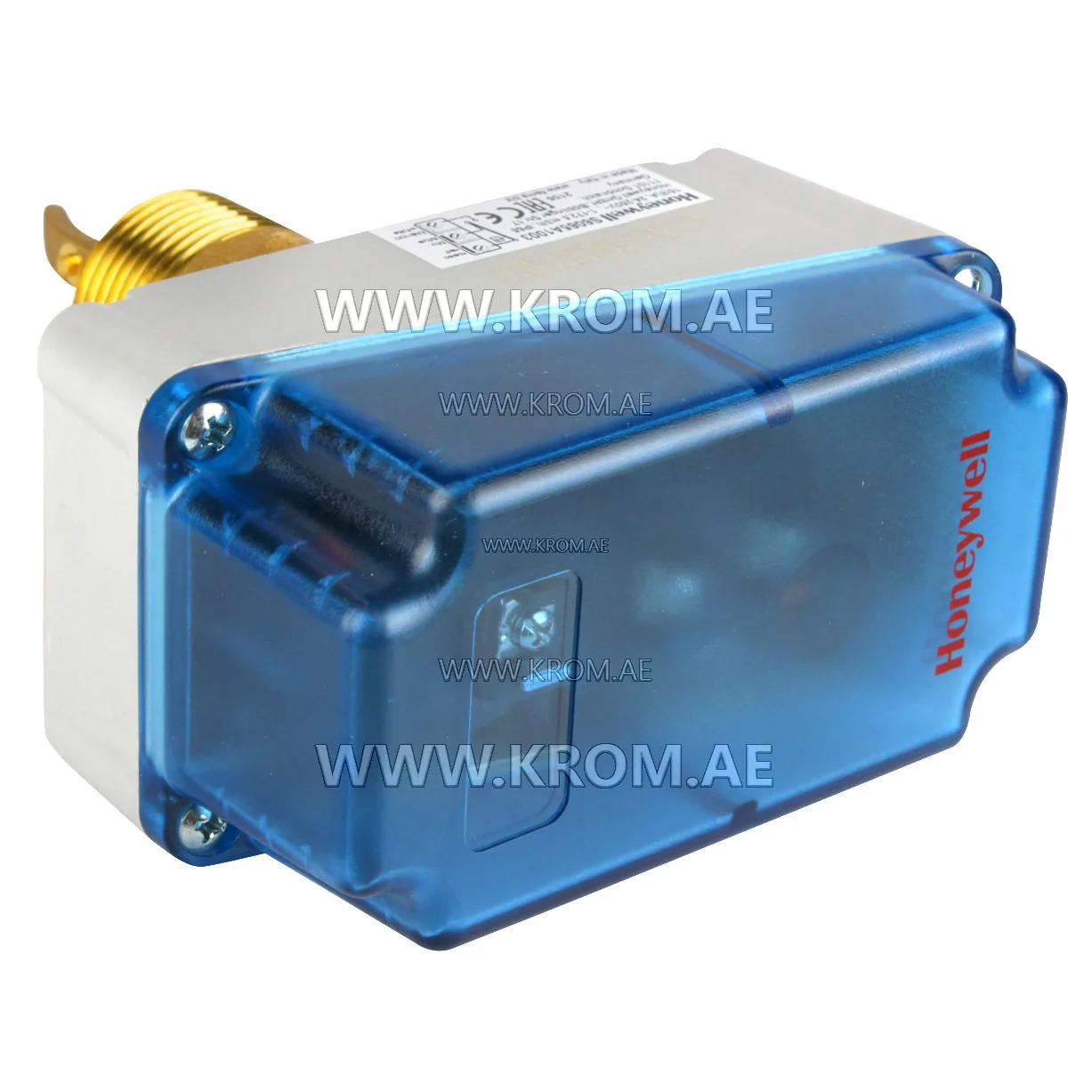

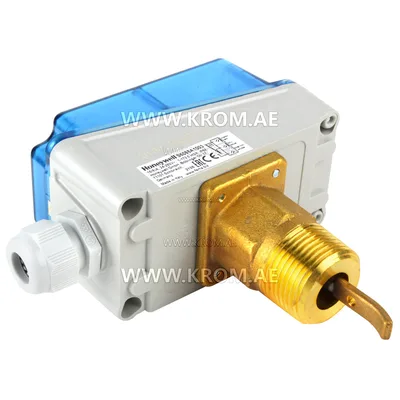

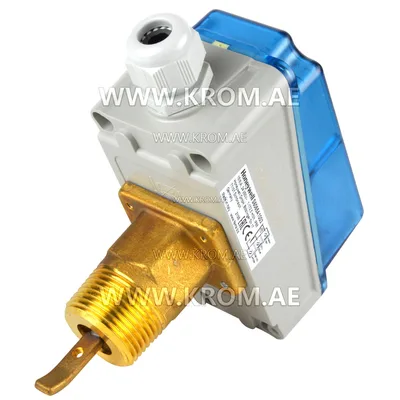

Honeywell S6065A1003 flow switch

Honeywell S6065A1003 liquid flow switch. Reliable flow control for water and oils in HVAC, cooling and heating systems. Honeywell S6065A1003 flow switch is a high-quality paddle-type flow switch designed for monitoring the flow of non-aggressive liquids in pipelines. This model is widely used in heating, ventilation, air conditioning, cooling and lubrication systems to control the flow of water, oils and coolants. If your pump or climate equipment fails due to dry running or overheating, the flow switch will timely shut down the system when the flow drops below the set limit, preventing a serious accident. Installing an accurate original replacement guarantees quick restoration of system operability. Technical specifications: Parameter Value; Part numbers S6065A1003, 534.673.003; Manufacturer Honeywell (Germany); Type Liquid flow switch, paddle type; Working medium Non-aggressive liquids (water, oil, coolants); Working pressure 11 bar; Medium temperature up to 120 °C (short-term), operating: -40...+85°C; Ambient temperature from -40°C to +85°C (at max. 90% relative humidity); Switching capacity 15 (8) A, 24...250 V AC; Contact type SPDT (Single Pole Double Throw: NC/NO); Contact life 50,000 cycles at rated load; Pipe connection Thread Rp 1" (internal) ISO7-1; Enclosure protection class IP65 (dust-tight, protected against water jets); Housing material ABS plastic and corrosion-resistant steel; Blade material Stainless steel 1.4401; Lever material Brass (yellow); Sensor housing material Brass (yellow); Housing dimensions (L x W x H) 113 x 70 x 65 mm; Pipe diameter range 1 - 8 inches; Weight 0.85 kg; Certifications
