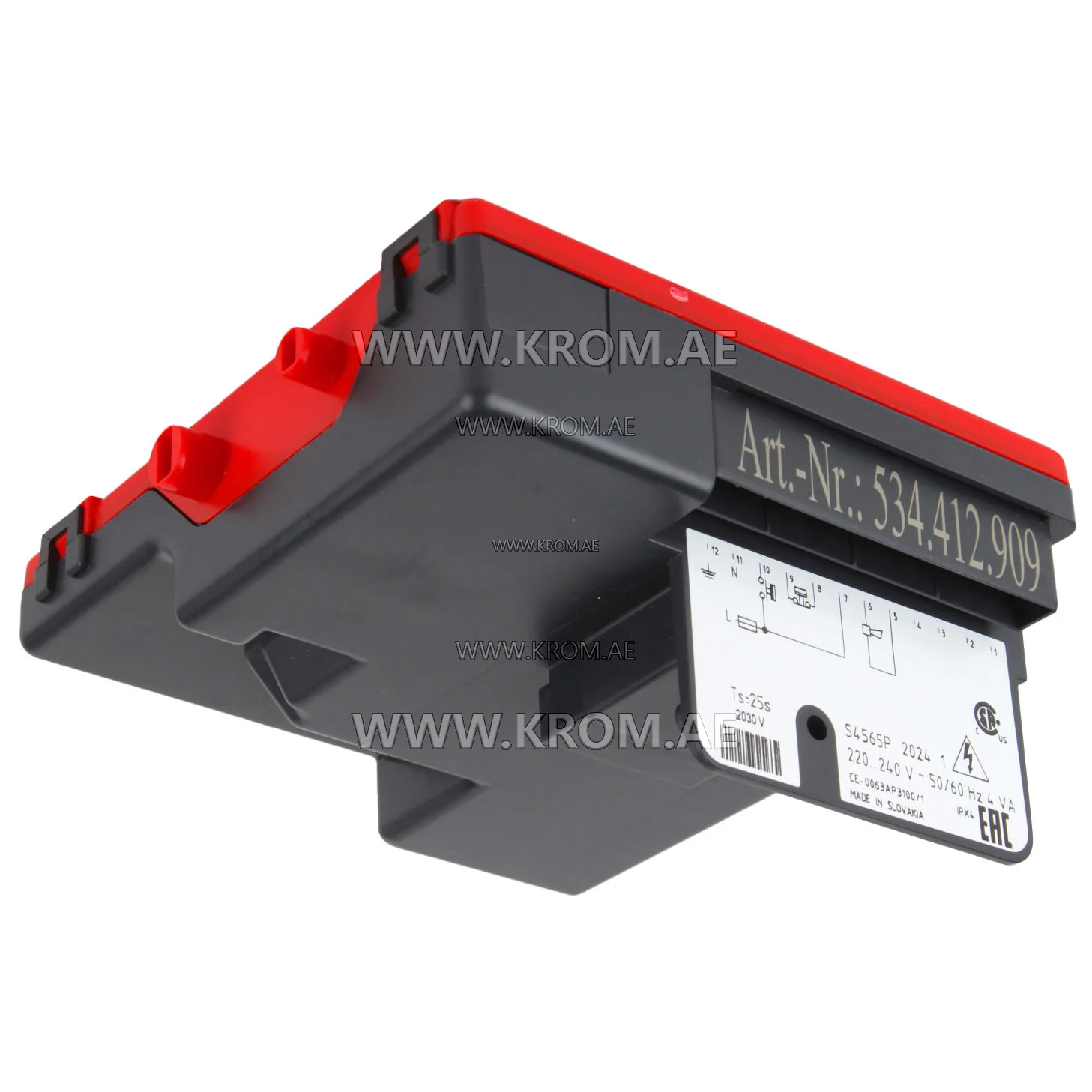

Honeywell S4565P2024 control box

The Honeywell S4565P2024 is a burner control box, also referred to as a flame safeguard, listed under catalogue article 534.412.909. Parts of this type manage the entire ignition and safety sequence of an industrial or commercial burner. They receive the heat demand signal, initiate pre-purge by starting the fan and verifying airflow through an air pressure switch, then energise the ignition transformer and open the fuel valve within a defined safety time. The control monitors the flame signal—typically from an ionisation electrode on gas burners or a UV/IR detector on oil burners—and locks out the burner if flame is not proven. It also drives the fan, ignition transformer, and fuel valve directly. Selection of a replacement control box must be based on the exact series and type designation, supply voltage, and the specific safety and pre-purge times required by the burner. A control from a different series within the same brand is not automatically interchangeable; mismatched timing creates a safety hazard. The pattern of the base or plug connection must also match the existing wiring harness. Because no further technical data is provided for this article, the installer should verify these parameters against the original control and the burner manufacturer’s specifications before fitting.
