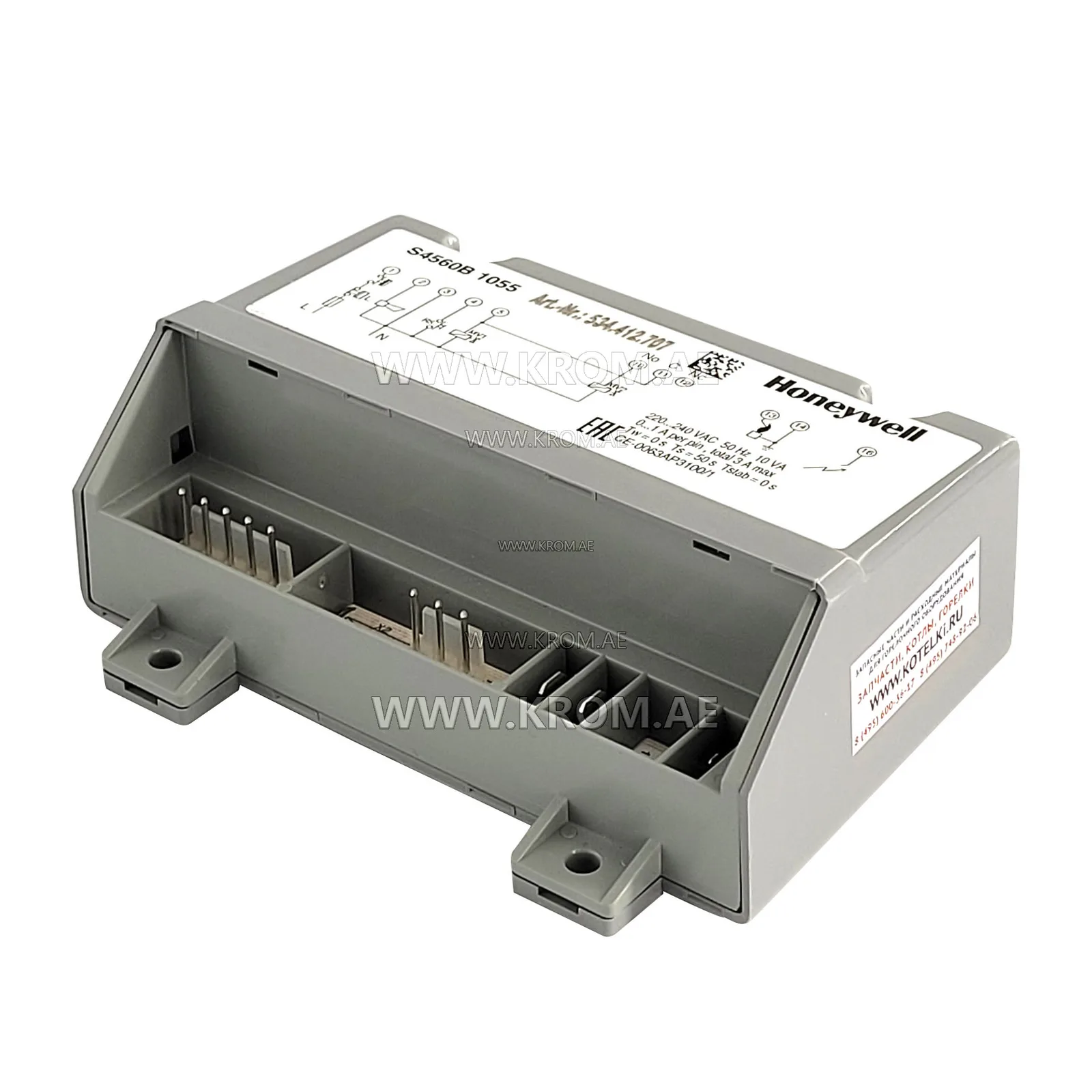

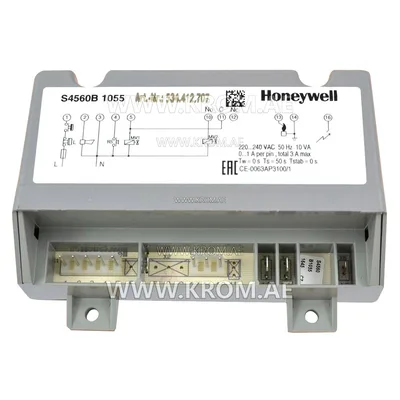

Honeywell S4560B1055 gas boiler control unit
The Resideo S4560B1055U burner control unit provides ignition and control of burners in accordance with EN 298 standard. The suffix "B" in the name of the Honeywell S4560B 1055U relay means: for atmospheric gas burners, except for the built-in flame control relay for installations with smooth control. Rigid locking in accordance with EN 298 standard. Timings Safe time 50 s Self-test time 2.5 s Waiting time 0 s Electrical power Supply voltage 220/240 V; 50 Hz; 10 VA Nominal contact Fanat - Gas valves 220/240 V; 1 A; SYMBOL COS 70 \f "Symbol" = 0.6 Electrical connection Molex 3001 multi-edge connector High voltage spark 2.8 x 0.5 mm with blade terminal Flame extinguisher and grounding tip of the shovel with a size of 6.3 x 0.8 mm Lock/Reset Non-volatile blocking Resetting the remote Manual Mounting Case dimensions 137 x 86 x 49 mm Mounting holes 4.5 mm General remarks Direct (main) ignition of the burner - Intermittent control ignition yes Flame relay output yes Fan with support - The absence of internal ignition is a flame. a circle. for Italy - Quick launch option - Flame sens. traffic connection - Blocking during flame simulation - Blocking in the absence of air - Gas valve + GPS connection - TTB switch connection - Input signal protection from reset - General considerations The Honeywell S4560 B 1055U burner control unit must be equipped with external fuses to ensure safety. This item does not contain any parts that require maintenance. Any attempt to replace its components may negatively affect the safety of the device and, therefore, is strictly prohibited. High temperatures can shorten the service life of the automatic ignition regulator. Therefore, in order to ensure long-term uninterrupted operation, it is necessary to place it in the place of the heating installation, where the temperature and radiation are minimal. If the automatic control box S4560B1055B is integrated into the installation, the overall protection class must be at least IP 40. This guarantees an appropriate degree of protection from external factors. To ensure safety and reliable operation, in addition, a maximum thermal relay should be installed, which will automatically turn off the automatic ignition regulator in case of overheating. To reduce radio interference, spark ignition electrode cables should be installed in a well-shielded compartment. This will help prevent possible interference and ensure stable operation of the system. System operation If heating is required, the waiting period (Tw) expires before the built-in or external ignition device and the gas valve are switched on. Ignition occurs by means of a spark that ignites the gas, and then the resulting flame is detected by the flame sensor rod. Immediately after the flame is established, the internal ignition device is switched off, and, if provided, after the stabilization time is completed, the external ignition is also switched off. If the flame is not set during the safe ignition time (TS), the automatic ignition control is blocked. If the flame goes out during normal operation, the automatic ignition control repeats the ignition sequence. If the S4560B 1055B automatic gas firing device is connected to a liquefied gas valve and uses a gas pressure switch and a TTB combustion product relay, then this regulator waits for the gas pressure to appear and then starts the normal sequence. If the TTB relay is triggered, then all valves are switched off. To restart the sequence, the TTB relay must be reset. Reset the lock The reset of the Honeywell S4560 B 1055B boiler controller is performed by an external or internal reset button. If the first reset failed, then wait at least 15 seconds before the second attempt. The ignition machine Protherm, 0020027677 Honeywell is mounted on the boiler model - Grizzly - 65...150 KLO-12.
