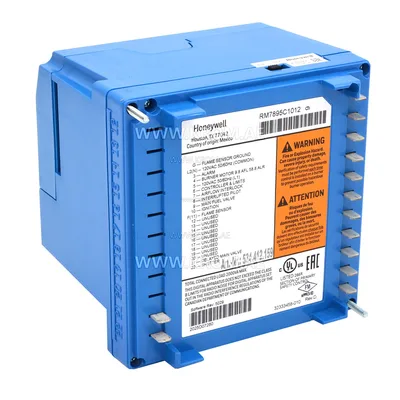

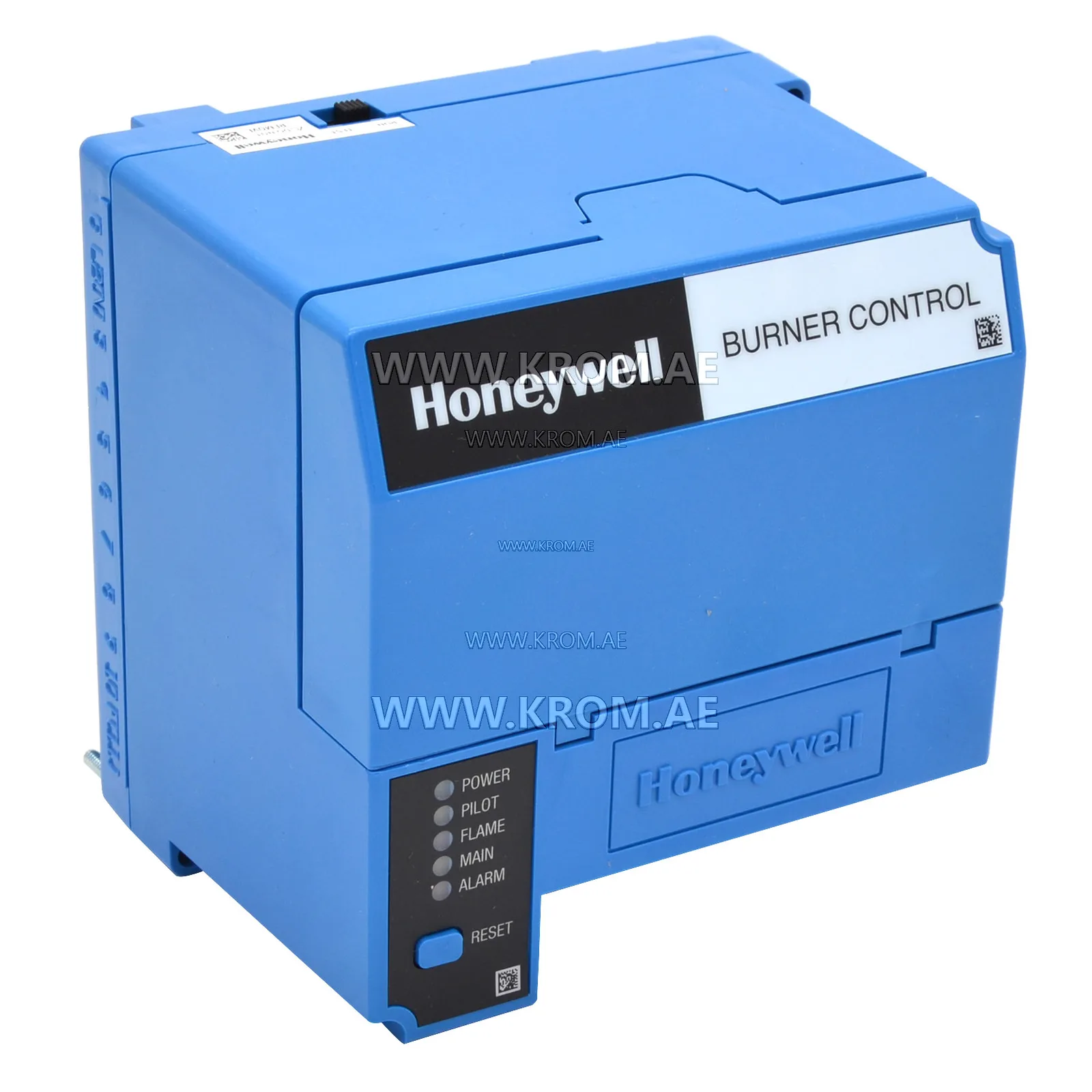

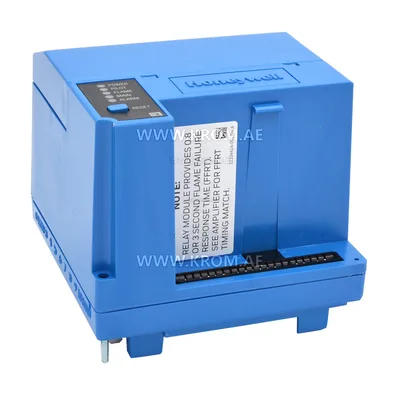

Honeywell RM7895C1012 burner control

Honeywell RM7895C1012 burner controller designed for single burner automatic systems operating on various fuels, including gas, liquid fuel, coal, or a combination thereof. This Honeywell RM7895C1012 burner control provides exceptional safety and functionality, significantly outperforming standard regulators in technical specifications. Key features of Honeywell RM7895C1012 automatic burner control unit include automatic control of burner operation sequences, flame monitoring, and system status indication. The system also performs diagnostics, enabling quick identification and resolution of faults. Additional benefits of Honeywell RM7895 C 1012 burner controller include enhanced reliability and safety due to advanced technologies and an expanded feature set, providing users with more efficient and stable burner management.  Honeywell RM7895 C 1012 burner control unit technical data: Dimensions: width - 127 mm; height - 127 mm; thickness - 133 mm with base Q7800A, thickness - 155 mm with base Q7800B Weight: 0.9 kg Ambient temperature: -40 C to +60 C (-40 F to +140 F) Power supply: 120 V (+10/-15%), 50/60 Hz (±10%) Honeywell RM7895C 1012 automatic burner control unit required components: Q7800A,B Universal mounting base with wiring R7847; R7848; R7849; R7886 Flame signal amplifiers ST7800A Removable Purge timer cards Honeywell RM7895 C 1012 burner control accessories: 123514A Flame Rectifier Simulator 203541 Electric 5-wire ControlBus connector 203659 UV Flame simulator 203765, 205321B, 204718A,B,C Mounting brackets for remote displays 203968A Remote display power supply (=13V) removable 221729A Dust Cover 221818A Extension cable set, 1524 mm long 221818C Extension cable set, 3048 mm long
