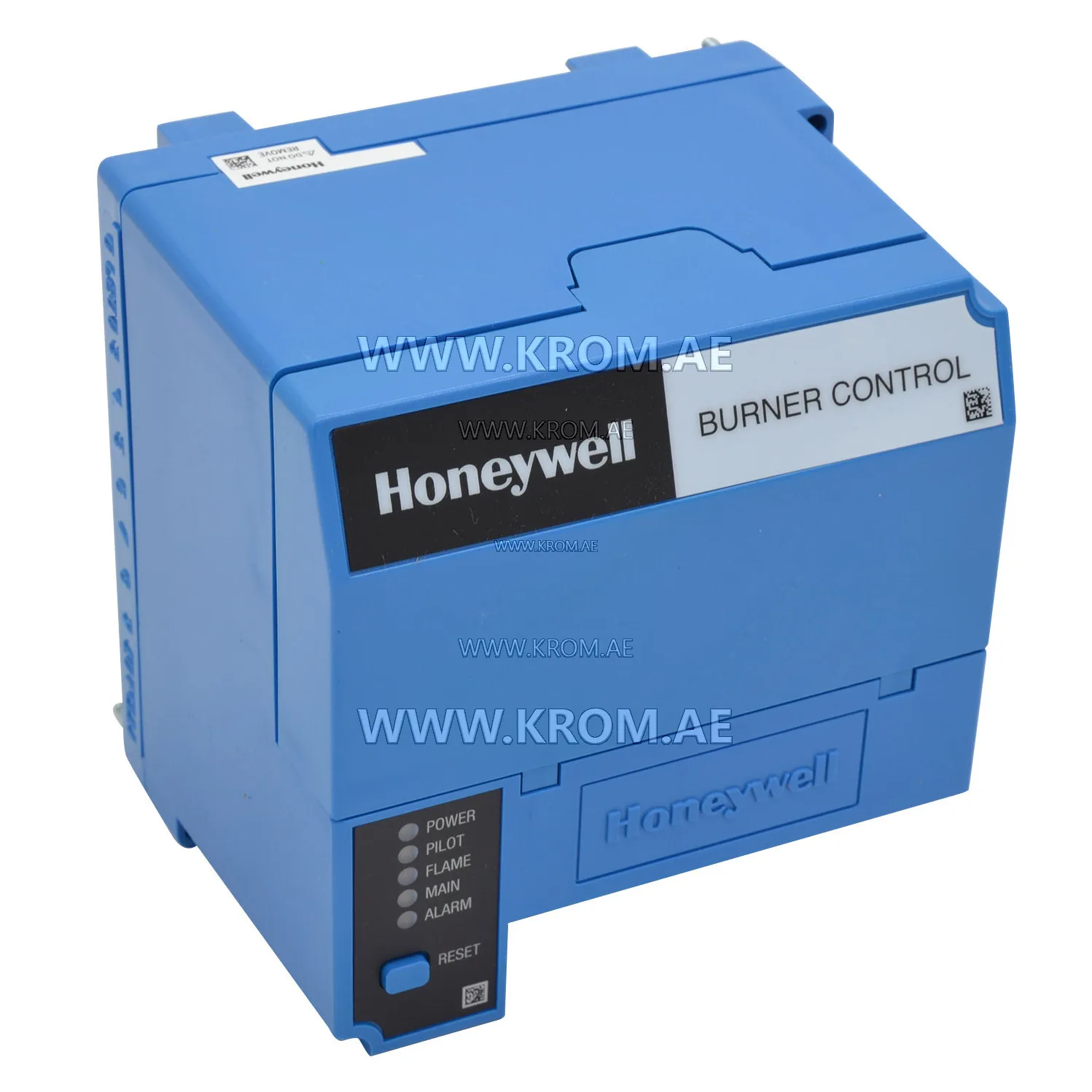

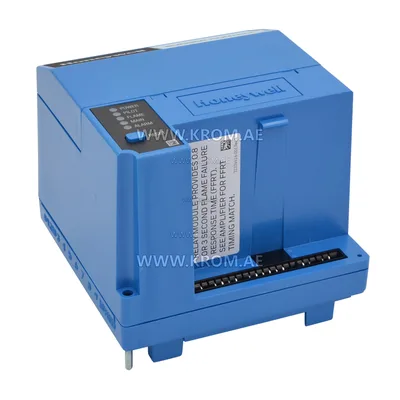

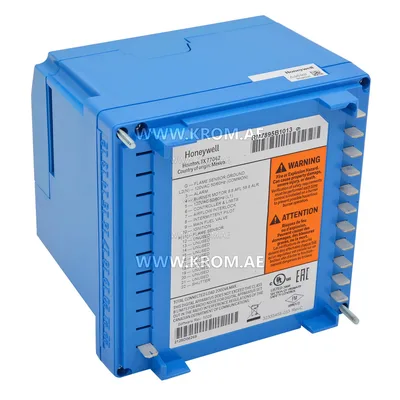

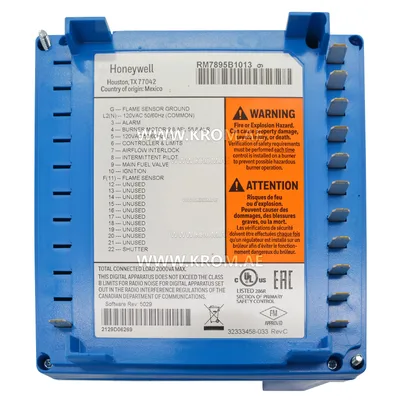

Honeywell RM7895B1013 burner control

Honeywell RM7895B1013 burner control designed for single burner automatic systems operating on gas, liquid fuel, coal, or combined fuel. Honeywell RM7895B1013 burner control unit offers higher safety levels, improved functionality, and better technical characteristics compared to standard regulators. Its functions include automatic sequencing of burner operations, flame monitoring, system status indication, system or self-diagnostics, and fault detection. Honeywell RM7895 B 1013 burner control unit technical data: Dimensions: width - 127 mm; height - 127 mm; thickness - 133 mm with base Q7800A, thickness - 155 mm with base Q7800B Weight: 0.9 kg Ambient temperature: -40 C to +60 C (-40 F to +140 F) Power supply: 120 V (+10/-15%), 50/60 Hz (±10%) Honeywell RM7895B 1013 automatic burner control unit required components: Q7800A,B Universal mounting base with wiring R7847; R7848; R7849; R7886 Flame signal amplifiers ST7800A Removable Purge timer cards Honeywell RM7895 B 1013 burner control accessories: 123514A Flame Rectifier Simulator 203541 Electric 5-wire ControlBus connector 203659 UV Flame simulator 203765, 205321B, 204718A,B,C Mounting brackets for remote displays 203968A Remote display power supply (=13V) removable 221729A Dust Cover 221818A Extension cable set, 1524 mm long 221818C Extension cable set, 3048 mm long
