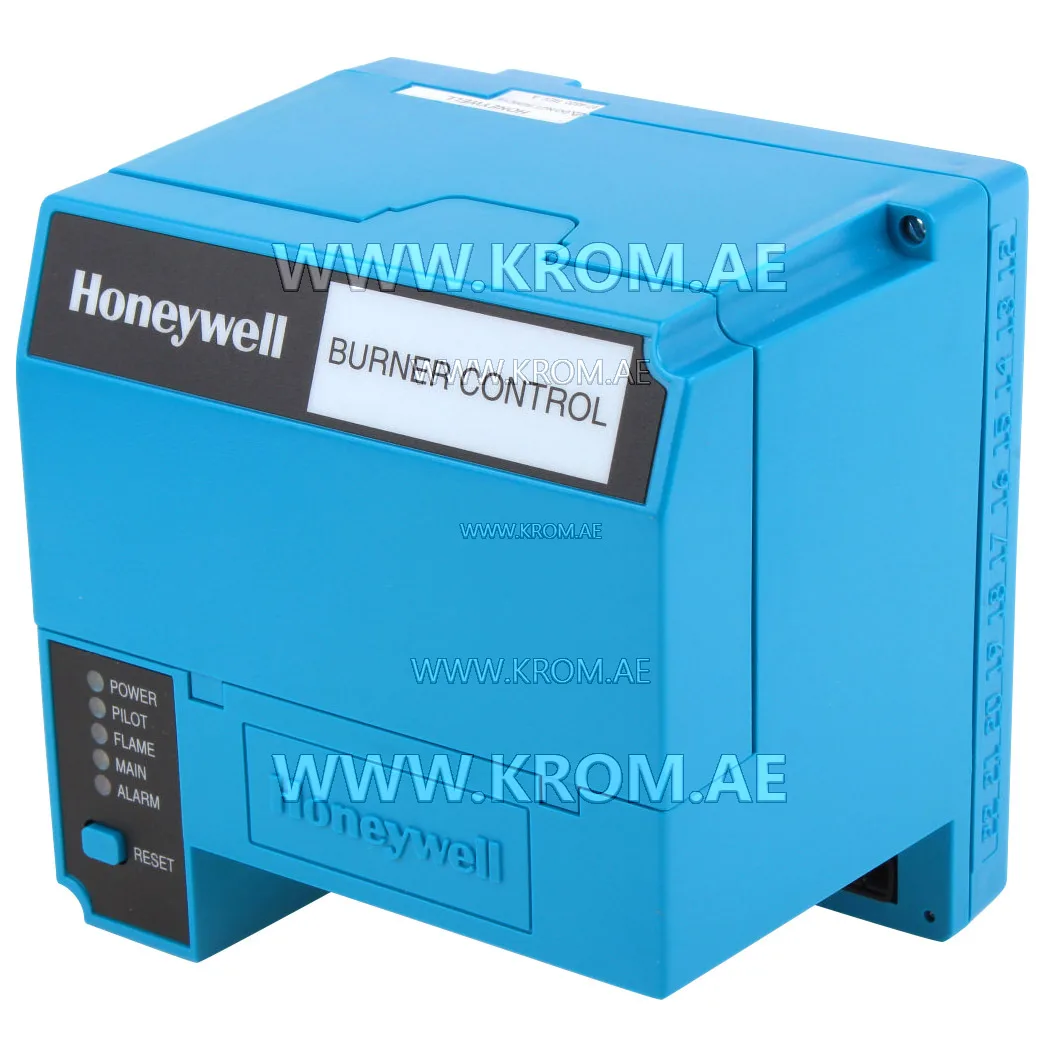

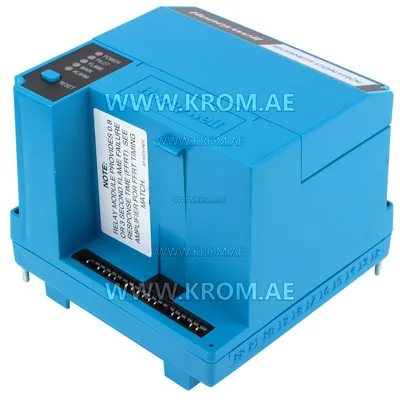

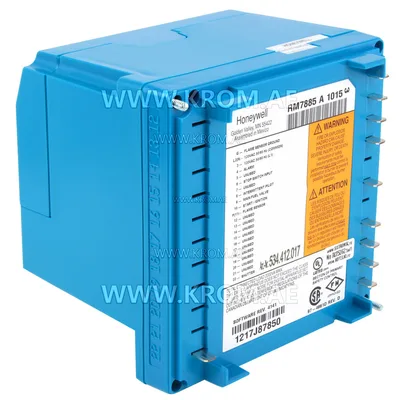

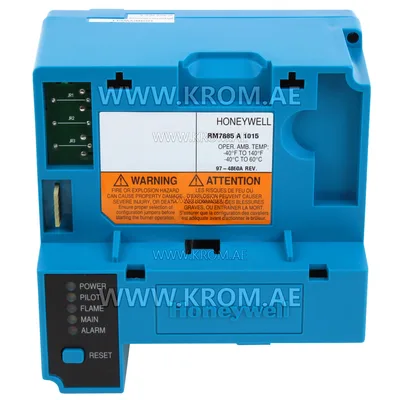

Honeywell RM7885A1015 burner control

The Honeywell RM7885A1015 is a burner control, also referred to as a flame safeguard. A part of this type manages the entire ignition and safety sequence for an industrial burner. It executes pre-purge, ignition, fuel admission, and flame proving within programmed safety times. On failure to establish a stable flame within the allowed time, it locks out and must be reset manually. The control reads signals from the air pressure switch, gas pressure switch, and the flame detector (ionisation, UV, or IR), and it drives the ignition transformer, gas valve, and fan motor. When selecting a replacement burner control, the exact series and type designation must be matched. The supply voltage, safety and pre-purge times, flame detection method, and the base or plug pattern are all critical parameters. Controls of different series, even from the same brand, are generally not interchangeable. Using a unit with mismatched safety times creates a safety hazard rather than a mere inconvenience. On modern electronic boards (PCBs) found in wall-hung boilers, the control is integrated and must match the boiler model exactly. This specific article is listed under the catalogue number 534.412.017 and manufacturer code RM7885A1015/U. No further specifications about its voltage, timings, or compatibility are provided here. To confirm a correct replacement, consult the original burner documentation or the control’s own nameplate for its ratings.
