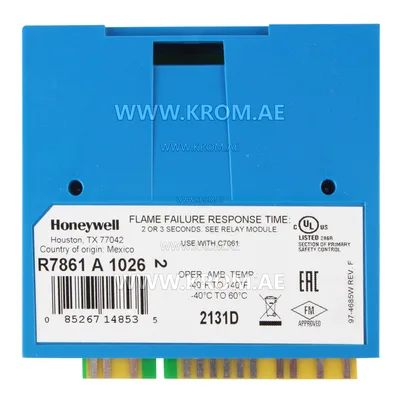

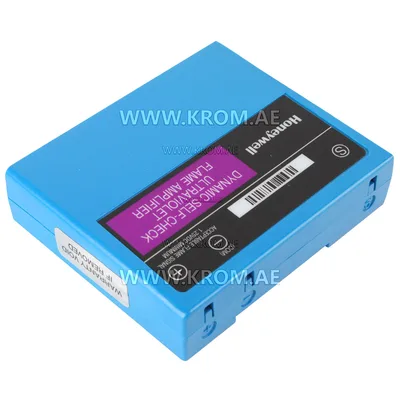

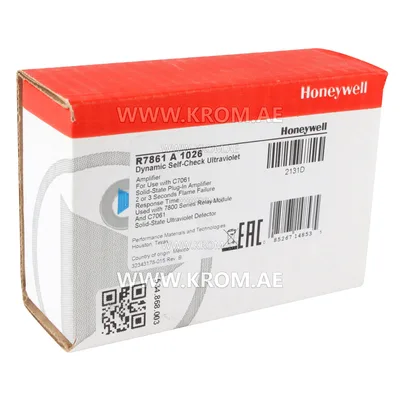

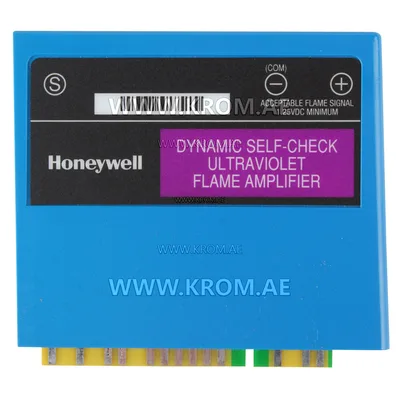

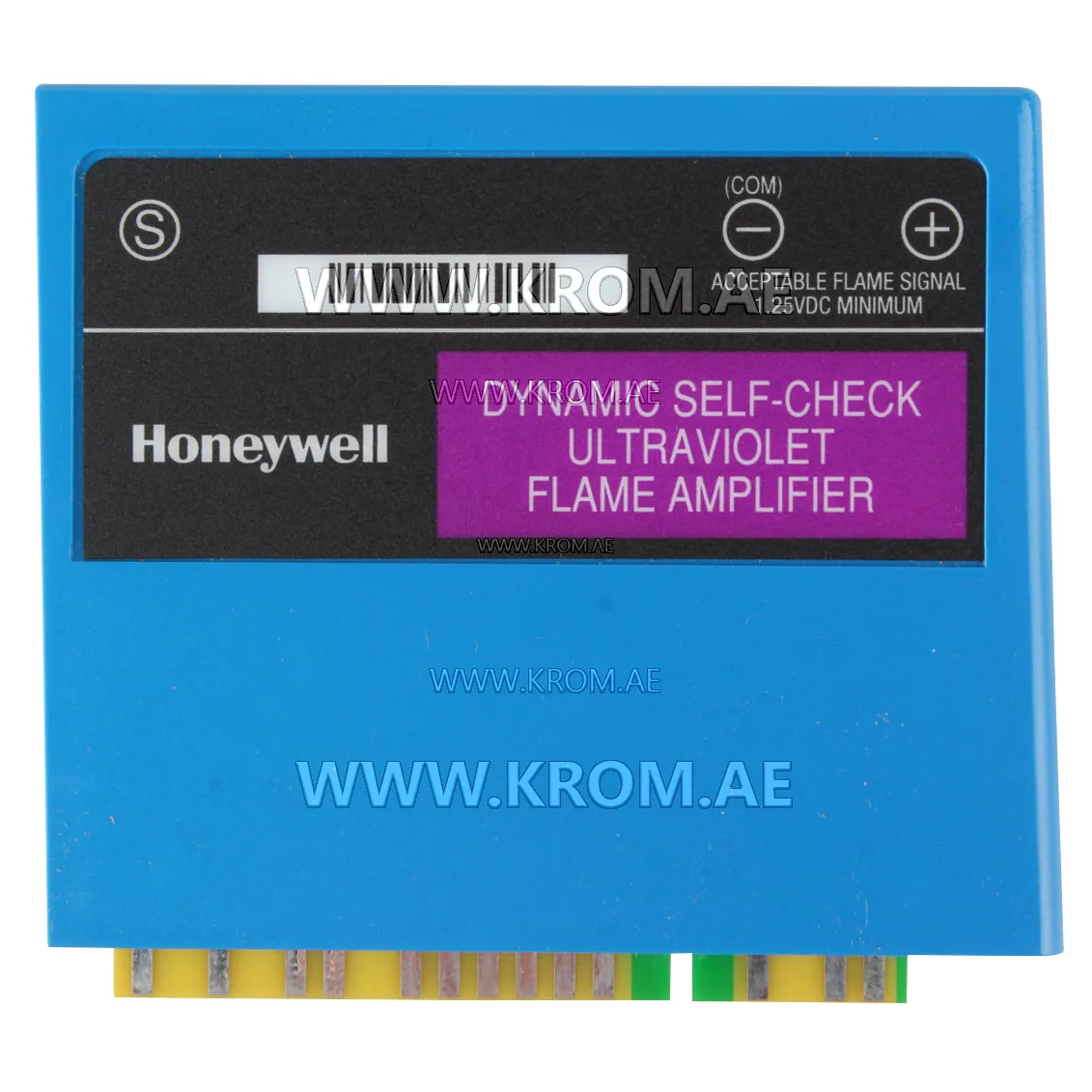

Honeywell R7861A1026 self check UV amplifier 3.0/2.0s, C7061

Honeywell R7861 A 1026 amplifier checks the detectors and all electronic components of the flame detection system 12 times per minute. Honeywell R7861A1026 amplifier technical data The intensity of the flame signal is in the range from 0 to 5.0 V. They connected to the 7800 relay module via the edge connector of the printed circuit board, configured for its own orientation. Flame signal control sockets for measuring the voltage of the flame signal on the amplifier. Dimensions: width - 91 mm, height - 85mm, thickness - 23mm. Weight: 70 g Ambient temperature: -40 C to +60 C Accessories: 123514A Flame Rectifier simulator. 203659 is an ultraviolet flame simulator.
