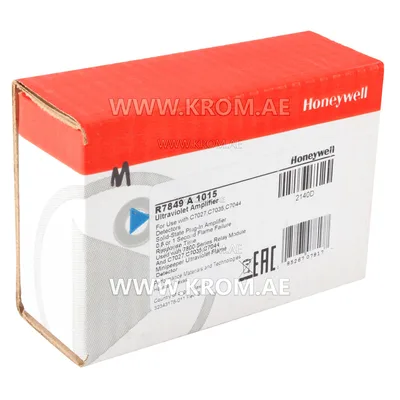

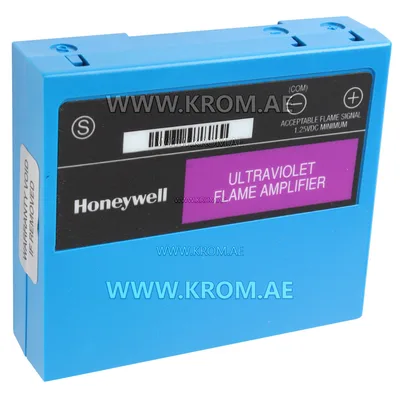

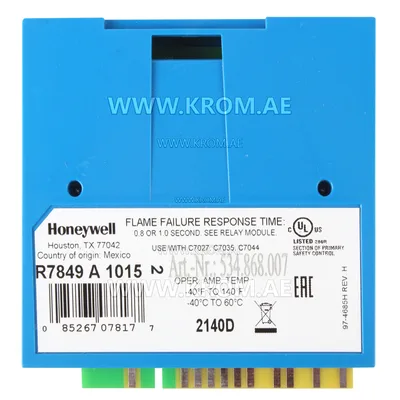

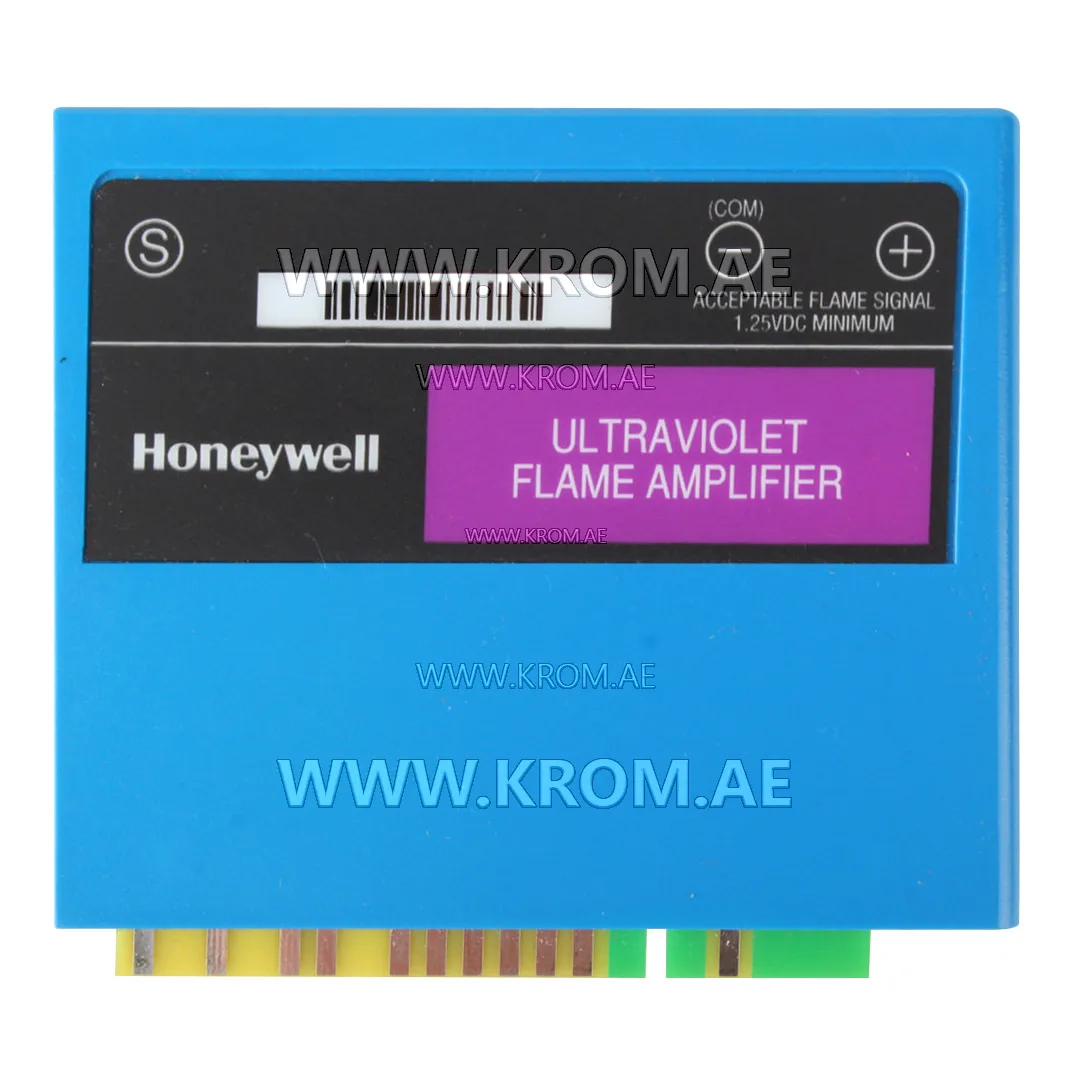

Honeywell R7849A1015 UV amplifier 0.8/1.0s, C7027

Honeywell R7849A1015 infrared flame signal amplifiers are solid–state modular amplifiers that respond to a signal from the C7027, C7035 or C7044 infrared flame detector, indicating the presence of a flame when used with 7800 and R7140 series relay modules. Honeywell R7849A 1015 amplifier technical data The intensity of the flame signal is in the range from 0 to 5.0 V. They connected to the 7800 relay module via the edge connector of the printed circuit board, configured for its own orientation. Flame signal control sockets for measuring the voltage of the flame signal on the amplifier. Dimensions: width - 91 mm, height - 85mm, thickness - 23mm. Weight: 70 g Ambient temperature: -40 C to +60 C Accessories: 123514A Flame Rectifier simulator. 203659 is an ultraviolet flame simulator.
