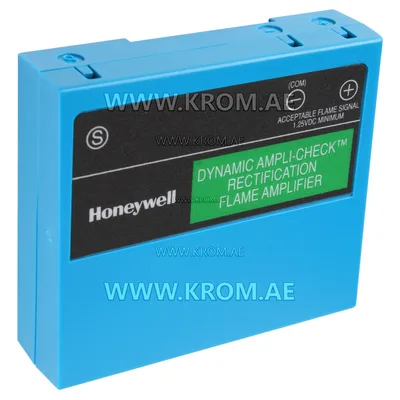

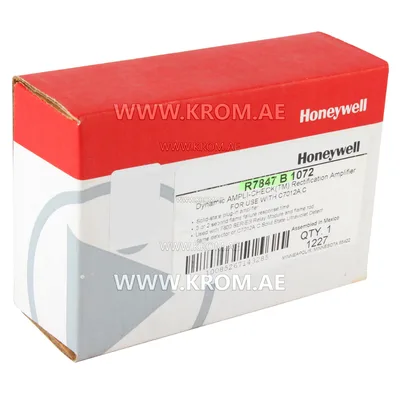

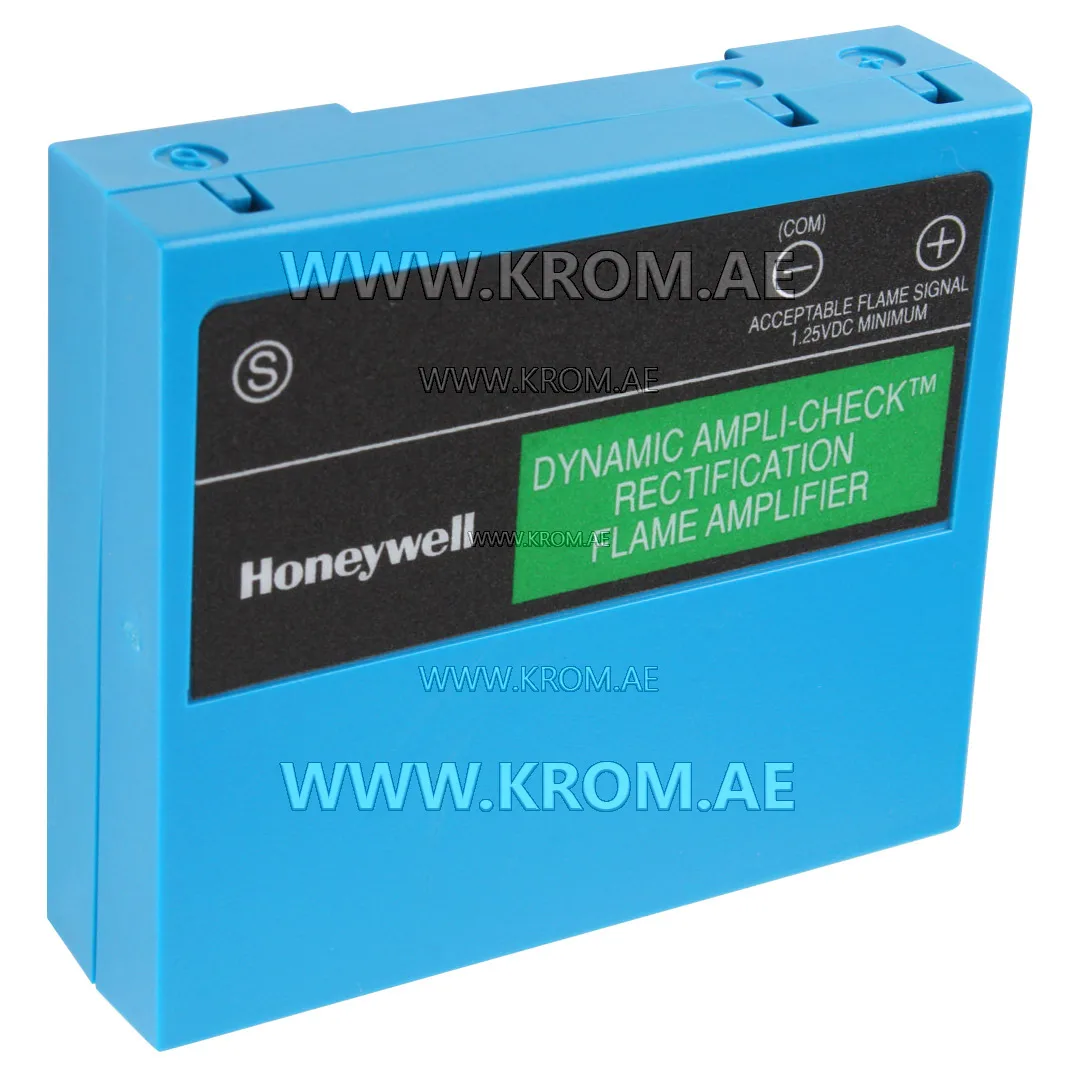

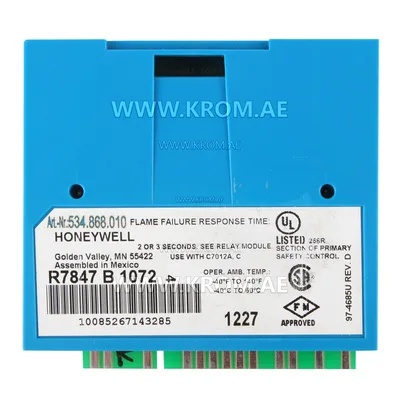

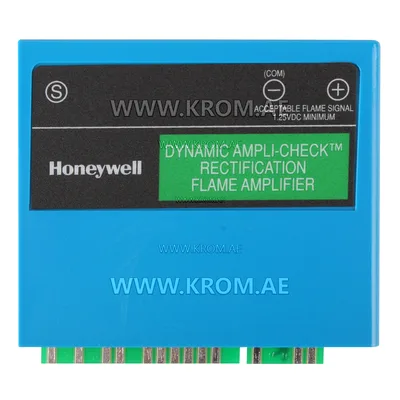

Honeywell R7847B1072 rectification flame amplifier 3.0/2.0s, LLW, C7012A/C

Honeywell R7847 B 1072 are dynamic self-checking amplifiers that operate based on flame rectification. These solid-state removable amplifiers Honeywell R7847 B 1072, when used with 7800 series relay modules, respond to input signals from the flame detector to indicate the presence of a flame. Honeywell R7847 B 107 2 amplifier technical data Flame signal control sockets for measuring the voltage of the flame signal on the amplifier. Dimensions: width - 91 mm, height - 85mm, thickness - 23mm. Weight: 70 g The intensity of the flame signal is in the range from 0 to 5.0 V. They connected to the 7800 relay module via the edge connector of the printed circuit board, configured for its own orientation. Ambient temperature: -40 C to +60 C Accessories: 123514A Flame Rectifier simulator. 203659 is an ultraviolet flame simulator.
