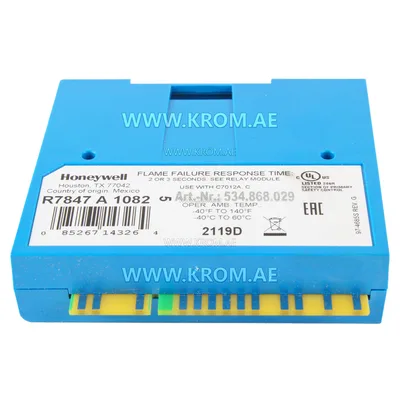

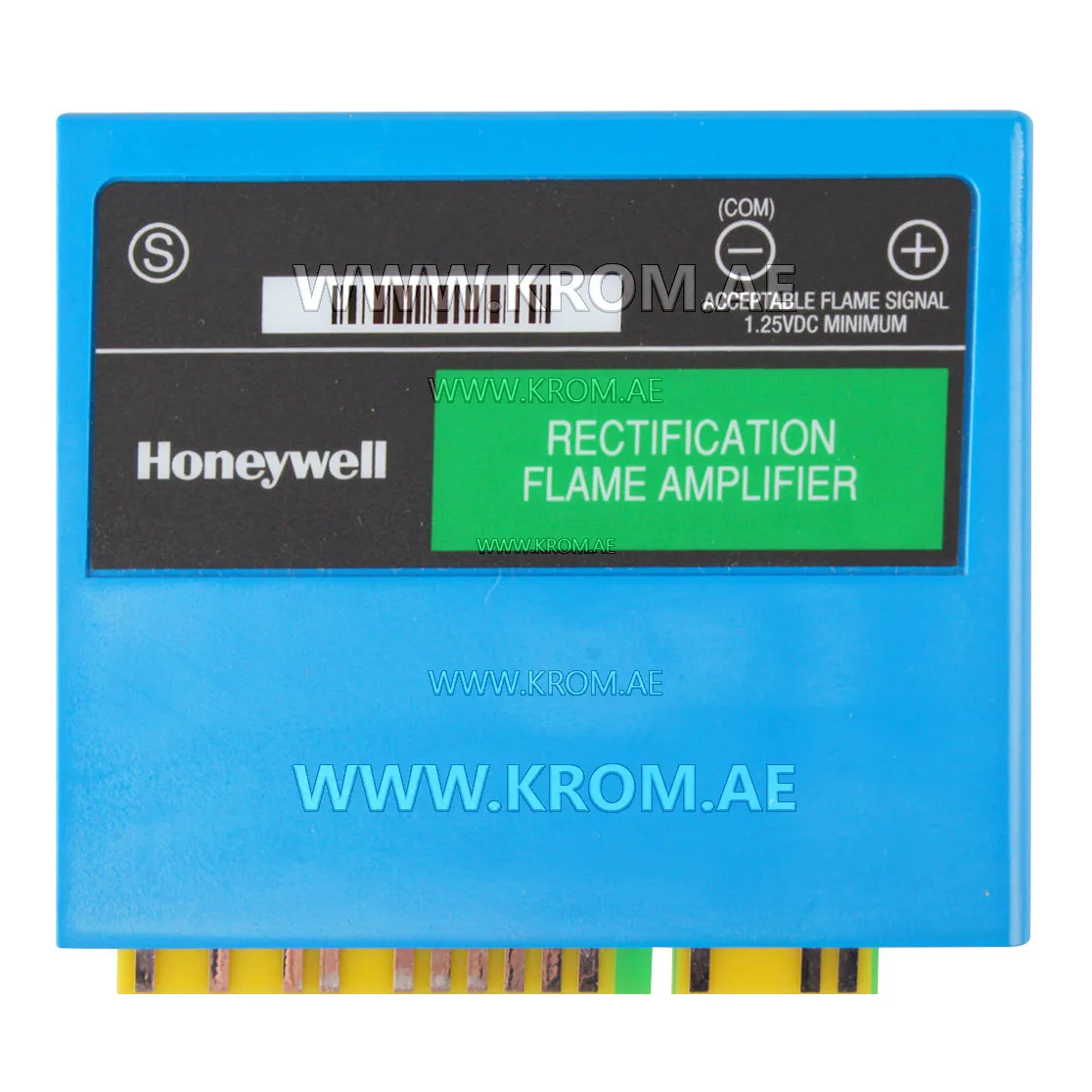

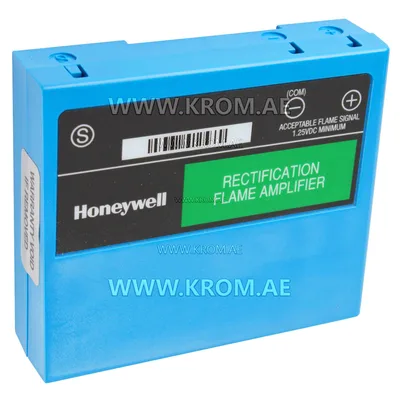

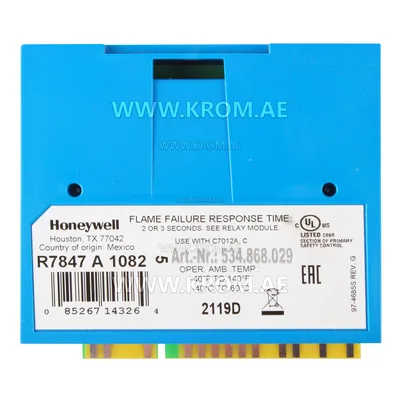

Honeywell R7847A1082 rectification flame amplifier 3.0/2.0s, LLW, C7012A/C

Honeywell R7847A1082 are advanced amplifiers with dynamic self-checking capabilities that operate based on the principle of flame rectification. These Honeywell R7847 A 1082 amplifiers are solid-state and removable, which makes them convenient for maintenance and replacement. Honeywell R7847A 1082 used in conjunction with the 7800 series relay modules, ensuring a reliable response to input signals from the flame detector. This combination allows for accurate detection and indication of the presence of a flame, significantly enhancing the safety and efficiency of the system. Honeywell R7847A 1082 amplifiers are utilized in various industrial and commercial applications where reliable flame detection is required. Honeywell R7847 A 1082 amplifier technical data: The intensity of the flame signal is in the range from 0 to 5.0 V. They connected to the 7800 relay module via the edge connector of the printed circuit board, configured for its own orientation. Flame signal control sockets for measuring the voltage of the flame signal on the amplifier. Dimensions: width - 91 mm, height - 85mm, thickness - 23mm. Weight: 70 g Ambient temperature: -40 C to +60 C Accessories: 123514A Flame Rectifier simulator. 203659 is an ultraviolet flame simulator.
