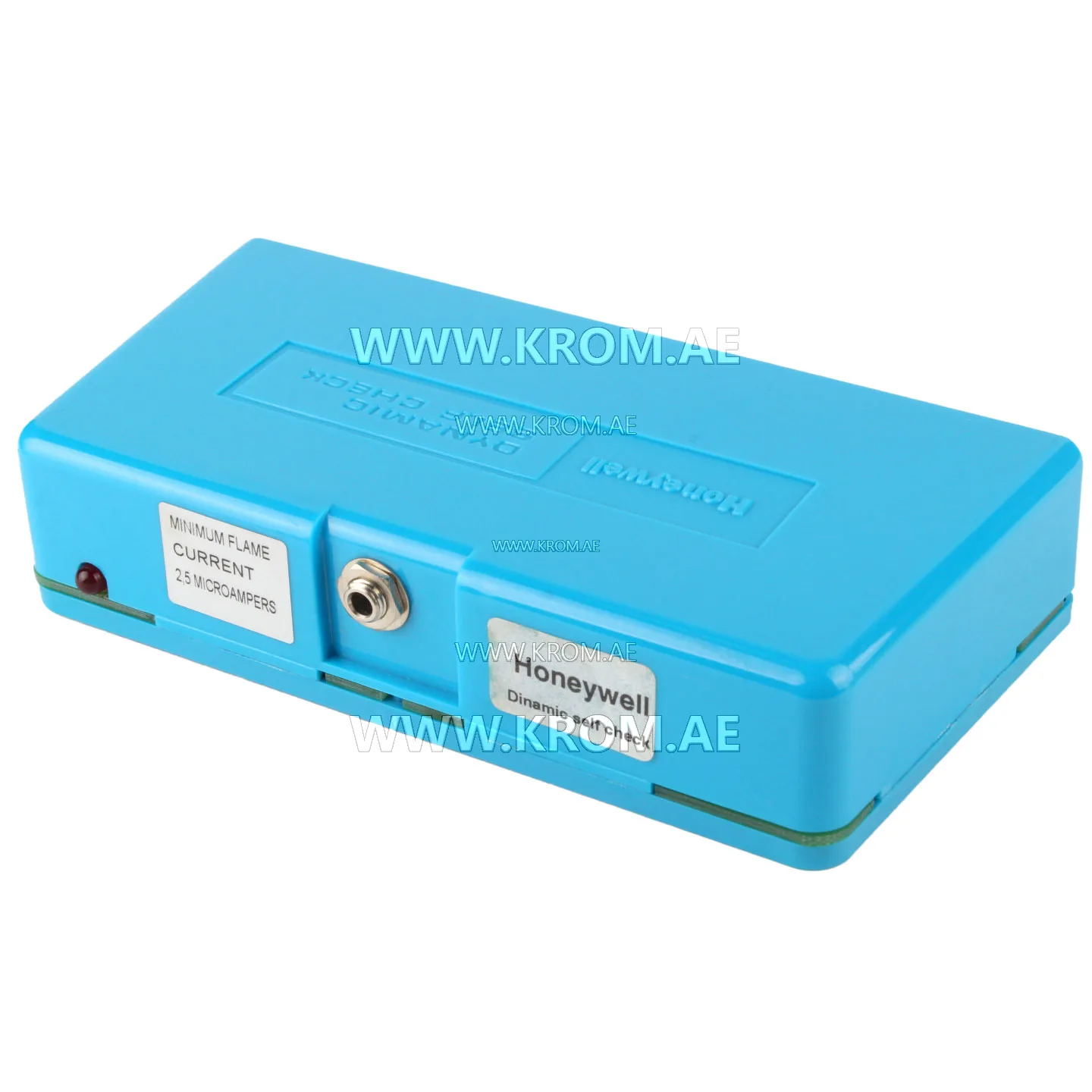

Honeywell R7476B1013 UV ampl c7076 ana ce rt=2s sc

Honeywell R7476B1013 dynamic self-check ultraviolet amplifier is a solid state plug- in unit for use with flame safeguard controls. It is designed to be used only with, the adjustable sensitivity ultraviolet flame detector C7076A, which senses the ultraviolet radiation generated by a flame, in single or multiple burner ap- plications. Honeywell R7476B1013 dynamic self-check ultraviolet amplifier technical data: Operating temperature: -40° to 65°C (-40° to 150°F). Storage conditions: -51° to 65°C (-60° to 150°F). Fire alarm: from 2.5 to 5.5 microamps (measured at the measuring device connector on the R7476A amplifier). Response time: 3 seconds max. Dimensions: 148 mm long, 71 mm wide, 32 mm thick. Weight: 227 g.
