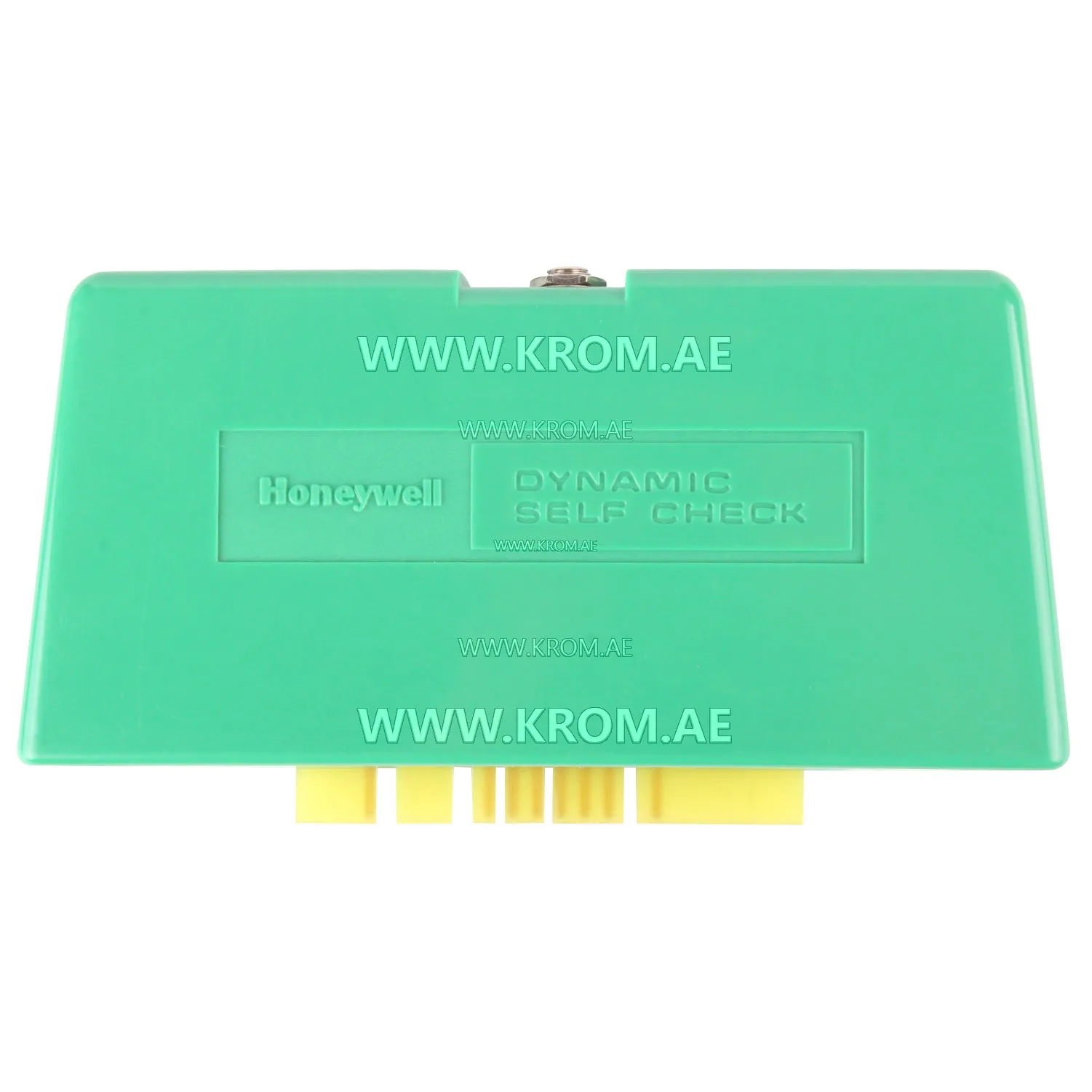

Honeywell R7247B1029 dynamic self-check amplifier

This Honeywell R7247B1029 dynamic self-check amplifier is an industrial controller used in burner management systems. Parts of this type orchestrate the ignition sequence and enforce safety times: pre-purge, ignition, fuel admission, flame proving, and lockout on failure. They read signals from pressure switches and flame detectors, and drive the ignition transformer, fuel valve, and fan. Selection for such components is based on the exact series and type designation, supply voltage, safety and pre-purge times, flame detection method (ionisation, UV, or IR), and the base or plug pattern. A control of this class is normally not interchangeable across series even within the same brand; a mismatched safety time creates a safety hazard, not just a nuisance. The dynamic self-check feature, indicated in the name, refers to a self-testing function that verifies the integrity of the flame detection circuit during operation. When replacing an amplifier of this type, ensure that the replacement matches the original in all electrical and timing parameters, and that the flame detector type is compatible. The catalogue codes are 534.868.044 and R7247B1029.
