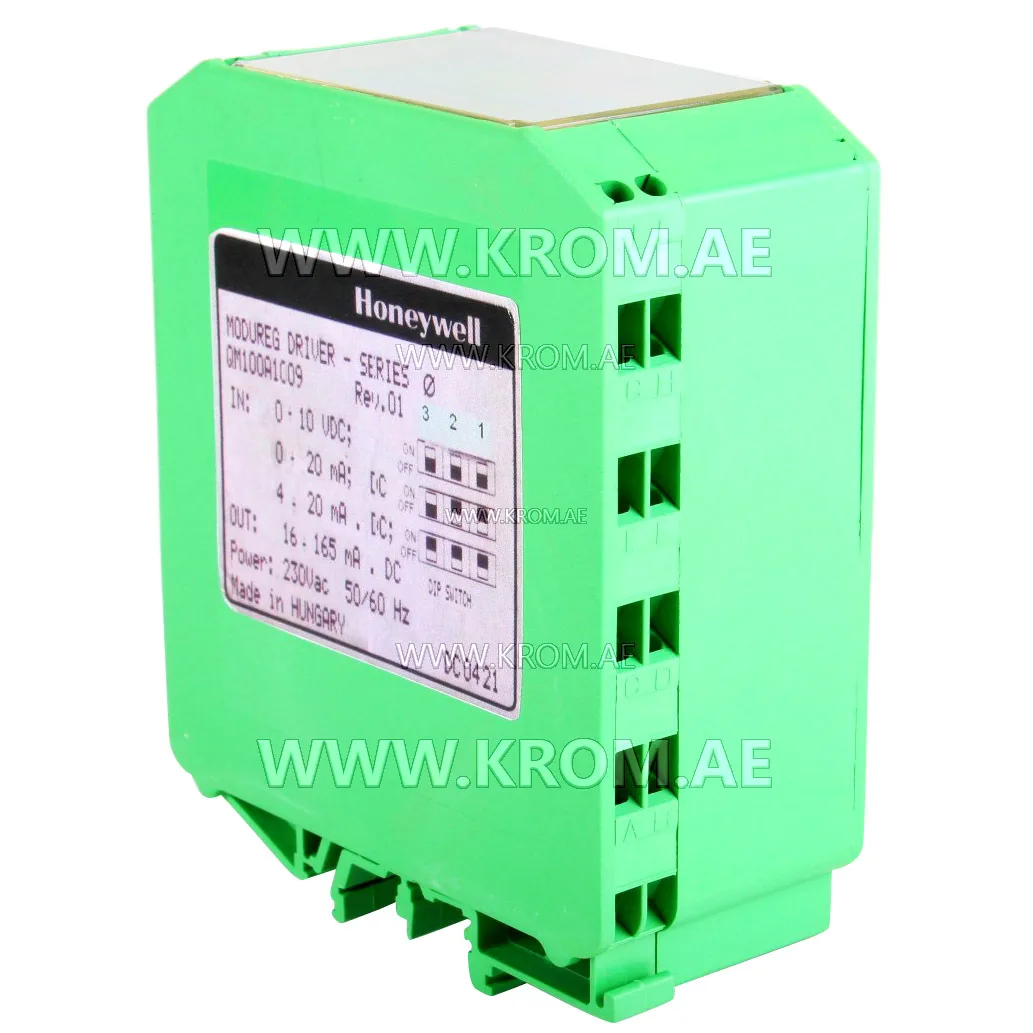

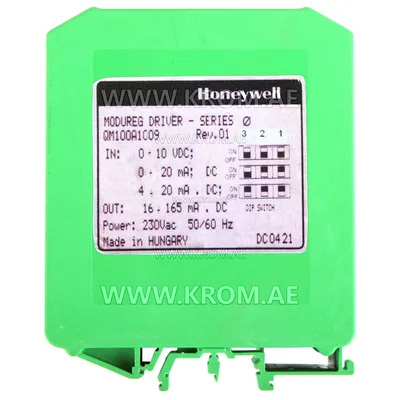

Honeywell QM100A1009 ignition control

The Honeywell QM100A1009 is an ignition control classified under control boxes. As a burner control (flame safeguard), it orchestrates the ignition sequence and enforces safety times: pre-purge, ignition, fuel admission, flame proving, and lockout on failure. It reads signals from pressure switches and the flame detector, and drives the ignition transformer, gas valve or oil solenoid, and fan. This type of control sits at the centre of the burner management system, ensuring that fuel is admitted only when safe conditions are confirmed. Selection for a replacement control of this type requires matching the exact series and type designation, supply voltage, safety and pre-purge times, and the flame detection method (ionisation, UV, or IR). The base or plug pattern must also correspond to the existing wiring. Controls of this nature are normally not interchangeable across series, even within the same brand; a mismatched safety time creates a safety hazard, not just a functional inconvenience. Electronic control boards (PCBs) perform the same role in modern wall-hung boilers but are matched to the specific boiler model and are not directly interchangeable with standalone control boxes. When sourcing a part of this type, verify the appliance’s existing control part number and the required safety times. The control works with the ignition transformer, the flame sensor (ionisation electrode or UV/IR scanner), the burner fan and its air pressure switch, and the fuel valve. No further specification for this article is provided beyond its catalogue codes and brand.
