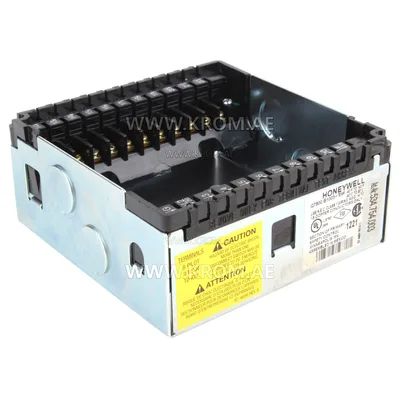

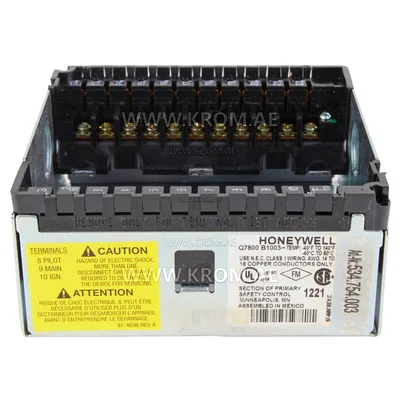

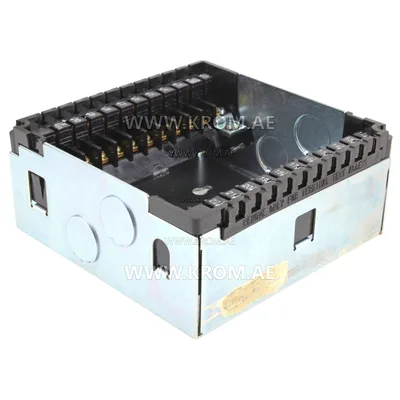

Honeywell Q7800B1003 subbase metal, wall mount

Honeywell Q7800B1003 is a versatile mounting base designed for the 7800 series relay modules and the extended annunciator (S7830A). Honeywell Q7800B1003 universal mounting base includes terminals for connecting peripheral equipment. Electrical connections are made via blade terminals on the 7800 series relay module or the S7830A annunciator, which interface with the split contacts of Honeywell Q7800B 1003 base. Honeywell Q7800B1003 base technical data: Weight: 539 grams Enclosure: NEMA 1 Terminal screw torque: normal 1.36 Nm; maximum 1.47 Nm Honeywell Q7800 B 1003 base certification: Honeywell Q7800B 1003 base recognized by Underwriters Laboratories Inc.: file number MP268, guide number MCCZ2 (Q7800A). Listed: file number MP268, guide number MCCZ (Q7800B). Certified by the Canadian Standards Association: LR95329-3. To meet EN60730 requirements, the Q7800 base must be mounted in an enclosed panel with an IP40 protection rating. Honeywell Q7800B 1003 base accessories: Socket covers for access to electrical parts 221779 (included with Q7800B, purchased separately for Q7800A).
