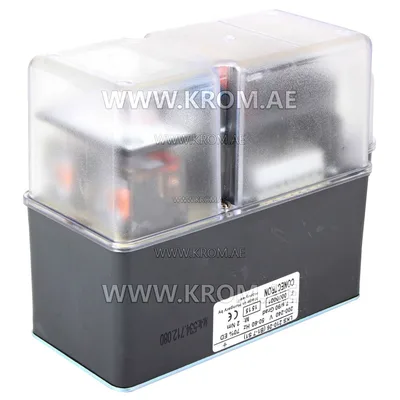

Honeywell LKS210-26 (B1-7S1) actuator

The Honeywell LKS210-26 (B1-7S1) actuator is designed for use in two-stage diesel burners with a fully closed flap. A worm gear with a self-locking function is installed inside the Conectron Honeywell 78-LKS210-26 actuator unit, ensuring reliable operation. The Conectron LKS210-26 (B1-7S1) servo motor does not require regular maintenance, which simplifies its operation. The position of the air damper is adjusted within 90° using levers marked with different color markings. This mechanism provides precise and convenient airflow control. Technical characteristics of the Honeywell Conectron 78-LKS210-26U servomotor: Voltage: 230 V Power consumption: 4 VA 90° adjustment time: 7 seconds Torque: 2 N*m Locking moment: using a self-locking worm gear Air flap position control: simultaneously rotating arrow Body: synthetic material, black, non-flammable, self-extinguishing Cable Gland: 1*PG11 Electrical connection: 2*7-pole terminal boxes, 1 grounding terminal Installation: using three M5 screws Power take-off shaft: inner head with square socket 8x8.20 mm semicircular hole Ø10 mm, shaft depth 25 mm Ø10 mm Protection type: IP 44 DIN 40 050 Ambient temperature: -10 to +60 °C Weight: 1 kg
