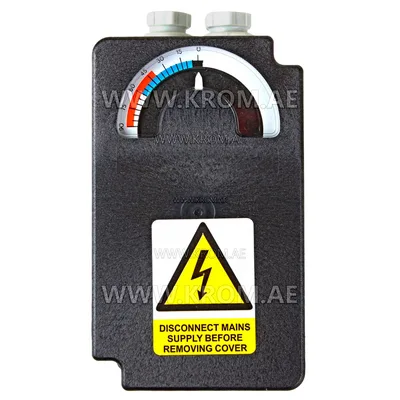

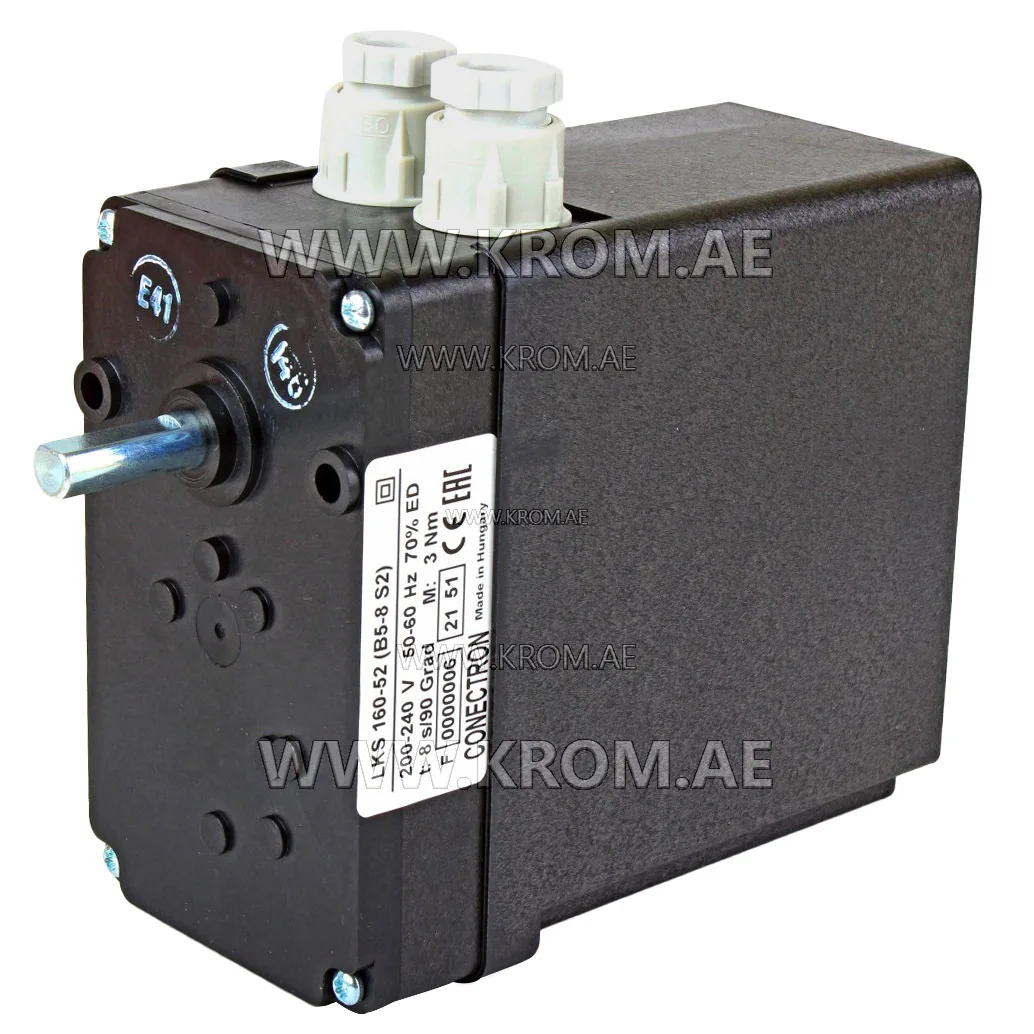

Honeywell LKS160-52 (B5-8S2) actuator

The Conectron 78-LKS160-52U actuator ensures precise control and stable operation of the burner, which improves the efficiency of heating systems, reduces fuel consumption and reduces harmful emissions to the environment. Technical data of the Honeywell LKS160-52 (B5-8S2) actuator Power supply: 230 V Opening time at 90 °: 8 seconds Drive motor: reversible synchronous motor Setting the switching point: stepless adjustment of the cams, cams with lever or spindle drive; when driven from a spindle - with a superimposed scale Position indicator: scale Connection system: terminal blocks Gear transmission: cylindrical transmission, maintenance-free Drive shaft: steel Installation and fastening: it is attached from the inside using through holes with M 5 thread Safety class: II VDE 0631 Power consumption: approximately 4 VA Torque: 3 N*m Duty cycle: depending on the engine, from 50 to 70% in 2 minutes Interference suppression: N (according to VDE 0785) Dust and moisture protection class: IP 44 Weight: 0.6 kg Dimensions: 13x6.2x14.5 cm Operating angle: maximum 90° Mounting position: any Application of the Conectron 78-LKS160-52U servomotor The Honeywell LKS160-52 (B5-8S2) actuator is designed for installation on multistage or modulating liquid fuel burners in a fully closed position. Certificates of Honeywell Conectron LKS160-52 (B5-8S2 ) actuator According to the standards of the European Union 73/23/EU and 93/68/EU, the Conectron Honeywell 78-LKS160-52U servo motor complies with the following standards: EN 60730-1:1991 A1 and A11:1991, EN 60730-2-5:1991.
