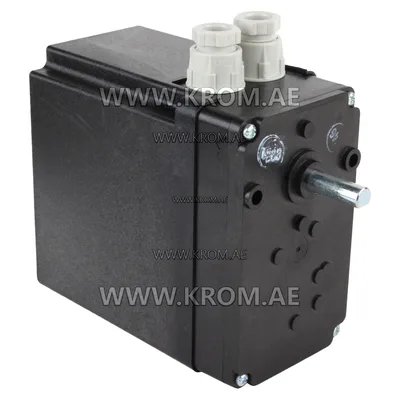

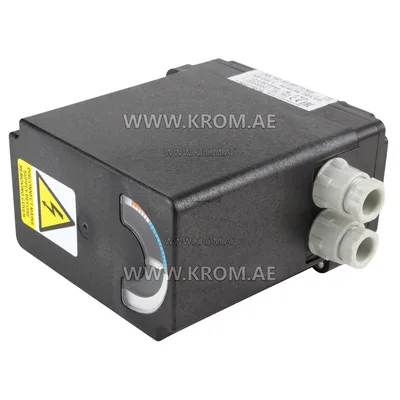

Honeywell LKS160-50 (B5-12S2) actuator

The Honeywell Conectron 78-LKS160-50U servo motor ensures precise control and stable operation of the burner, which allows you to increase the efficiency of heating systems, reduce fuel consumption and reduce harmful emissions to the environment. Thanks to modern technologies and high-quality materials, the Conectron LKS160-50 (B5-12S2) servomotor has a long service life and reliable operation in various operating conditions. Application of the Honeywell LKS160-50 (B5-12S2) actuator The Conectron Honeywell 78-LKS160-50U servomotor is designed for installation on multistage or modulating liquid fuel burners in a fully closed position. Technical data of the Honeywell 78-LKS160-50U servo motor Power supply: 230 V Opening time at 90 °: 12 seconds Drive motor: reversible synchronous motor Setting the switching point: stepless adjustment of the cams, cams with lever or spindle drive; when driven from a spindle - with a superimposed scale Position indicator: scale Connection system: terminal blocks Gear transmission: cylindrical transmission, maintenance-free Drive shaft: steel Installation and fastening: it is attached from the inside using through holes with M 5 thread Safety class: II VDE 0631 Power consumption: approximately 4 VA Torque: 3 N*m Duty cycle: depending on the engine, from 50 to 70% in 2 minutes Interference suppression: N (according to VDE 0785) Dust and moisture protection class: IP 44 Weight: 0.6 kg Dimensions: 13x6.2x14.5 cm Operating angle: maximum 90° Mounting position: any Certificates of the Conectron 78-LKS160-50U actuator According to the standards of the European Union 73/23/EU and 93/68/EU, the Honeywell LKS160-50 (B5-12S2) servo motor complies with the following standards: EN 60730-1:1991 A1 and A11:1991, EN 60730-2-5:1991.
