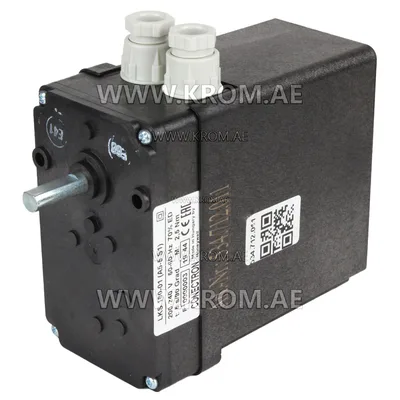

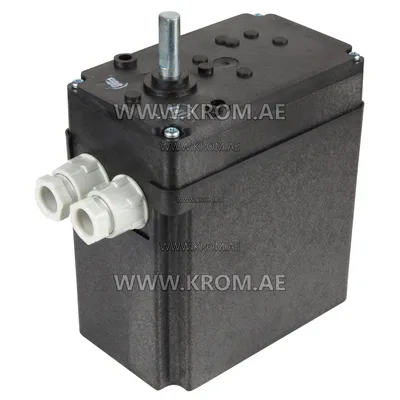

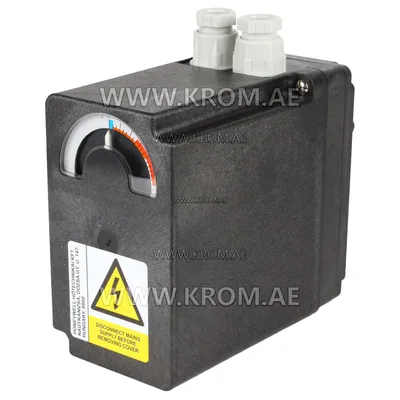

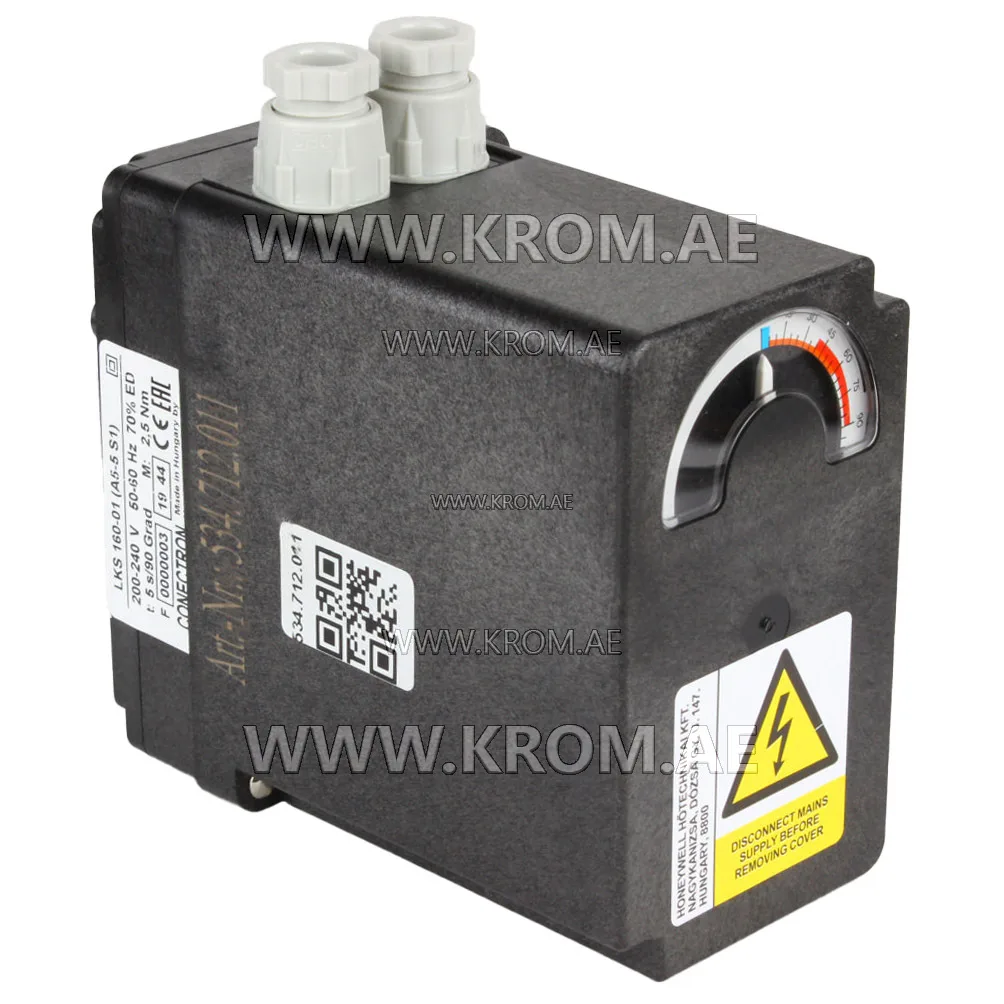

Honeywell LKS160-01 (A5-5S1) actuator

The Conectron Honeywell LKS160-01 (A5-5S1) servo motor is designed for installation on multistage or modulating gas and oil burners in a fully closed position. Technical data of the Honeywell LKS160-01 (A5-5S1) actuator Type of flap: air Power supply: 230 V Opening time at 90 °: 5 seconds Torque: 2.5 N*m Dust and moisture protection class: IP 44 Weight: 0.6 kg Dimensions: 13x6.2x14.5 cm Drive motor: reversible synchronous motor Setting the switching point: stepless setting of the cams, cams with lever or spindle drive; when driven from a spindle - with a superimposed scale Position indicator: scale Connection system: terminal blocks Gear transmission: cylindrical transmission, maintenance-free Drive shaft: steel Installation and fastening: it is attached from the inside using through holes with M 5 thread Safety class: II VDE 0631 Power consumption: approximately 4 VA Duty cycle: depending on the engine, from 50 to 70% in 2 minutes Interference suppression: N (according to VDE 0785) Operating angle: maximum 90° Mounting position: any Certificates of the Conectron 78-LKS160-01 servomotor According to the standards of the European Union 73/23/EU and 93/68/EU, the Conectron LKS160-01 (A5-5S1) actuator complies with the following standards: EN 60730-1:1991 A1 and A11:1991 EN 60730-2-5:1991
