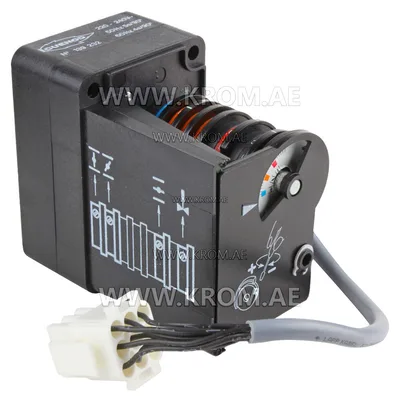

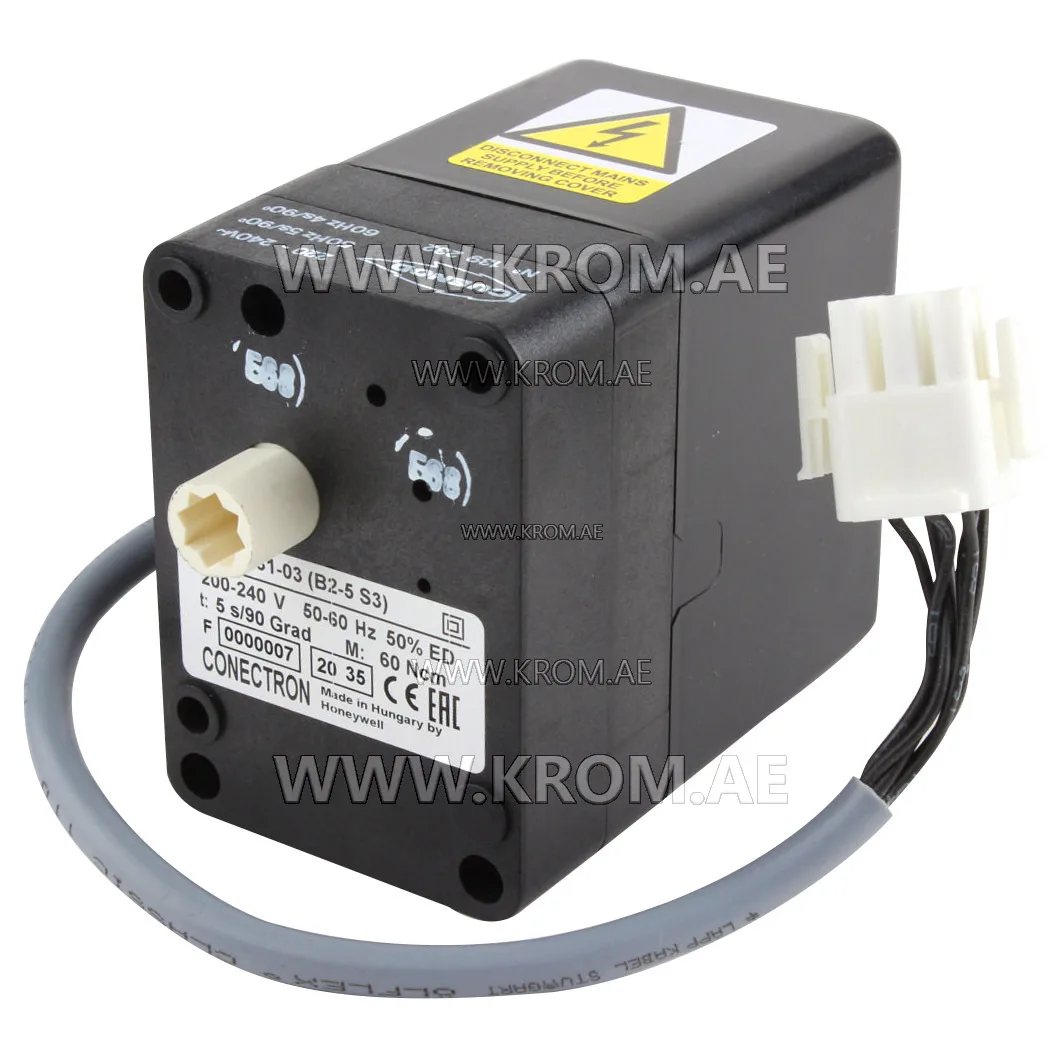

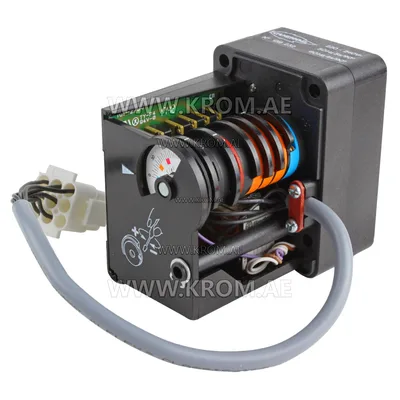

Honeywell LKS131-03 (B2-5S3) actuator

The Conectron LKS131-03 (B2-5S3) servomotors are designed for installation on multistage or modulating diesel burners in a fully closed position. Design and operating principle of the Conectron 78-LKS131-03U servo motor The synchronous motor drives the output shaft and camshaft without backlash through a gear reducer. The camshaft drives the limit switches and auxiliary switches. The position at which one of the limit or auxiliary switches is triggered can be smoothly adjusted within the operating range using the appropriate cam disc. There are spindle-driven cams that can be adjusted with a screwdriver. Technical characteristics of the Honeywell LKS131-03 (B2-5S3) actuator Type of flap: air Power supply: 200 V - 240 V Opening time at 90 °: 5 seconds Torque: 60 N*m Power consumption: 9 VA Dust and moisture protection class: IP 40 Weight:0.5 kg Dimensions:10x6x8.5 cm Drive motor: reversible synchronous motor Adjustment of the switching point: by means of stepless adjustment of the cam driven by the spindle of the cam with superimposed scale Position indicator: using a jointly rotating scale (under the lid) Connection system: fixed cable connection with 9-pin connector Gear transmission: cylindrical transmission, maintenance-free Output shaft: standard plastic, inner square 8mm Installation and fastening: it is attached from the inside using through holes with M 5 thread Printed circuit boards: increased conductor thickness for all electrical functions C ompliance with the standards of the Honeywell LKS131-03 (B2-5S3 ) servo motor The Conectron 78-LKS131-03 actuator is manufactured in accordance with EU Directives 73/23/EU and 93/68/EU. The Honeywell Conectron LKS131-03 (B2-5S3) servo motor also complies with EN 60730 – 1: 1991 A1 and A11: 1991 EN 60730 – 2 – 5: 1991.
