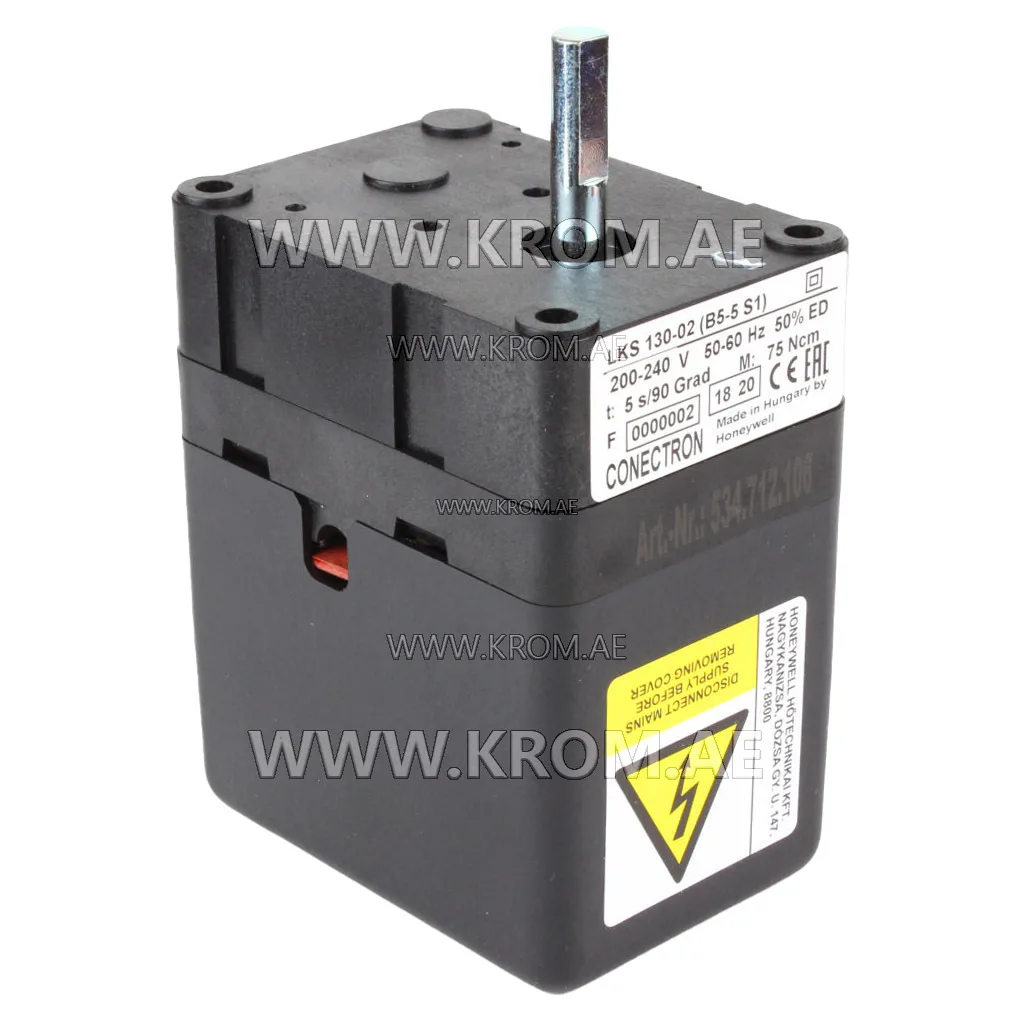

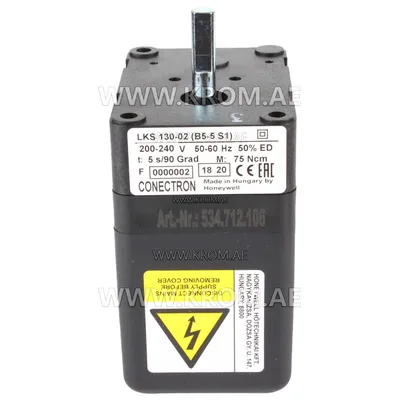

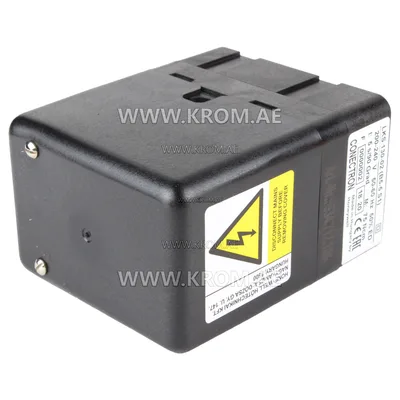

Honeywell LKS130-02 (B5-5S1) actuator

The Honeywell LKS130-02 (B5-5S1) actuator adjusts the air and gas mixture, providing the optimal ratio for efficient combustion and maximum heat transfer. It plays a key role in ensuring the efficiency of the system by controlling the mixture that is used in the combustion process. This 78-LKS130-02 servomotor is an important component that guarantees the optimal functioning of heating systems or other processes where control over the mixture of gas and air is required. The main characteristics of the Honeywell 78-LKS130-02 servo motor include: Flap type: air Supply voltage: 220V 90° opening time: 5 seconds Torque: 75 N·m Power: 9W Dust and moisture protection class: IP31 The ability to program the opening time by 90 ° Weight: 0.55 kg Dimensions: 8.5x6x13.2 cm
