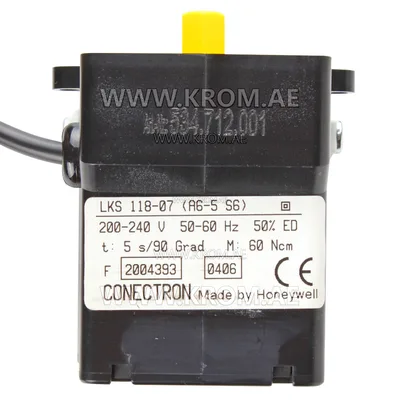

Honeywell LKS118-07 (A6-5S6) actuator

The Honeywell LKS118-07 (A6-5S6) servo motor is designed for installation on small burners with simple air damper control. Conectron 78-LKS118-07 technical specifications Shaft: No 3 Driving time: 5 seconds Load moment: 0.6 N*m Holding torque: 0.4 N*m Voltage: 230 V Drive motor: reversible synchronous motor Setting the switching point: using a stepless limit switch Position indicator: missing Connection system: fixed connection of 3 or 4-wire cable, cable length approximately 50 cm Gear transmission: cylindrical transmission, maintenance-free Output shaft: connects to a round shaft up to 6 mm in diameter with a bevel up to 5 mm. The position of the output shaft can be easily adjusted by turning the gear wheel manually Network frequency: 50 Hz or 60 Hz Safety class: II VDE 0631 Power consumption: 9 VA Duty cycle: 50% in 2 minutes Interference suppression: N (according to VDE 0785) Operating angle: maximum 130° Protection: IP 00 (DIN 40050) Ambient temperature during operation: 0 ... +60° C Ambient temperature during transportation and storage: -20 ... +60° C Weight: 350 g Honeywell LKS118-07 actuator standards and certification The Honeywell LKS118-07 (A6-5S6) 78-LKS118-07U servo is manufactured in accordance with EU Directives 73/23/EU and 93/68/EU. The Honeywell Conectron 78-LKS118-07U actuator also complies with EN 60730 – 1: 1991 A1 and A11: 1991 EN 60730 – 2 – 5: 1991.
