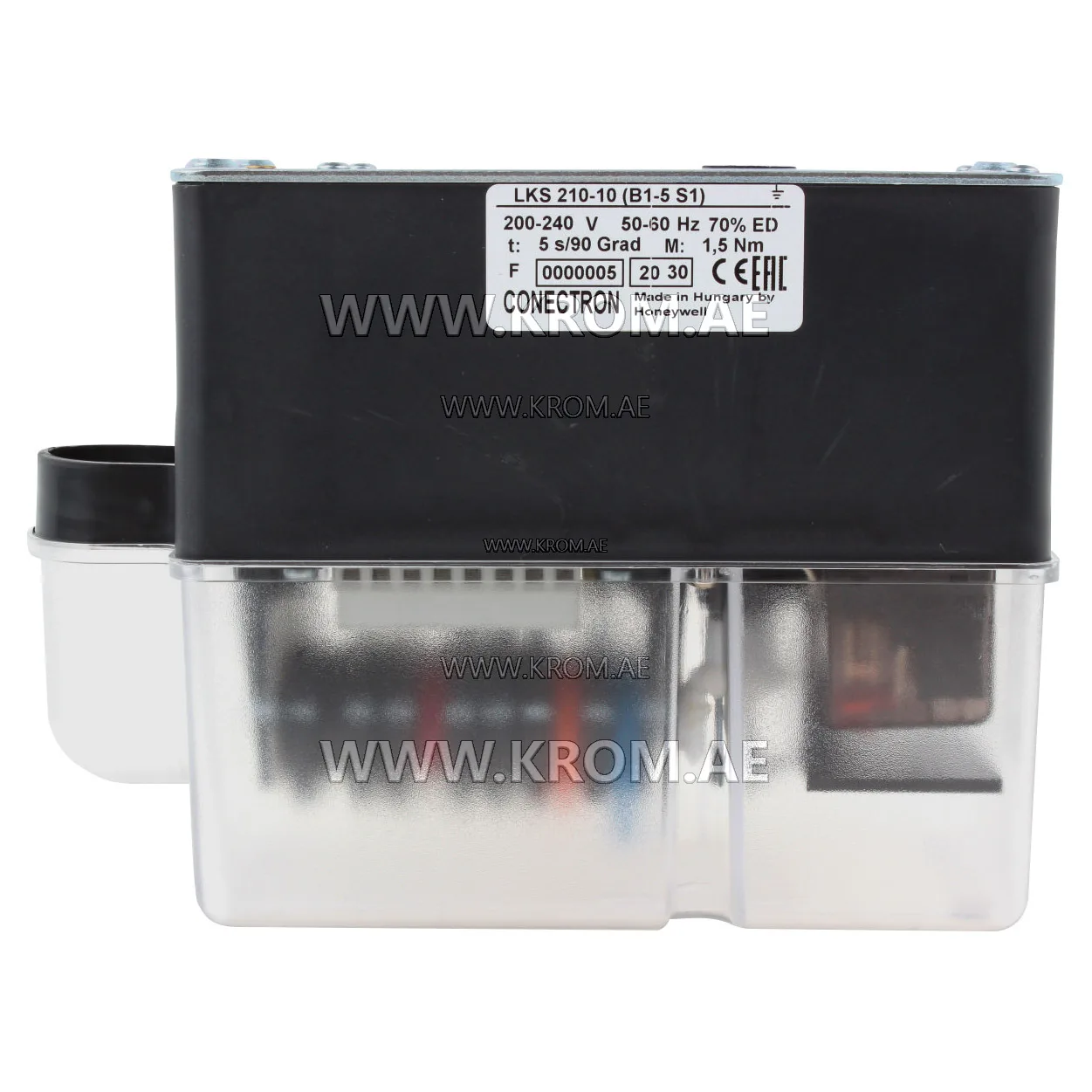

Honeywell LKS210-10 (B1-5S1) actuator

The Honeywell 78-LKS210-10 servomotor is designed for two-stage diesel burners with a fully closed flap. The Conectron Honeywell 78-LKS210-10U actuator unit contains a worm gear with a self-locking function. The Conectron LKS210-10 (B1-5S1) servo motor is maintenance-free. The air damper is adjusted within 90° using levers of various color markings. Technical characteristics of the Honeywell Conectron 78-LKS210-10U actuator: Voltage: 230 V Power consumption: 4 VA 90° adjustment time: 5 seconds Torque: 1.5 N*m Locking moment: using a self-locking worm gear Air flap position control: simultaneously rotating arrow Body: synthetic material, black, non-flammable, self-extinguishing Cable Gland: 1*PG11 Electrical connection: 2*7-pole terminal boxes, 1 grounding terminal Installation: using three M5 screws Power take-off shaft: inner head with square socket 8x8.20 mm semicircular hole Ø10 mm, shaft depth 25 mm Ø10 mm Protection type: IP 44 DIN 40 050 Ambient temperature: -10 to +60 °C Weight: 1 kg
