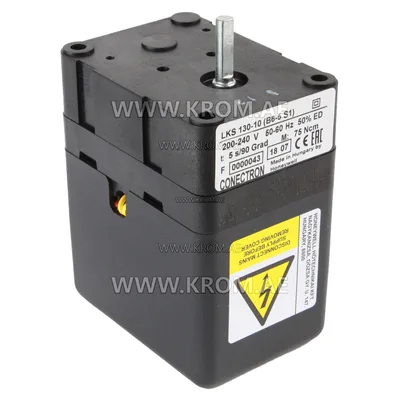

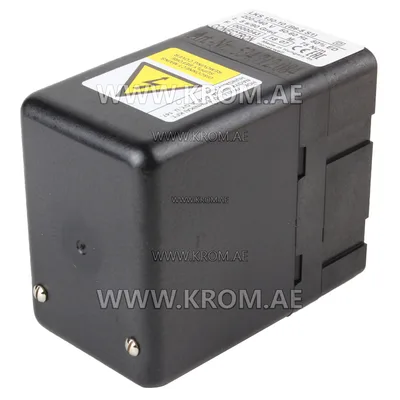

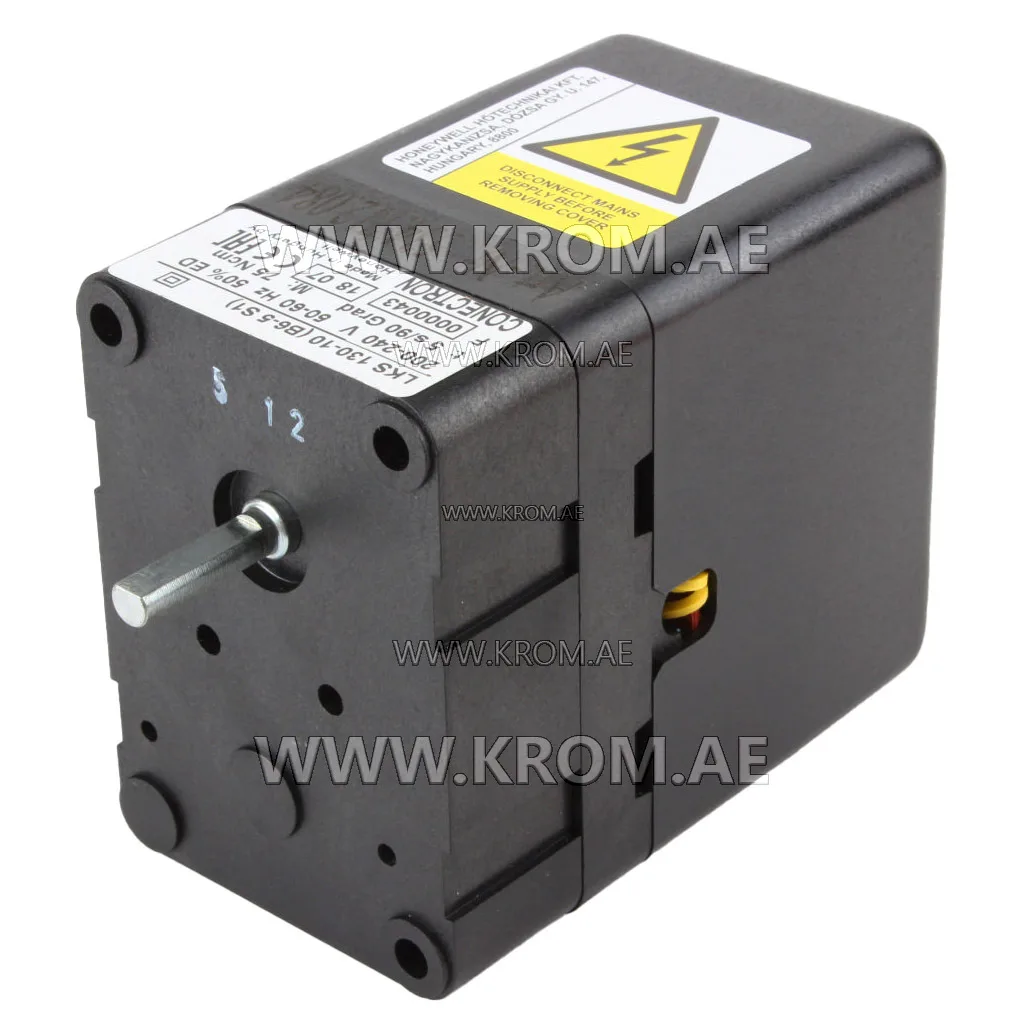

Honeywell LKS130-10 (B6-5S1) actuator

This is a Honeywell LKS130-10 (B6-5S1) actuator, listed under catalogue article 534.712.084. It belongs to the category of actuators that position air dampers or mixing valves by converting a control signal into rotational movement. Actuators of this type are used in burner, boiler, and heating systems to modulate airflow or fluid flow. The selection of such an actuator depends on several key parameters: the required torque, the running time (speed of rotation), the type of control signal it accepts (commonly three-point, 0–10 V, or on/off), the shaft or coupling pattern, the angle of rotation, and the presence of integral auxiliary switches for feedback or safety interlocks. When replacing an actuator, ensure that these specifications match the existing installation. Typical failure modes for actuators include a stripped gear train, a failed end switch, or a seized valve stem, particularly if the valve has remained stationary for a prolonged period. In systems using three-way or four-way mixing valves, the valve body and the actuator motor are often separate spare parts; this actuator may serve as the drive for such a valve, but compatibility must be verified against the valve's interface and torque requirements.
